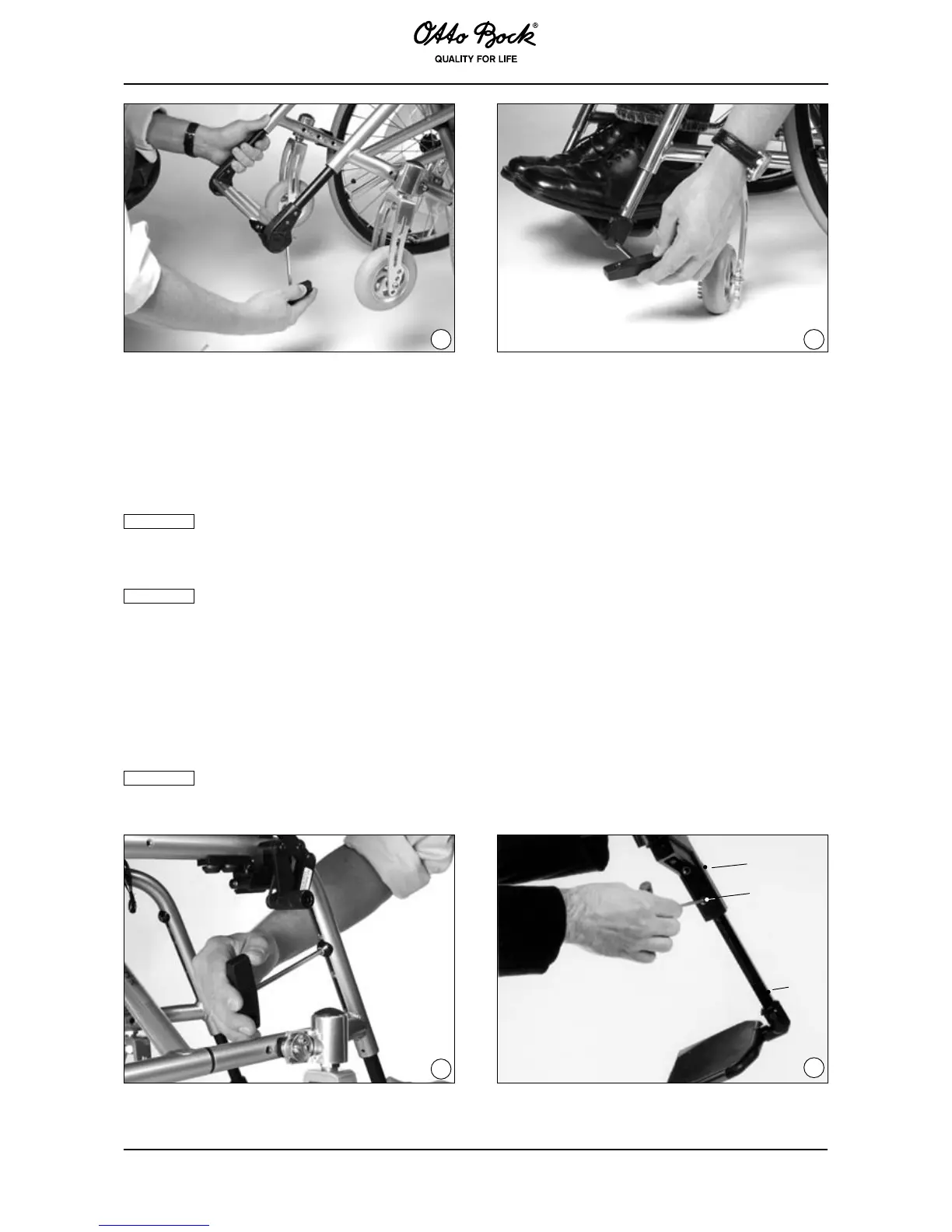

6.7 Adjusting the Footrest (Fig. 68-69)
(Fig. 68)
By loosening the screw at the footrest bar (Fig. 68), the footplate can be continuously adapted
to your lower leg length and to the thickness of your seat cushion.
Loosen the screw – do not completely remove the screw. There are two threaded
holes in the footrest bar. Depending on the desired adjustment, however, it may be necessary
to completely remove the screw and use the second hole.
Make sure to rmly retighten all screws and nuts after making adjustments. The torque
for the cap screws is .
(Fig. 69)
By loosening the screw (Fig. 69, item A), the footplate can be adapted to your lower leg length
and to the thickness of your seat cushion.
Make sure when adjusting the footrest height, that the footrest bar (Fig. 69, item A) is slid into
the swivel segment (Fig. 69, item C) at least .
Make sure to rmly retighten all screws and nuts after making adjustments. The torque
for the screw (Fig. 69, item A) is .
68
69
C
A
B
