Page 16
Service Instructions B500
Settings/substitution/replacement

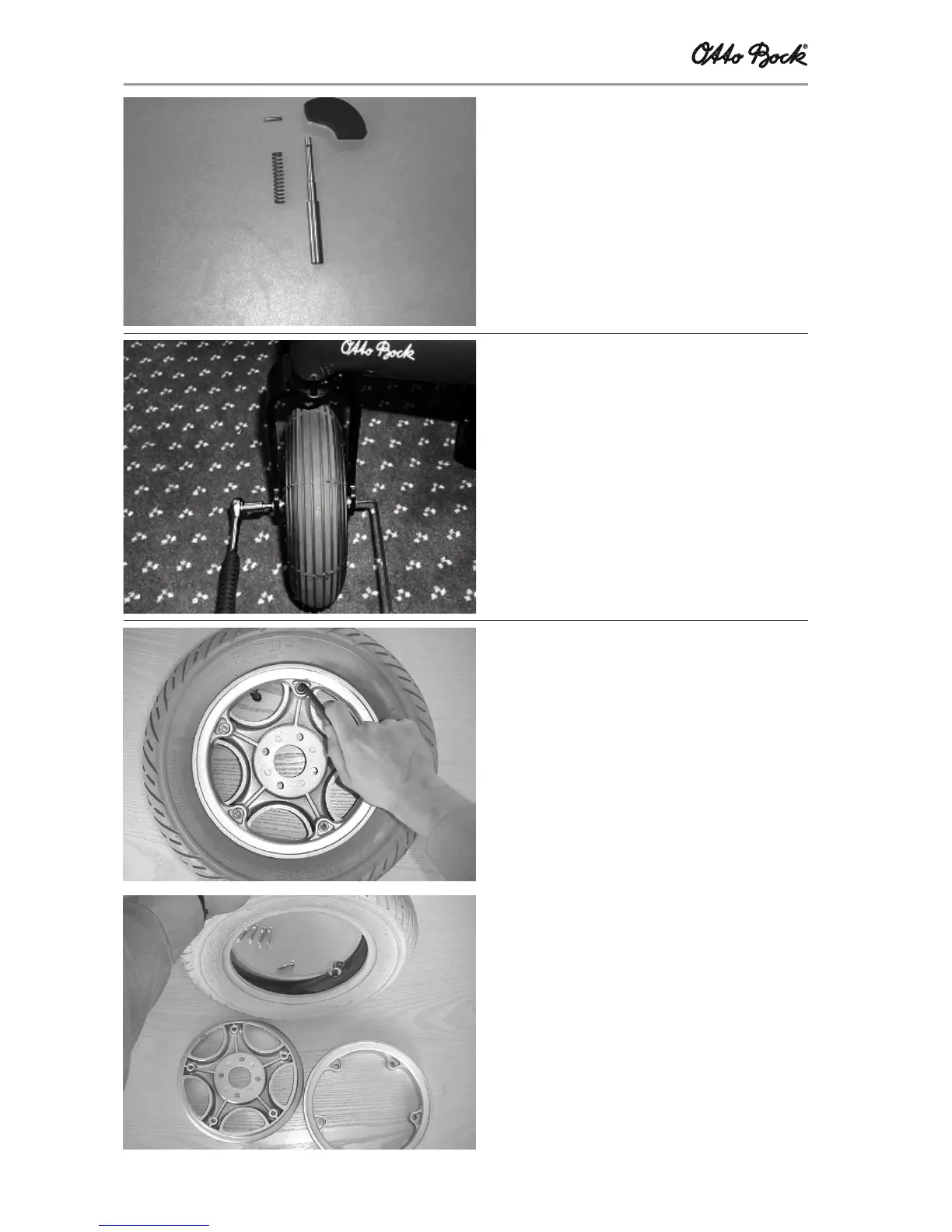

Replacing or removing the handlebar lock
Removal:
- Use a pin punch to remove the cotter pin at
the top of the locking device (locking bolt and
spring will fall out below)
Installation:
- Slip the spring on the thin bolt end, and insert
spring and bolt from below into the borehole
- Set the bolt on the catch lever, and secure it
with the cotter pin
Replacing or removing the handlebar
- Use suitable objects, e.g., wood blocks to
secure the front frame part against overturning
or slipping.
The wheel must rotate freely.
- Use two size 5 Allen wrenches to remove
or install the handlebar
Replace the outer cover or the inner tube of
pneumatic tires
Caution!
Replace the outer cover whenever the tread
pattern is worn out, cracked or damaged.
Removal:
- Deflate the tire
- Unscrew all screws using an Allen key
The B600 has a divisible rim.
- Loosen the screws, separate the rim, and
replace either the inner tube or the outer
cover
- Replace the tube, or repair it using a com-
mercially available bicycle tire repair set
