Page 31
Service Instructions B500
Settings/substitution/replacement
4.4.1.12 Foot notch

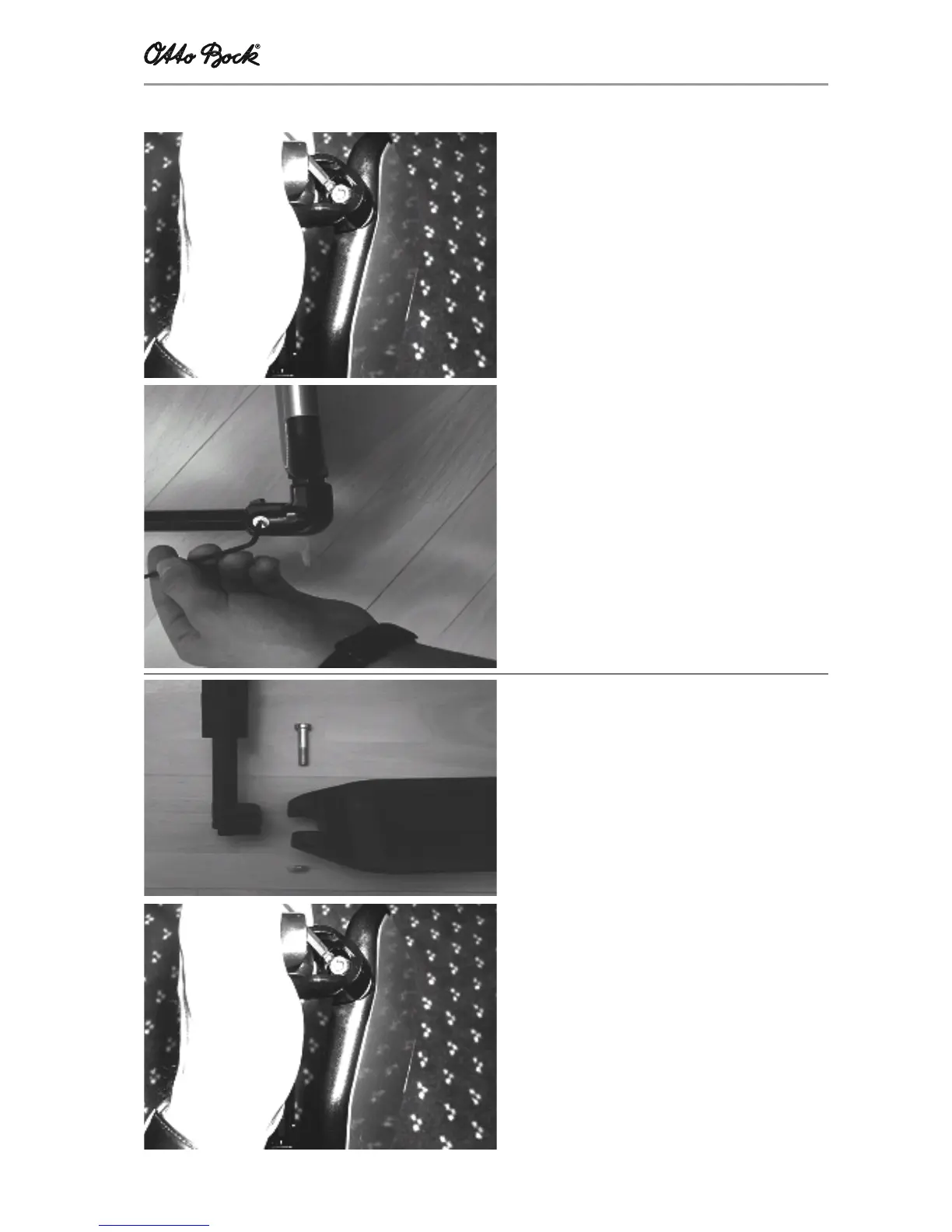

Replacing the assembly accessories
Removal:
- Undo the screw which connects the assem-
bly set to the foot board
- Undo both countersunk head screws using
two Allen wrenches
- Separate the assembly set from the foot
support tube
Installation:
- Position the assembly set onto the foot
support tube
- Tighten both countersunk head screws using
two Allen wrenches
- Tighten the screw which connects the
assembly set to the foot board
Replacing and installing the foot board
Removal:
- Undo the screw which connects the foot
board and the assembly set
Installation:
- Tighten the screw which connects the foot
board and the assembly set
