Service Instructions B500
Settings/substitution/replacement
Replacing the subframe

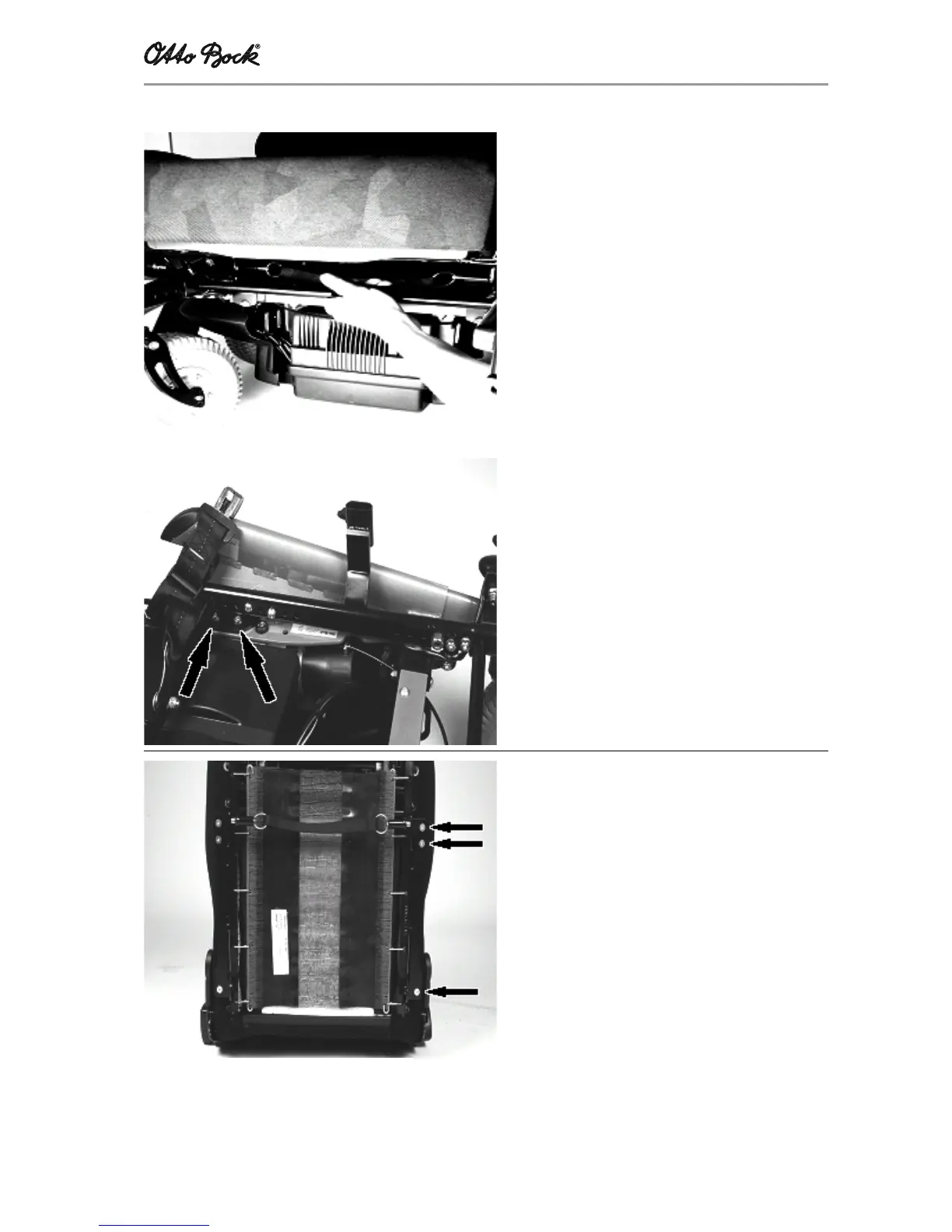

- Pull the lock under the seat, slightly lift the
seat, and push it toward the back
- Remove the seat
- Unscrew the front and rear seat lugs at the
frame
- Remove both parts of the Recaro subframe
Seat support
The Recaro seat support is screwed to the bottom
of the seat
- Unlock and remove the seat
- Lay down the seat, and unscrew the three
screws on every side of the seat support
using an Allen wrench
4.4.1.9 Recaro seat
