Service Instructions B500
Settings/substitution/replacement

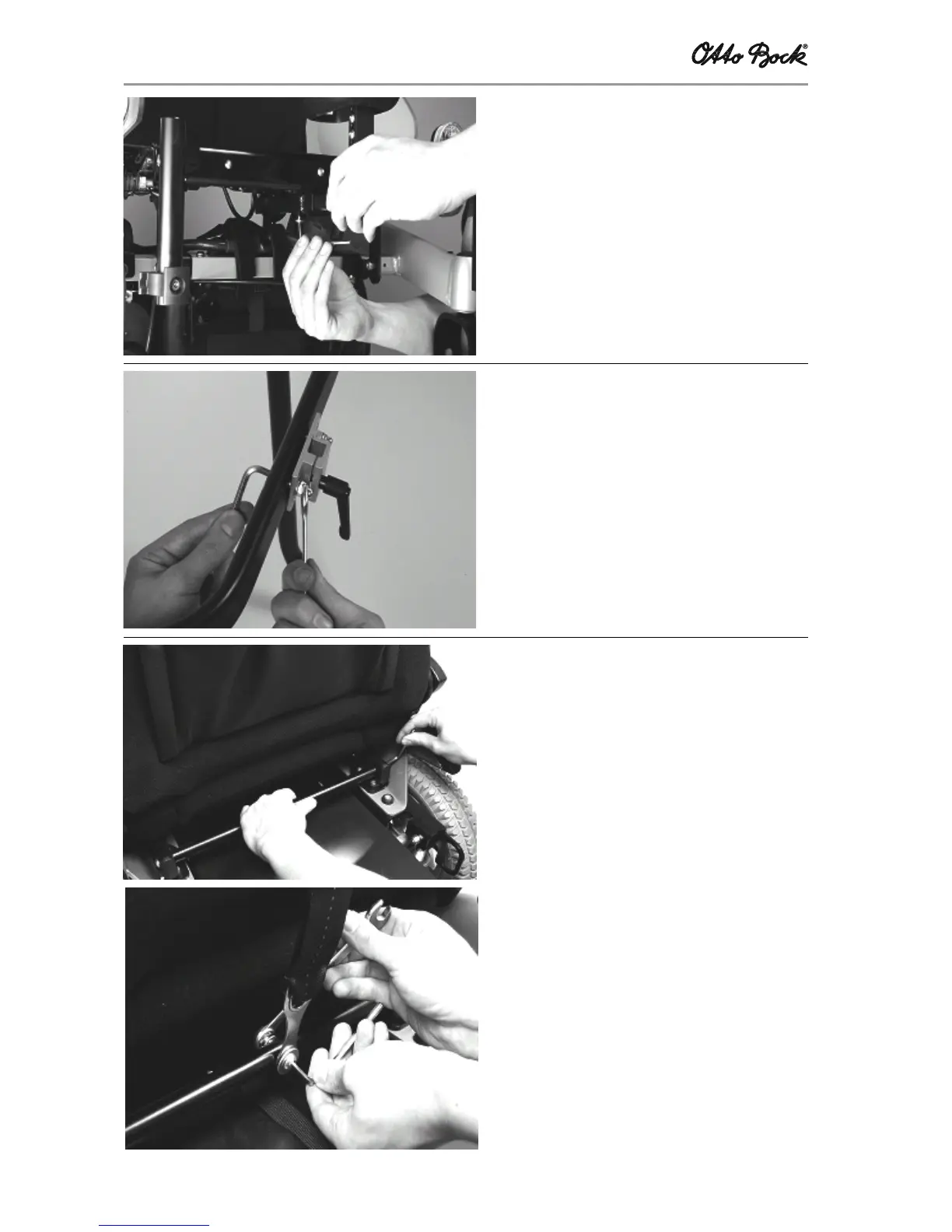

Installing the assembly set for the head rest
fastening
The head rest support is mounted to the back
frame. It is secured to the back tube using two
screws.
A round back tube will require an adapter plate to
compensate for the round form (to be ordered on a
separate basis). The boreholes are already pre-
drilled.
Installing or retrofitting a safety belt (only for
Recaro seats)
- Screw the crossbar to the rear seat frame
- Secure the single belt end at this crossbar:
- Bend to open the two eyes until they fit over
the bar
- Insert a screw through the eyes and
through the borehole at the centre of the
bar, and tighten the screw
- Insert the abduction wedge support into the
retainer
- Screw the abduction wedge to the desired
position
