10
OutBack Power Systems Inc.
Use up to 2 AWG
wire and torque to
30-inch pounds at
terminals.
MATE/HUB
RJ45 jack
If attaching to
plywood, use a 1
5/8” wood screw to
secure the MX60 at
the top slotted hole
and other screws as
needed at interior
bottom holes.
PV+ PV- BAT- BAT+
Four-Position Terminal Block
Chassis/Equipment
Ground Lug
Programmable AUX
Output Jack (supplies
up to 200mA @ 12 VDC
Battery Remote Temp
Sensor (RTS) RJ11 jack
The PV (-) and BAT (-) terminals are connected internally. Only one negative wire may be needed
to connect to the Four-Position Terminal Block if the PV - and BAT- conductors are bonded at the
negative bus bar. See Figures 2 and 3 for sample wiring diagrams.

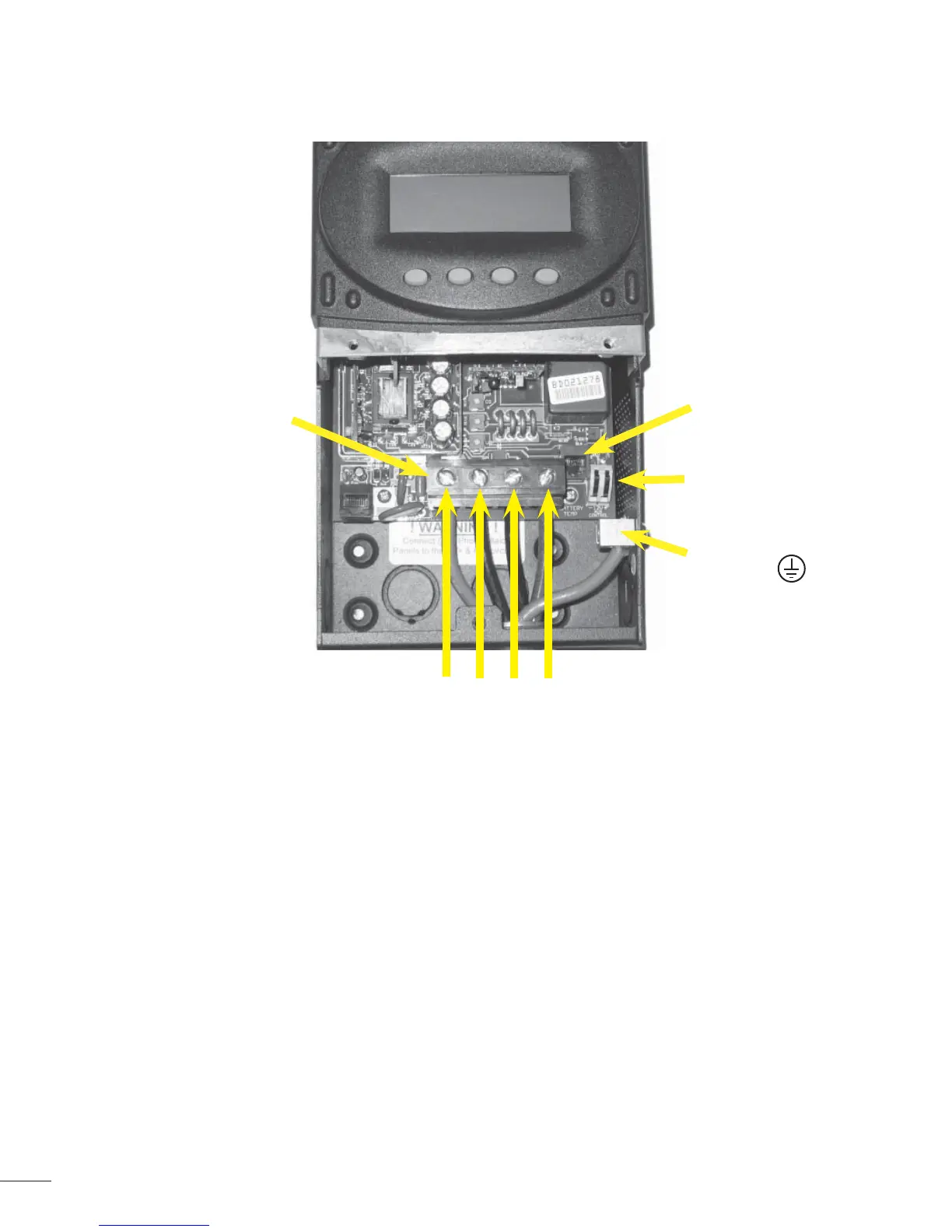

Figure 1 Field Wiring Connections and Surge Protection
