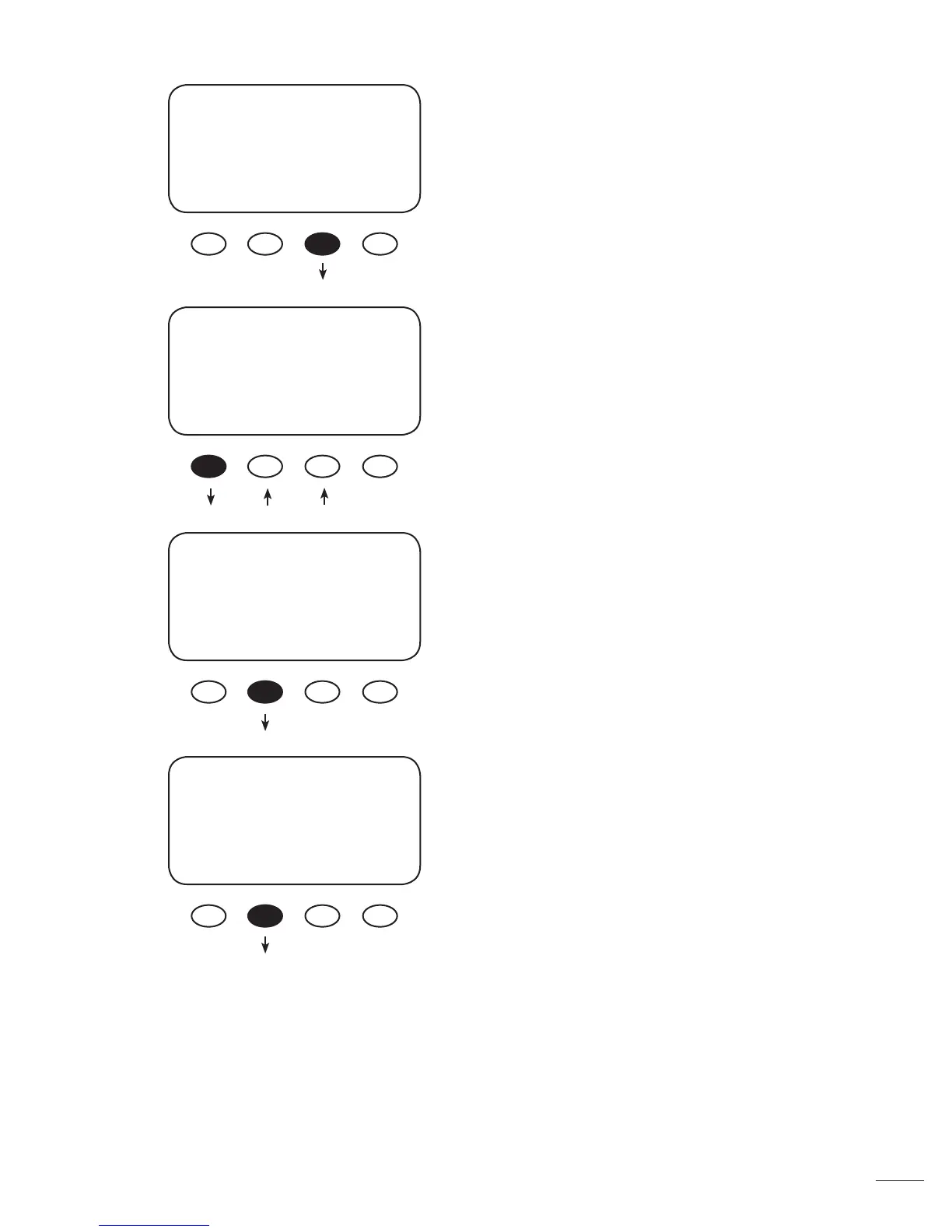

To adjust the minimum amount of time the PV volt-
age must remain high before deactivating the AUX
MODE, press the <TIME> soft key.
Press the < - > or the < + > soft key to adjust the
Hold Time, then press the <BACK> soft key to return
to the PV Trigger screen. In this example, the AUX
MODE will remain active for 1.1 sec after the PV volt-
age is below the PV Trigger voltage before deactivat-
ing the PV Trigger and reconnecting to the array.
Press the <NEXT> soft key to view the Float screen.
The AUX MODE is active when the MX60 is in Float
and producing power. Press the <NEXT> soft key to
advance to the ERROR ALARM screen.
AUX MODE
PV Trigger
On
EXIT NEXT TIME VOLT
Hold Time Sec
01.1
BACK - +
AUX MODE
PV Trigger
Off
EXIT NEXT TIME VOLT
AUX MODE
Float
Off
EXIT NEXT
