Outback CD100 User Manual

6
3

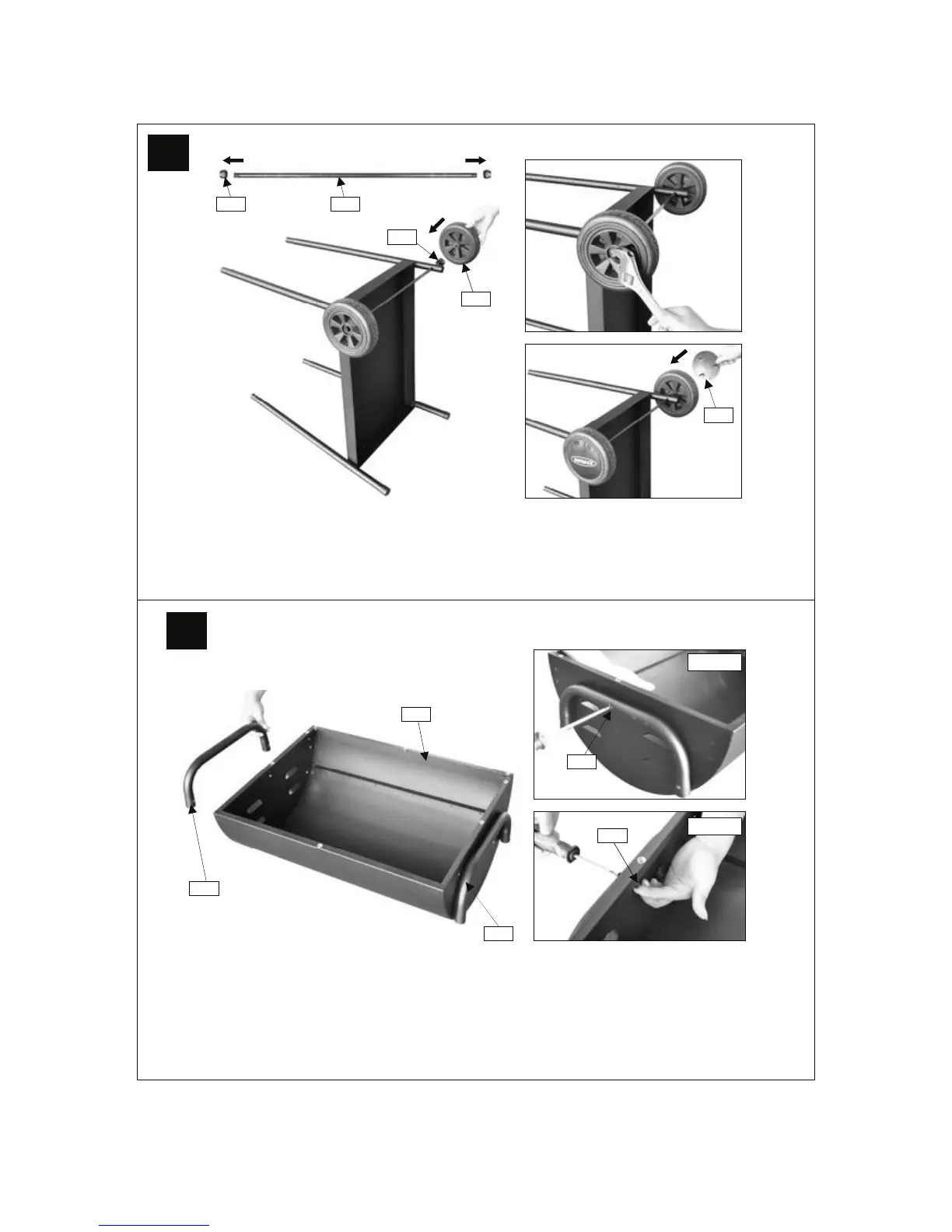

Unscrew the Locknuts (C8) from both ends of the Axle (C9).
Slide the axle through the corresponding holes in the left legs. Slide the Axle Spacer (C7) and the
Wheels (C10) over each end of the axle. Secure the wheels into place with the locknuts. Place
the Wheel Hubcaps (C11) onto the outside of the wheels.
Attach a Upper Bracket (B2) onto the Barbecue Body (B1) using the M6x35 Bolt (D2) and M6 Nut
(D3). Repeat above process for other upper bracket.
4
C10
C7
C11
C9 C8
Inside
Outside
D2
D3
B1
B2
B2
