Outback CD100 User Manual

8
7
8

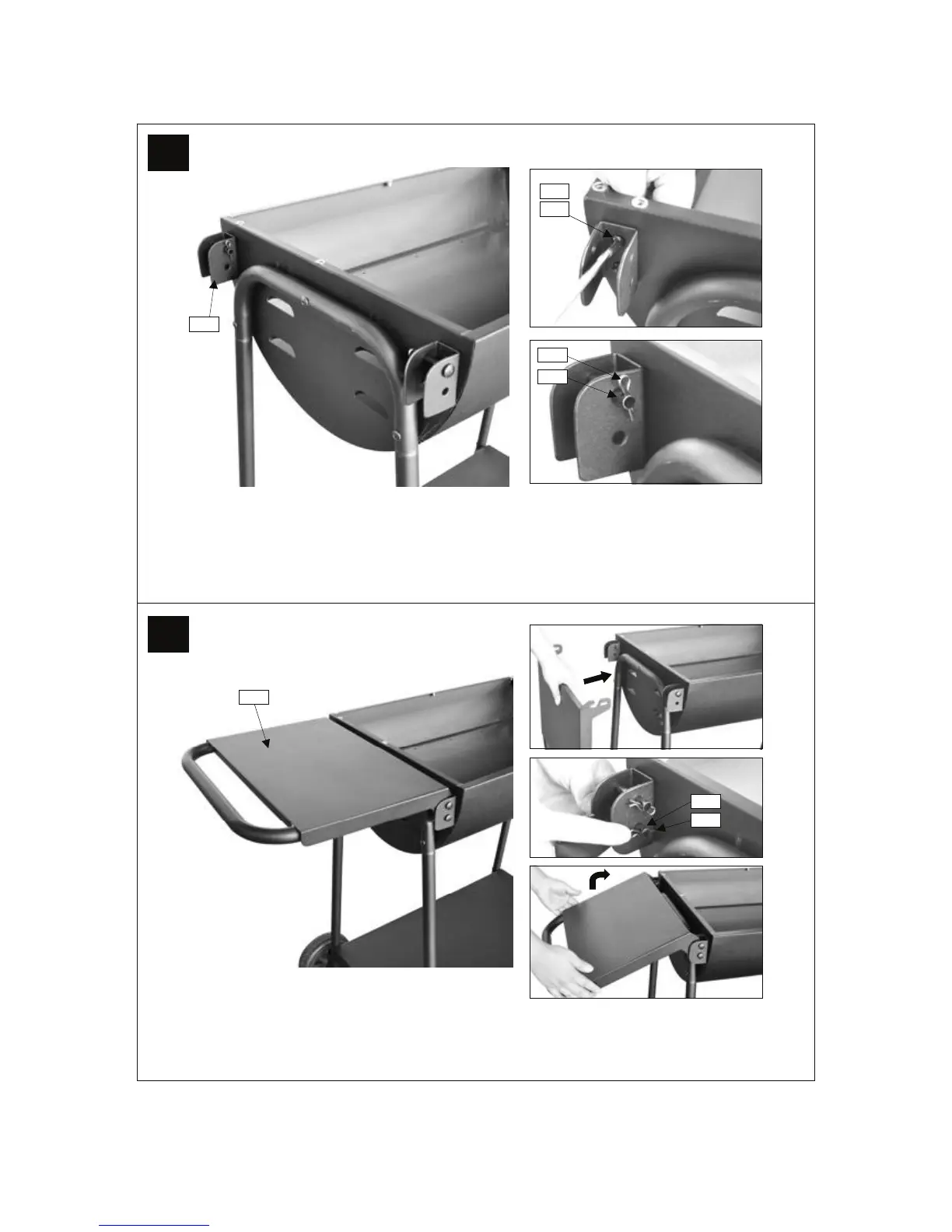

Attach a Side Shelf Bracket (B6) onto the Barbecue Body (B1) using the M6x15 Bolts
(D1x2pcs) and M6 Nuts (D3x2pcs). Slide the Side Shelf Pin (D5) through the upper fixing
hole in Side Shelf Bracket(B6), and secure with a R Shape Clip (D4) as shown. Repeat above
process for other side shelf bracket.
Attach the Side Shelf (B5) to the barbecue using the Side Shelf Pins (D5x2pcs) and R Shape
Clips (D4x2pcs) as shown.
Hook the shelf onto the upper pins to extend it to its normal horizontal position.
D1
B6
D4
D3
D5
D5
D4
B5
