Outback CD100 - Assembly Steps 11 & 12

10
11
12

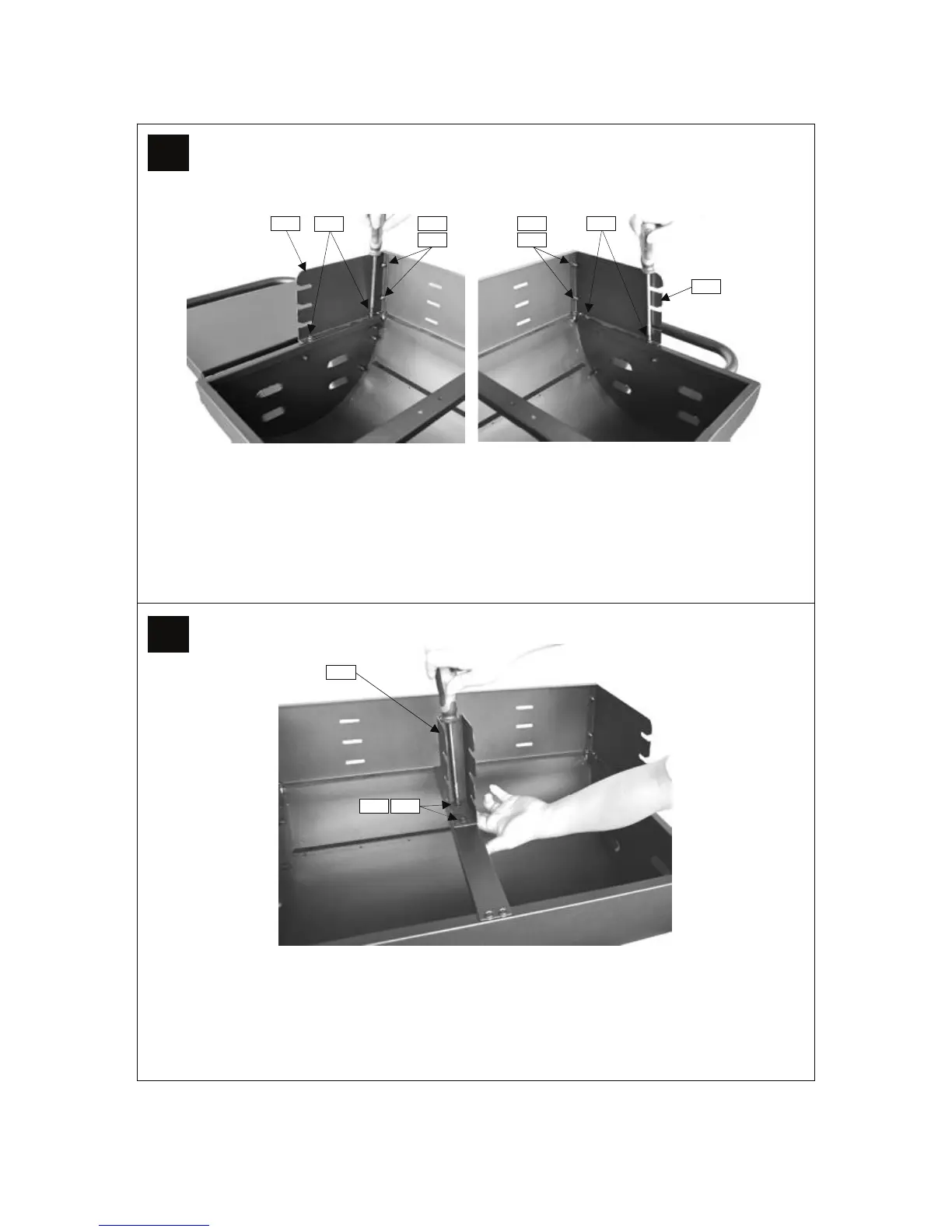

Attach the Left Wind Shield (B7) and the Right Wind Shield (B8) onto the barbecue body using
the M6x15 Bolts (D1x8pcs) and M6 Nuts (D3x4pcs) .
NOTE: The left wind shield and the right wind shield should be on the inside of the rear
wind shield.
Attach the Cooking Grill Upper Support (B13) onto the Cooking Grill Lower Support (B11)
using the M6x15 Bolts (D1x2pcs) and M6 Nuts (D3x2pcs).
B8
B7
D1
D3
D1
D3
D1
D1
D1
D3
B13
