Outback Excel 310 User Manual

13
18
17

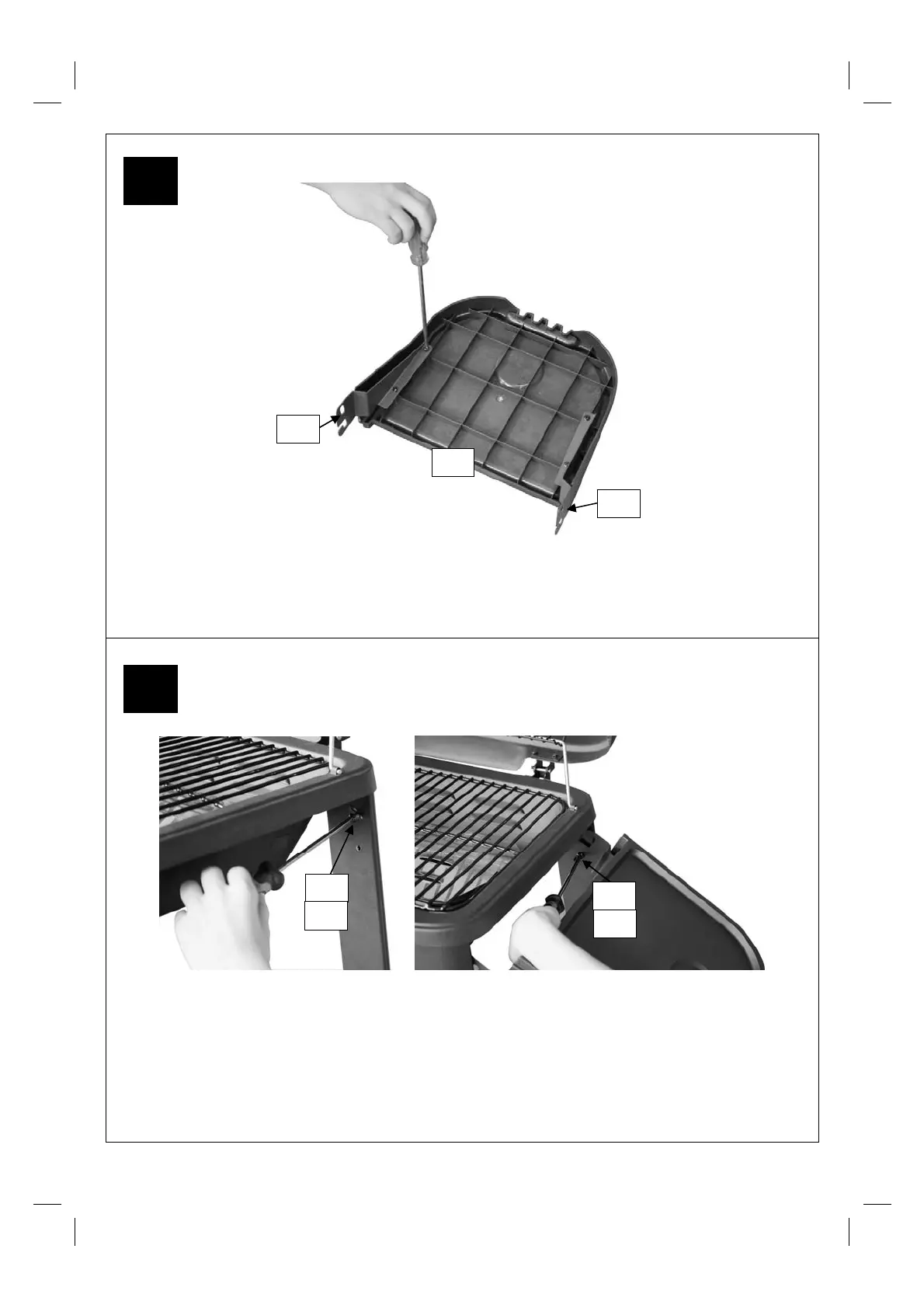

Slide a Shelf Spacer (D11) onto a M6x15 Bolt (D1) and screw it into the upper fixing point on
the right rear leg as shown. Repeat for the right front leg. Attach the assembled Side Shelf
(C1) to the right hand side of the barbecue by sliding a Shelf Spacer (D11) onto a M6x15 Bolt
(D1) and fitting the shelf to the lower fixing point on the rear leg as shown. Repeat for the front
leg.
Hook the shelf onto the upper pins to extend it to its normal horizontal position.
Attach the Side Shelf Bracket A (C2) and Side Shelf Bracket B (C3) to the Side Shelf (C1) using
ST4.0x15 Screws (D6x4pcs).
C1
C3
C2
D1
D11
D1
D11
