OWC Data Doubler Installation
60

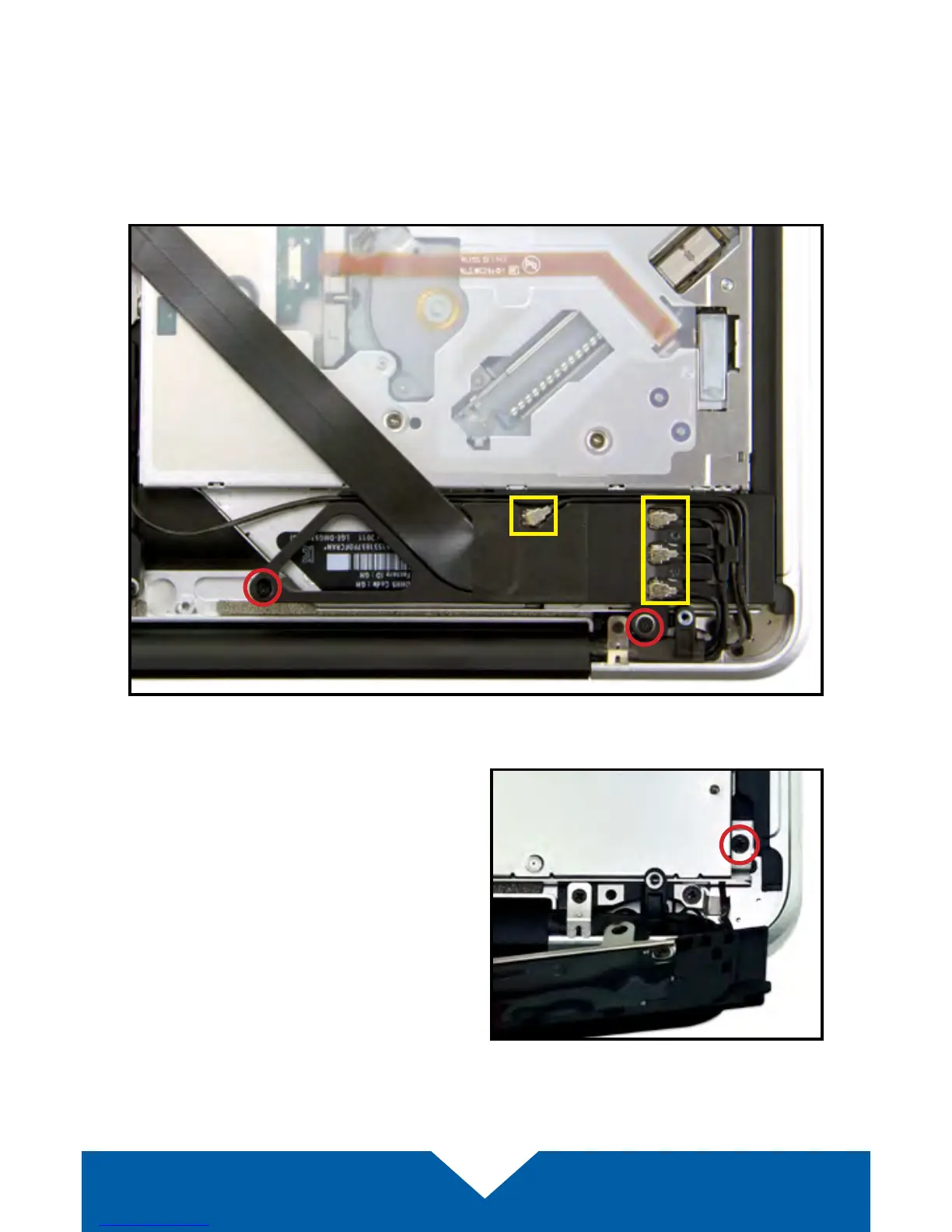

8. There is an Airport / Bluetooth bracket located below the optical drive. The
bracket is connected to a black ribbon cable and four antenna connectors
(highlighted in yellow). Remove the two Phillips screws highlighted in
red to detach the bracket, then carefully set it aside. You do not need to
disconnect the cables. Note: the screw closer to the corner is longer; it
needs to be axed in the same location during reassembly.
9. Remove the Phillips screw in the
lower right of the optical drive.
Note: You will not use this screw
during reassembly; store it in a safe
place in case you need it later.
