5.Advanced User Guidebook
41
When
slope
Select slope condition
Set slope condition; turn the M knob to set time.
Threshold
High level
Low level
Slew rate
Turn the M knob to set the
High level
Turn the M knob to set Low level
Slew rate=( High level- Low level)/ Settings
Mode
Holdoff
Auto
Holdoff
Reset
Acquire waveform even no trigger occurred
100 ns - 10 s, adjust the M knob to set time interval
before another trigger occur.
Set Holdoff time as 100 ns
4. Alternate trigger (Trigger Mode: Pulse)

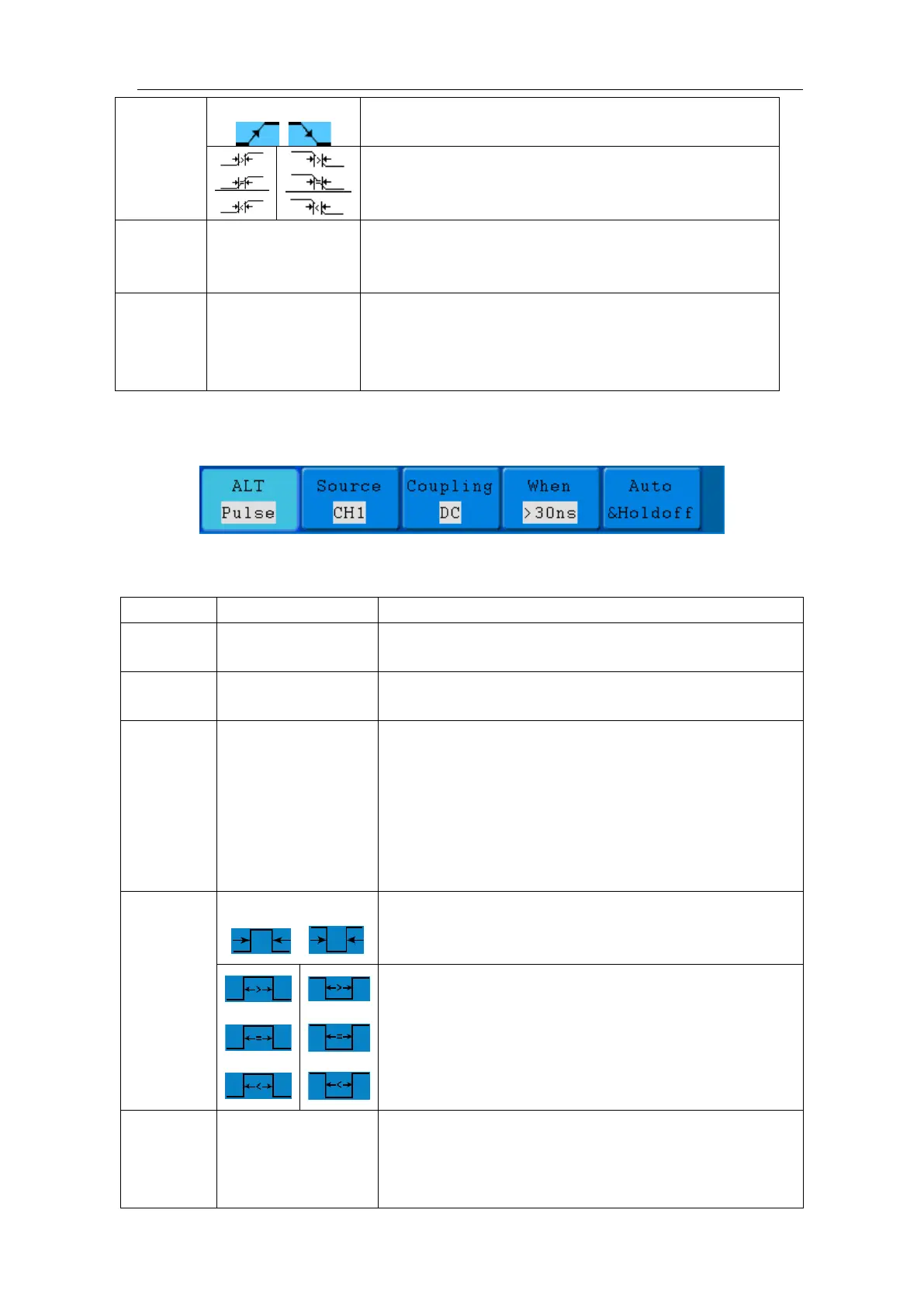

Alternate trigger (Trigger Type: Pulse) Menu is shown as Figure 5-25.
Figure 5-25 Alternate trigger (Trigger Type: Pulse) Menu
Alternate trigger (Trigger Type: Pulse) menu list:
MENU
SETTING
INSTRUCTION
Alternate
Mode
Pulse Set vertical channel trigger type as pulse trigger.
Source
CH1
CH2
Select CH1 as the trigger source.
Select CH2 as the trigger source.
Coupling
AC
DC
HF
LF
Not allow DC portion to pass.
Allow all portion pass.
Not allow high frequency of signal pass and only low
frequency portion pass.
Not allow low frequency of signal pass and only high
frequency portion pass.
(SDS5032E(V), SDS5052E(V) do not have HF and LF)
when
Polarity
Choose the polarity
Select pulse width condition and turn the M knob to
set time.
Mode
Holdoff
Auto
Holdoff
Reset
Acquire waveform even no trigger occurred
100 ns - 10 s, adjust M knob to set time interval
before another trigger occur.
Set Holdoff time as 100 ns
