5.Communication with PC
(7) Set the network parameters of the computer. Set IP in the computer, the
first three bytes is same as the IP in the oscilloscope, the last byte should be
different. Here, we set it to 10.1.1.123. The Default gateway and Subnet mask
should be set according to the router.

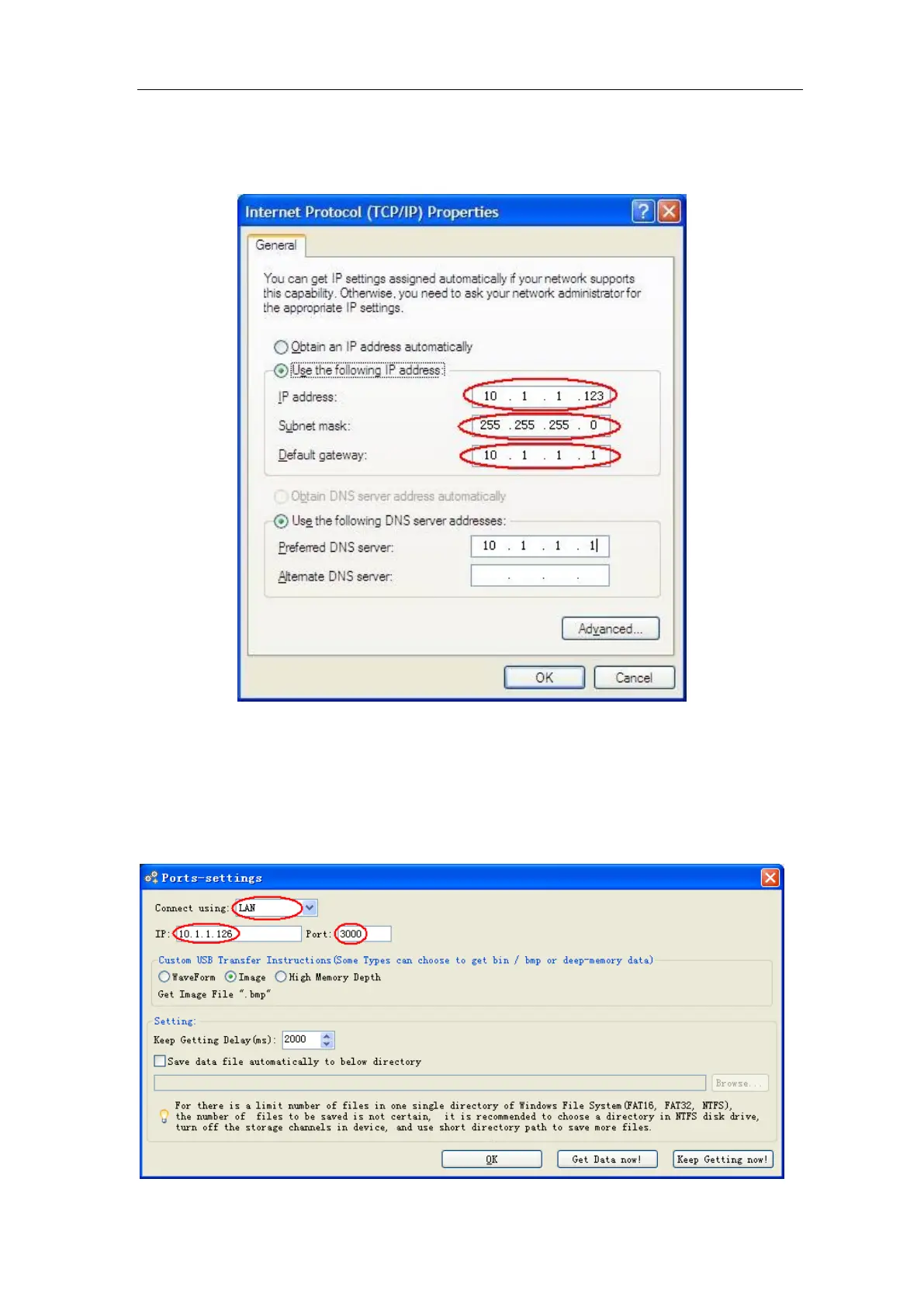

Figure 5-9 Set the network parameters of the computer
(8) Set the network parameters of the OWON Oscilloscope Software. Run the
software on the computer; choose the "Ports-settings" of the
"Communications" menu item. Set "Connect using" to LAN. Set IP and Port to
the same value in the oscilloscope. If you can get data normally, the
connection is successful.
Figure 5-10 Set the network parameters of the OWON Oscilloscope Software
