PAC R6000S - Detector Module Back View

R6000S Operation Manual: Rev. G
PAC L.P., All Rights Reserved, 2015 Page 31 of 92

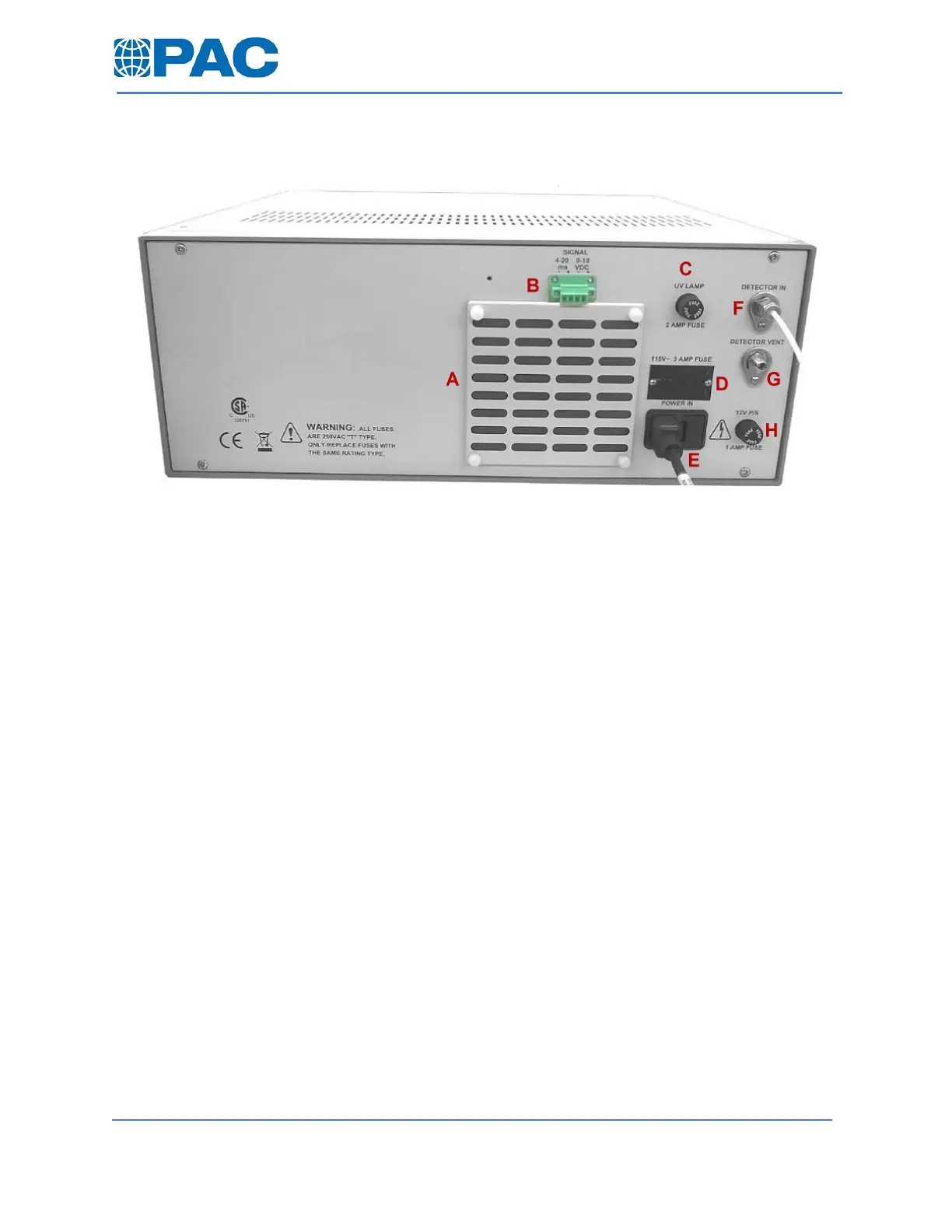

Detector Back View
A. Cover for fan filter
B. Terminal strip signal out
C. UV lamp fuse (2 amp)
D. 115 volt fuse (3 amp)
E. Power Input
F. Detector in
G. Detector vent
H. 12 volt P/S fuse (1 amp)
