Paccar MX Series - MX-11 Engine Brake Performance Curves

Paccar MX Series

105 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

PEC017

5/3/2018 Page 43 of 105

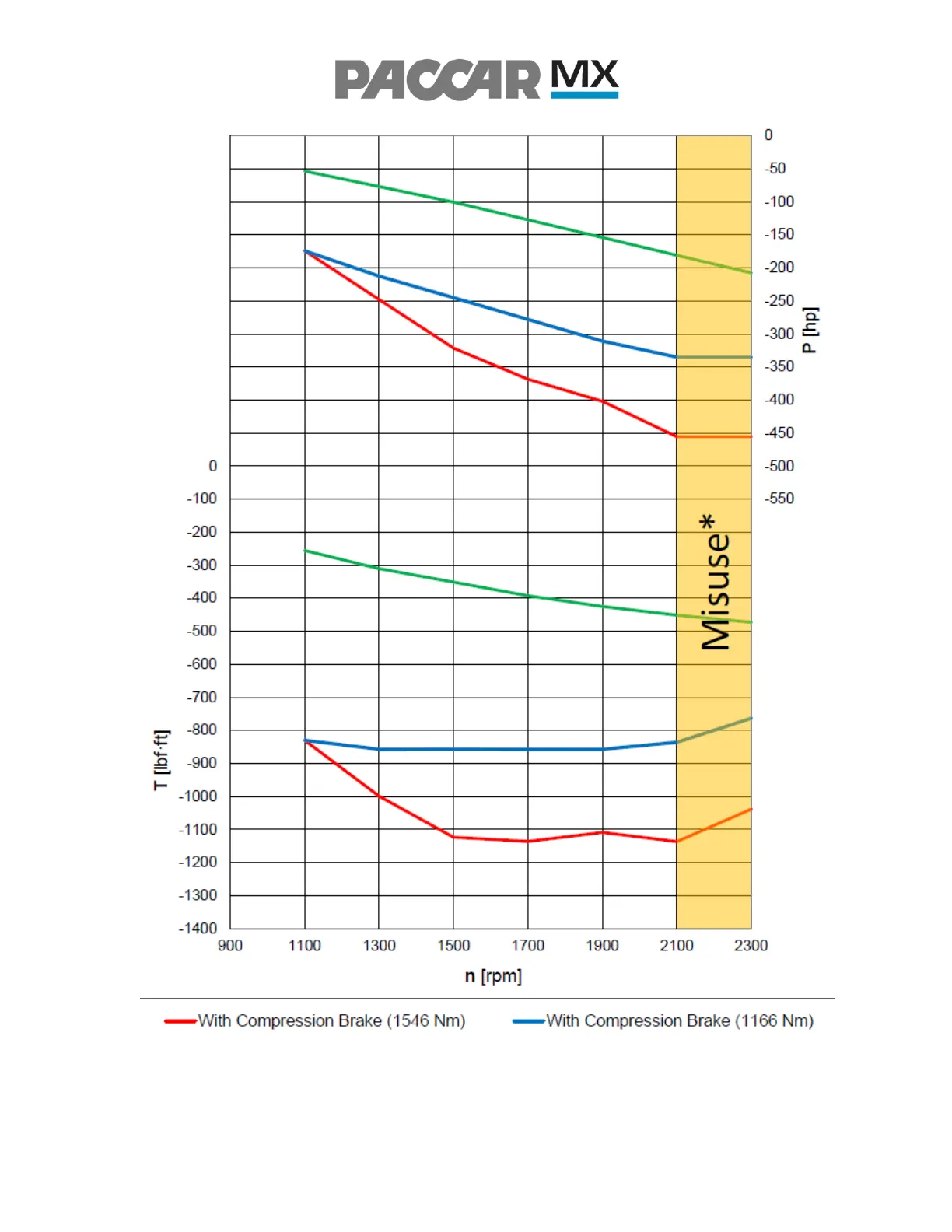

Graph 11.2 – MX-11 Engine Brake Performance Curves
