Driver Shift Aid on the Driver Display

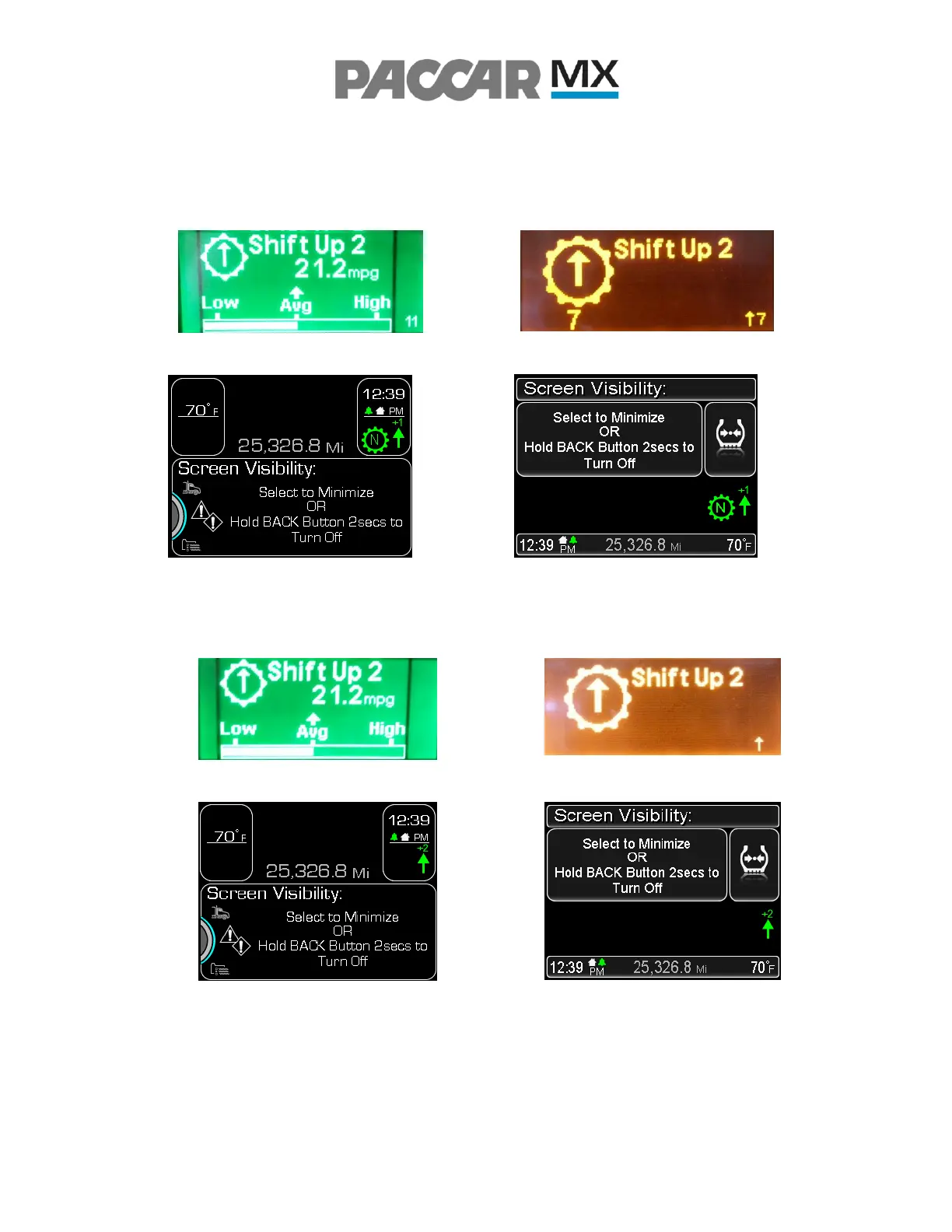

Figure 17.1 and Figure 17.2 show examples of the dedicated Driver Shift Aid screens
on the driver display, when an upshift is recommended from a known gear.
Figure 17.1 – NAMUX 2 & 3; Left: Kenworth, Right: Peterbilt
Figure 17.2 – Large Display; Left: Kenworth, Right: Peterbilt
Figure 17.3 and Figure 17.4 show examples of the dedicated Driver Shift Aid screens
on the driver display, when an upshift is recommended from an unknown gear.
Figure 17.3 – NAMUX 2 & 3; Left: Kenworth, Right: Peterbilt
Figure 17.4 – Large Display; Left: Kenworth, Right: Peterbilt
