PEC017

5/3/2018 Page 35 of 105

Additional Information

Engine Protection System on the Driver Display

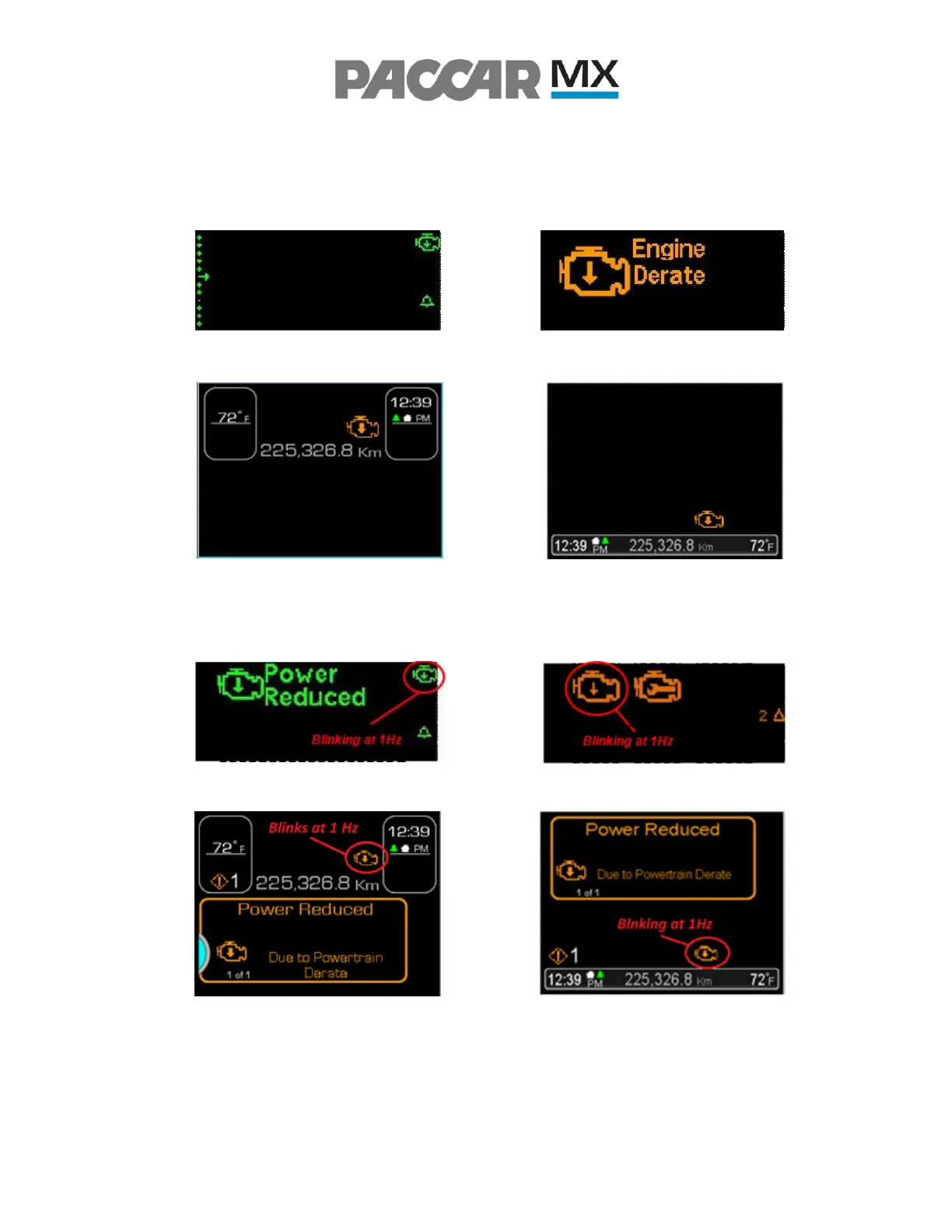

Figure 10.1 and Figure 10.2 show examples of Engine Protection System warning

screens on the Driver Display.

Figure 10.1 – NAMUX 2 & 3; Left: Kenworth, Right: Peterbilt

Figure 10.2 – Large Display; Left: Kenworth, Right: Peterbilt

Figure 10.3 and Figure 10.4 show examples of Engine Protection System derate

screens on the Driver Display.

Figure 10.3 – NAMUX 2 & 3; Left: Kenworth, Right: Peterbilt

Figure 10.4 – Large Display; Left: Kenworth, Right: Peterbilt
