PACCAR Engine Brake on the Driver Display

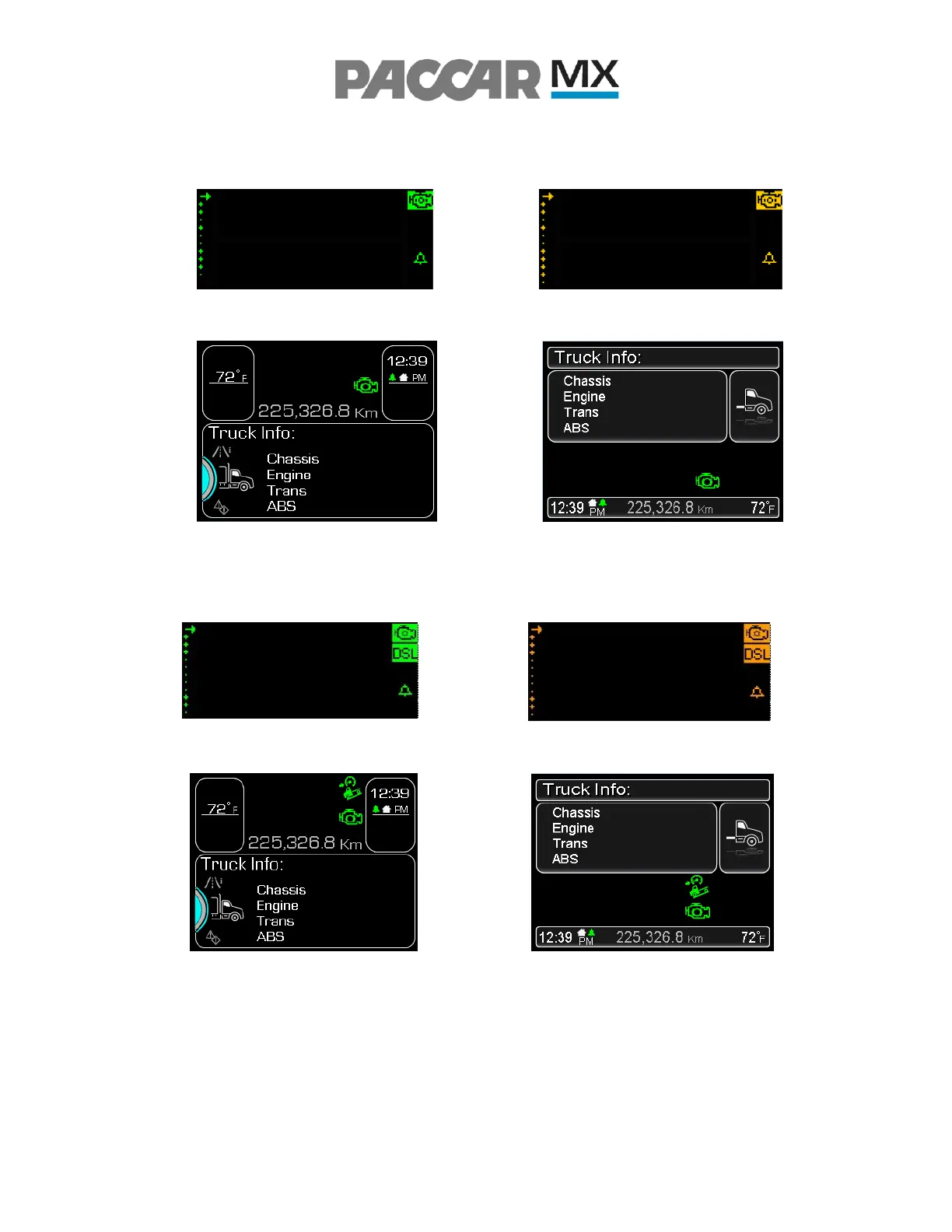

Figure 11.1 and Figure 11.2 show examples of screens on the driver display when
the PACCAR Engine Brake ON/OFF switch is in the ON position.
Figure 11.1 – NAMUX 2 & 3; Left: Kenworth, Right: Peterbilt
Figure 11.2 – Large Display; Left: Kenworth, Right: Peterbilt
Figure 11.3 and Figure 11.4 show examples of screens on the Driver Display when
the PACCAR Engine Brake is activated by Downhill Speed Limiter.
Figure 11.3 – NAMUX 2 & 3; Left: Kenworth, Right: Peterbilt
Figure 11.4 – Large Display; Left: Kenworth, Right: Peterbilt
