Paccar MX Series - Additional Information; MX-13 Power and Torque Curves for Standard Ratings

105 pages

To Next Page

To Previous Page

PEC017

5/3/2018 Page 8 of 105

Additional Information

Graph 4.1 and Graph 4.2 show power and torque curves of the MX-13 engine.

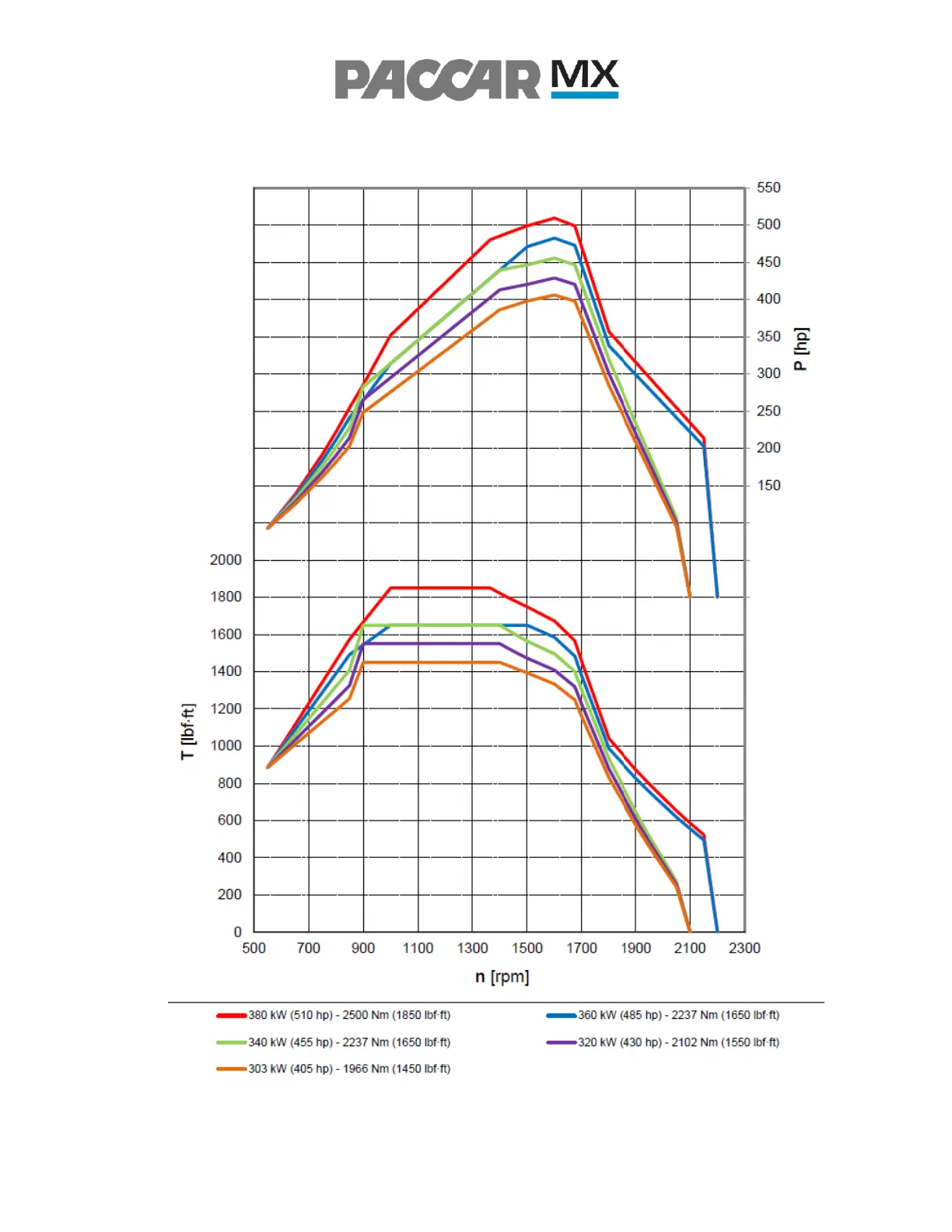

Graph 4.1 – MX-13 Power and Torque Curves for Standard Ratings
