Pack Leader ELF-50 - Applicator Exploded View

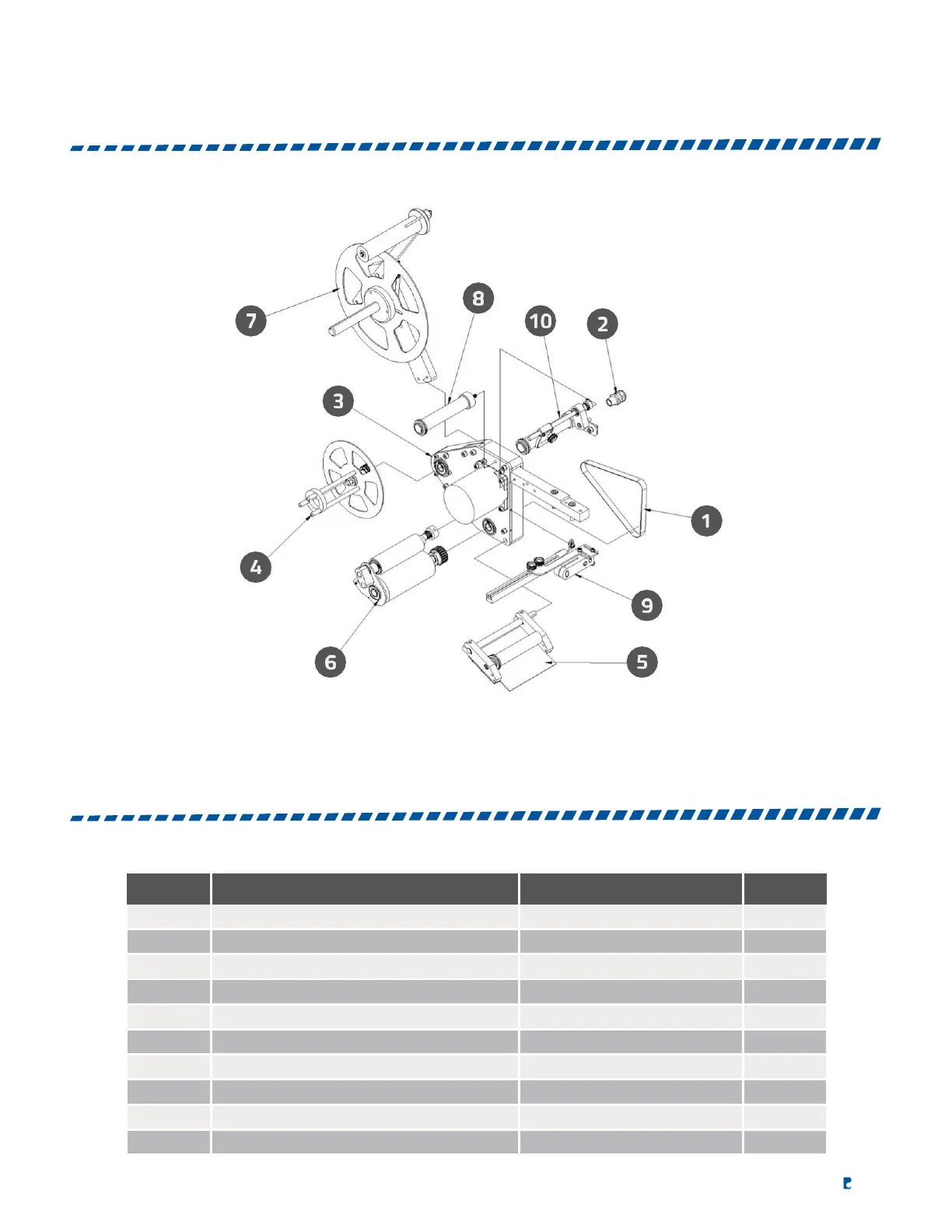

APPLICATOR EXPLODED VIEW
|
29
APPLICATOR EXPLODED VIEW PART LIST
NO.
DESCRIPTION
PARTS NO.
QTY.
1
Timing Belt 200XL050
T2Q2-200XL050
1
2
Cable Connector
QVQR-MG16A-10B
1
3
Applicator Motor Assembly
See page 30
1
4
Base Paper Collect Assembly
See page 32
1
5
Label Peel Plate Assembly
ELF1050501
1
6
Applicator Driving Assembly
See page 34
1
7
Label Supply Plate Assembly
See page 39
1
8
Label Roller Assembly
See page 41
1
9
Label Sensor Base Assembly
See page 42
1
10
Label Load Assembly (Without Printer)
See page 43
1
