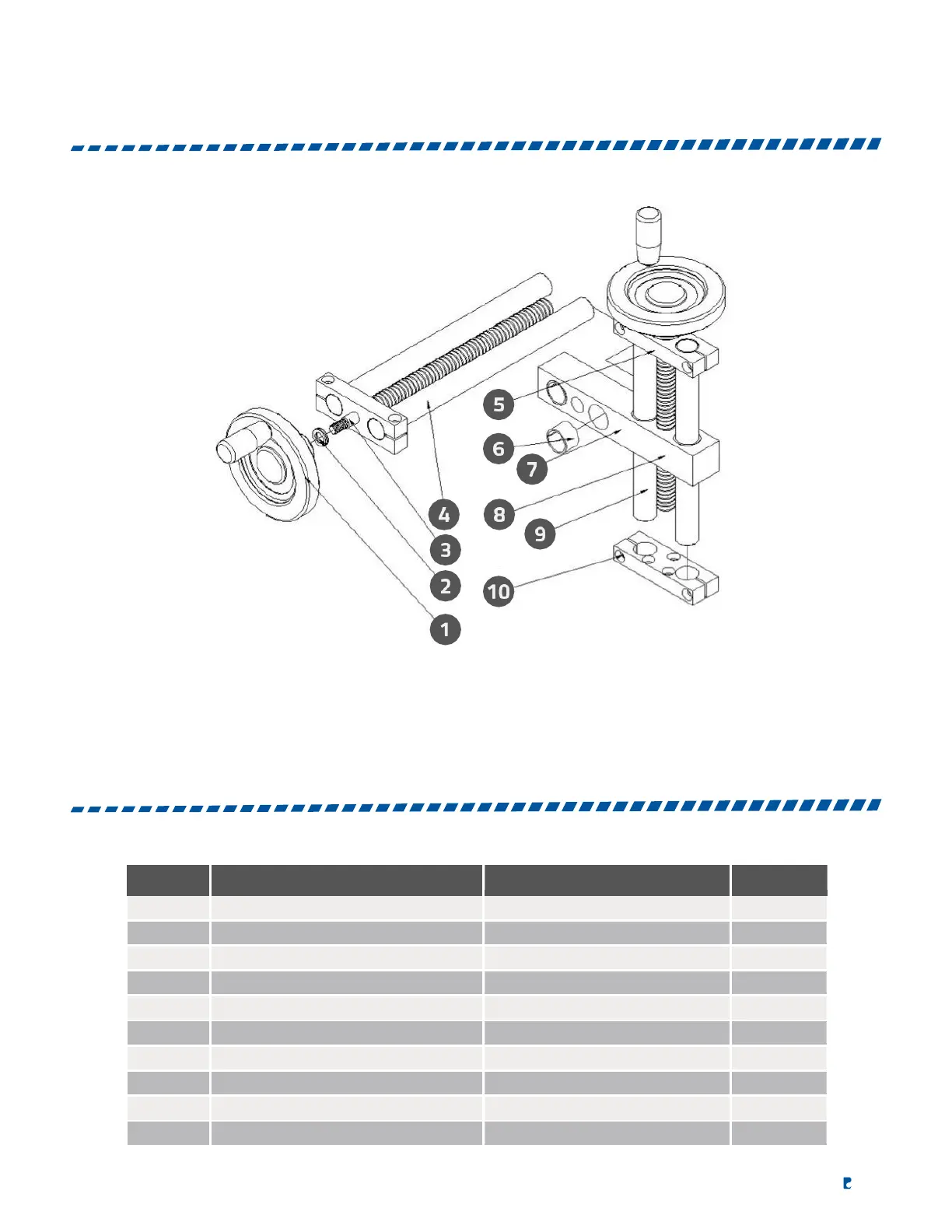

PRESSURE PLATE ADJUSTMENT ASSEMBLY
PRESSURE PLATE ADJUSTMENT ASSEMBLY
PART LIST
NO.
DESCRIPTION
PARTS NO.
QTY.
1
Hand Wheel
QRGX-KRA100CB65
2
2
Nylon Washer
2FN2-101610
12
3
Screw Rod M16210
AA1-ELF-015
1
4
Sliding Shaft
512C-20D250L
2
5
Mounting Base of Hand Wheel
AA1-ELF-014
2
6
Self Run Bearing
5TDU-LBF2015
8
7
Pressure Plate Sliding Block
AA1-ELF-011B
1
8
Screw Rod M16160
AA1-ELF-008
1
9
Sliding Shaft D20200
AA1-ELF-006
2
10
Fixture of Pressure Plate
AA1-ELF-013
1
