Pack Leader ELF-50 - Applicator Driving Assembly

|
34

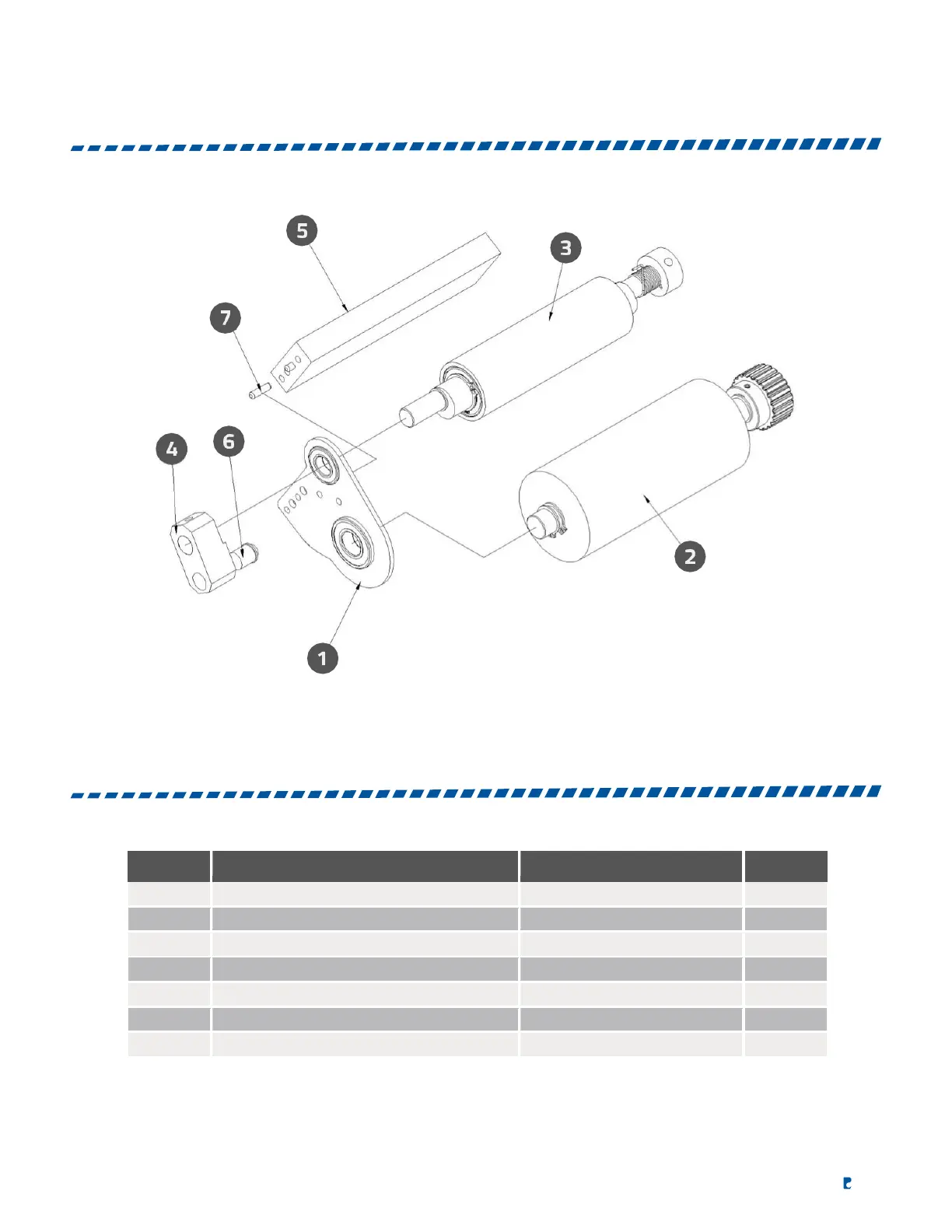

APPLICATOR DRIVING ASSEMBLY
APPLICATOR DRIVING ASSEMBLY PART LIST
NO.
DESCRIPTION
PARTS NO.
QTY.
1
Bearing Seat Fixing Plate Assembly
See page 35
1
2
PU Roller Assembly
See page 36
1
3
Aluminum Knurled Roller Assembly
See page 38
1
4
Aluminum Knurled Roller Lever
LA1-ELF-009
1
5
Aluminum Block Mount
LA1-ELF-006C
1
6
Ball Plunger
51WR-9.5
1
7
Position pin
51WR-MSSC0415
2
