Pack Leader ELF-50 - Wrap Station Assembly

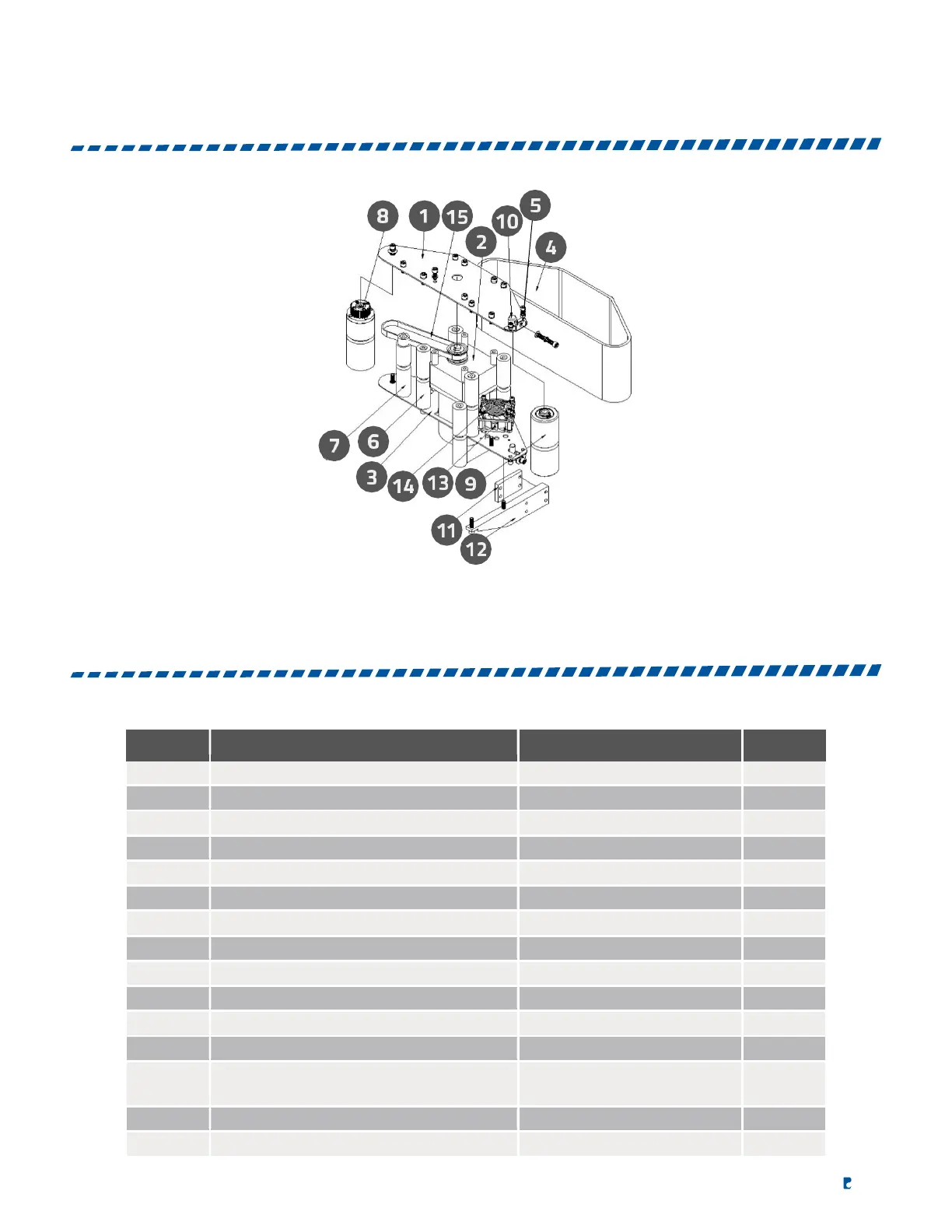

WRAP STATION ASSEMBLY
|
48
WRAP STATION ASSEMBLY PART LIST
NO.
DESCRIPTION
PARTS NO.
QTY.
1
Upper Base Plate
WB1-ELF-001B
1
2
Wrap Station Motor Assembly
See page 49
1
3
Lower Base Plate
WB1-ELF-002C
1
4
Wrap Around Belt 120W*800L
T2EW-120W800L
1
5
Driven Pulley Adjustment Plate
CV1-ELF-008
2
6
Space Roller Assembly 1
See page 52
5
7
Space Roller Assembly 2
See page 53
1
8
Wrap Station Driving Pulley Assembly
See page 50
1
9
Wrap Station Driven Pulley Assembly
See page 51
1
10
Driven Pulley Adjust Block
CV1-ELF-009
2
11
Supporter Base Pad
WB1-ELF-012
2
12
Wrap Station Supporter
WB1-ELF-011
2
13
Fan
2Y2G-QZG-
MGAC24V*6025HB
1
14
Fan Cover
2Y2G-SF06
1
15
Gear Belt
T2Q2-148XL050
1
