Digital Video Recorder

NOTE: You will only be able to set up PTZ devices if the

PTZ port is set to RS232 or RS485.

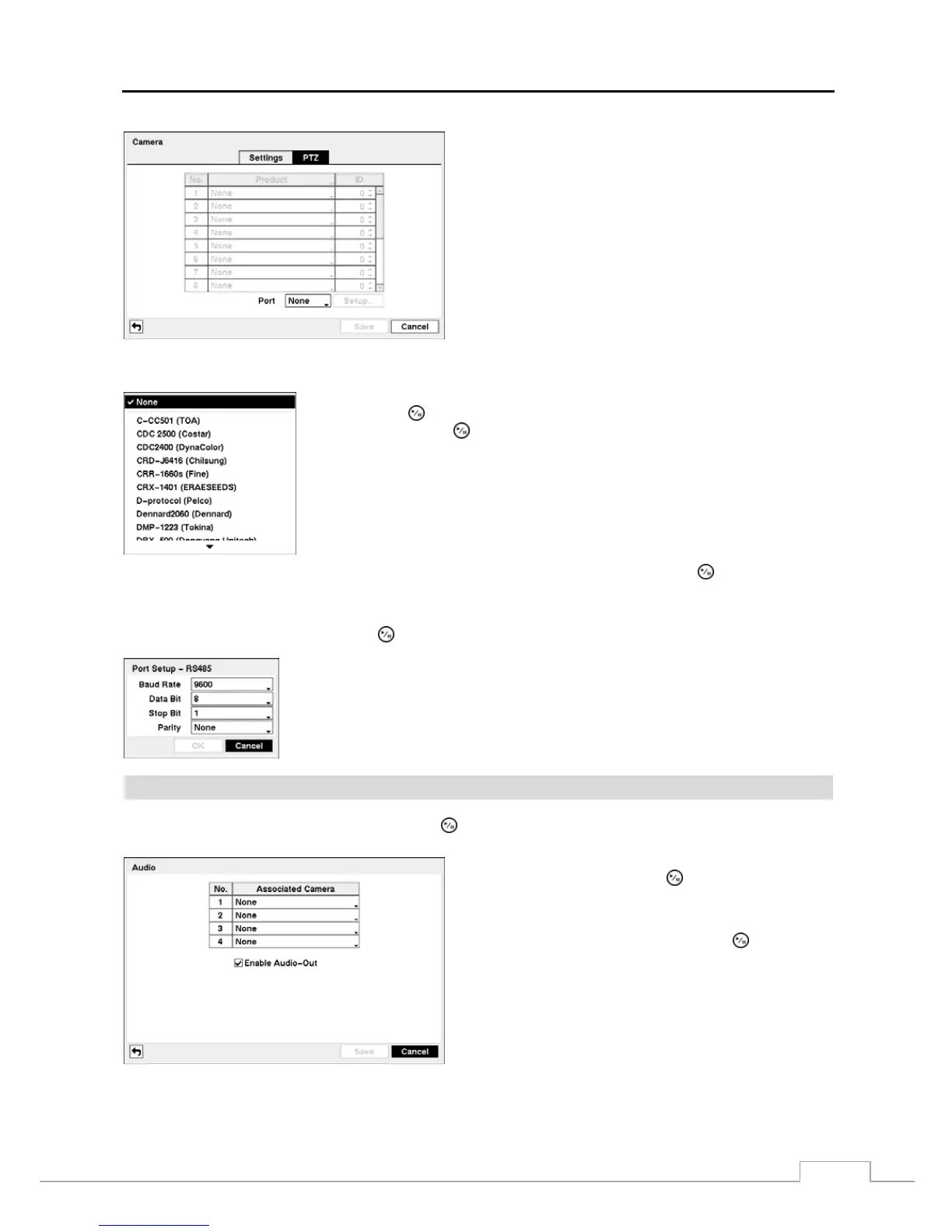

Figure 26 — Camera PTZ setup screen.

Highlight the box in the Product column for the PTZ camera you wish to configure

and press the

button. A list of PTZ devices appears. Select your camera from

the list and press the

button. You will need to connect the camera to the RS232

or RS485 connector on the back of the DVR following the camera manufacturer’s

instructions.

You can assign IDs to each camera by highlighting the box under the ID heading and pressing the button. Change the

number by highlighting it and using the Up and Down arrow buttons to increase and decrease the number. The PTZ

ID number can be set from 0 to 256.

Highlight the Setup… box and press the button. The Port Setup window appears.

Configure the port’s setting based on the PTZ camera manufacturer’s instructions.

Audio

Highlight Audio in the Devices menu and press the

button. The Audio setup screen appears.

The DVR can record up to four audio inputs. Highlight the

box beside the input and press the

button. A list of cameras

appears, and you can select which camera you want associated

with that audio input.

Highlight Enable Audio-Out and press the button. This

toggles between enabling and disabling audio out.

Figure 27 — Audio setup screen.
