PACSystems RX3i - Connector, Cabling, and Wiring Fundamentals

User Manual Chapter 2
GFK-2749A Jan 2020
Installation 20
WARNING
HIGH VOLTAGE; HIGH CURRENT
After connecting the power system wiring and before applying power, the plastic finger
guards must be installed on the Terminal Assembly.
2.5 Connector and Cabling Information
2.5.1 Basic PSM System Connections

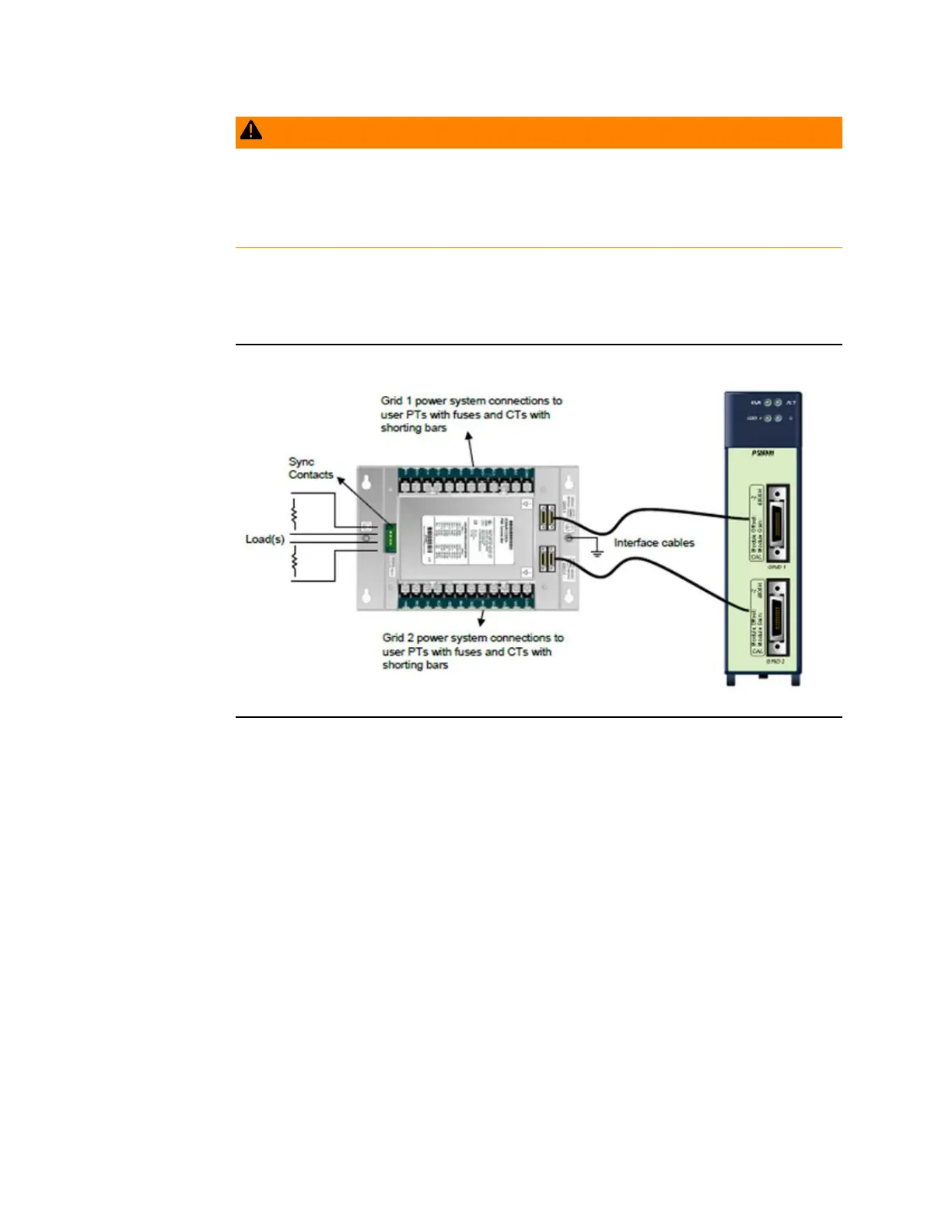

Figure 8
