User Manual Chapter 3
GFK-2749A Jan 2020
Configuration and Data Transfer 69
3.3.6 Configuration for 120/208 4-Wire WYE Synchro/Power
Control Connection
The following shows a typical hardware configuration for a 3-phase, 4-wire WYE power
paralleling/synchronizing application. Note that the offset and gain values were found on
the IC694PSM001 module faceplate label and on the IC694ACC200 terminal assembly label.
The Voltage Selection is set to 120, since the PSM can measure up to 150VAC in this range.
The Nominal Voltage is the anticipated Phase-to-Neutral voltage in the WYE configuration.

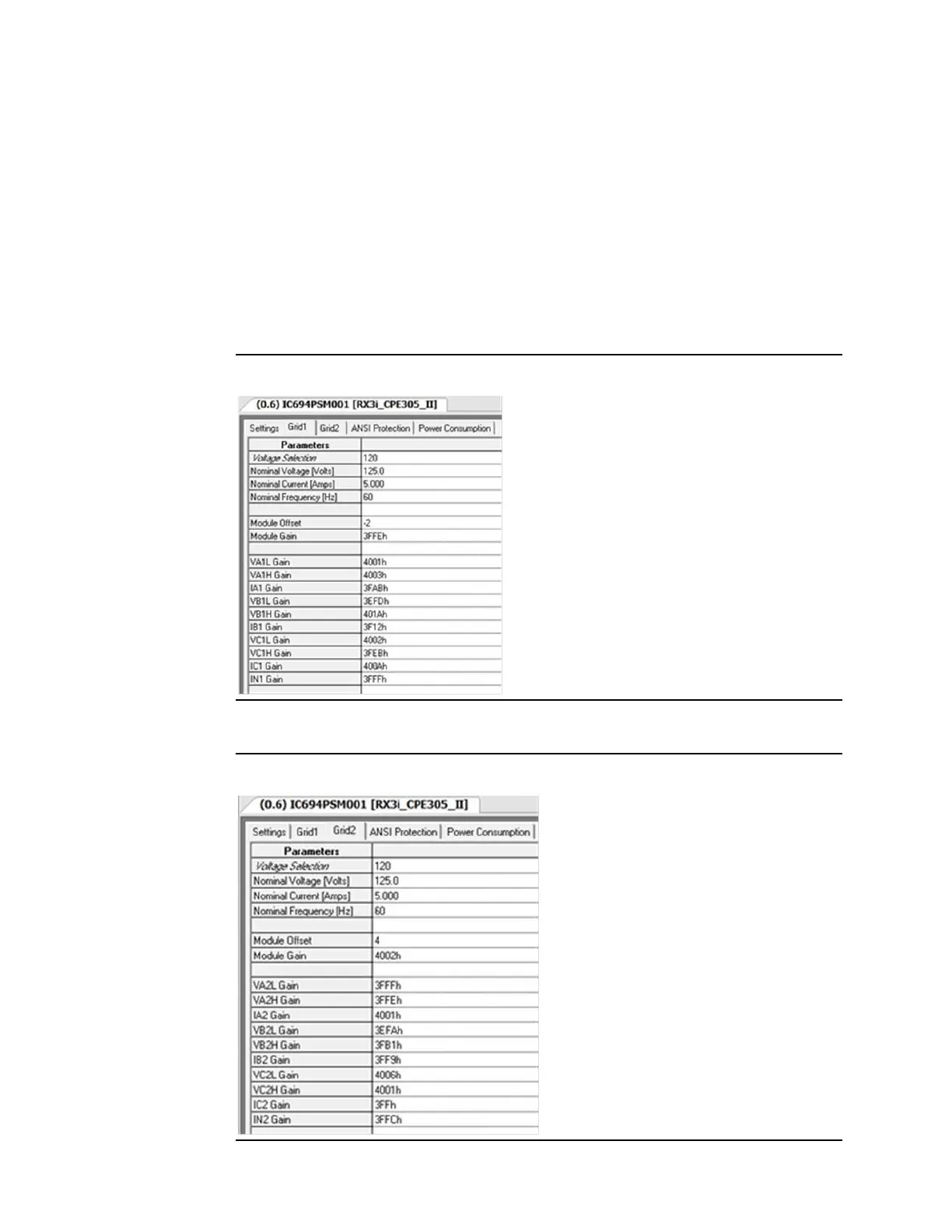

Grid 1 Tab
Figure 28
Grid 2 Tab
Figure 29
