PACSystems RX3i - Page 67

User Manual Chapter 3
GFK-2749A Jan 2020
Configuration and Data Transfer 63

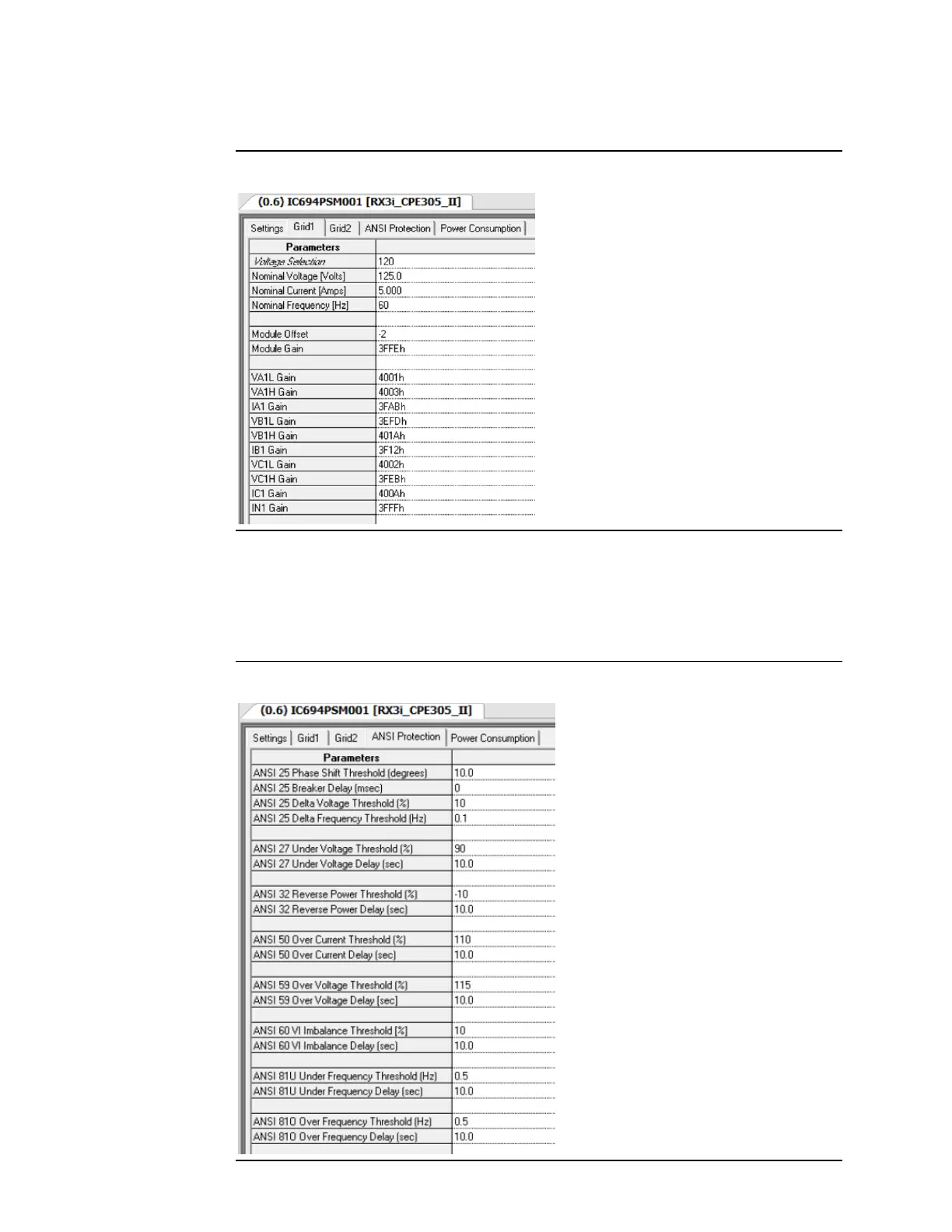

Grid 1 or Grid 2 Tab
Figure 22
ANSI Protection Tab
Note that synchronization is an option in 3-phase mode, so the ANSI 25 parameters can be
left at their default values or changed to suit the application. Since the Breaker Delay is set
to the special case value of zero, a static phase angle synchronization is anticipated.
Figure 23
