User Manual Chapter 3
GFK-2749A Jan 2020
Configuration and Data Transfer 65
Grid 1 or Grid 2 Tab

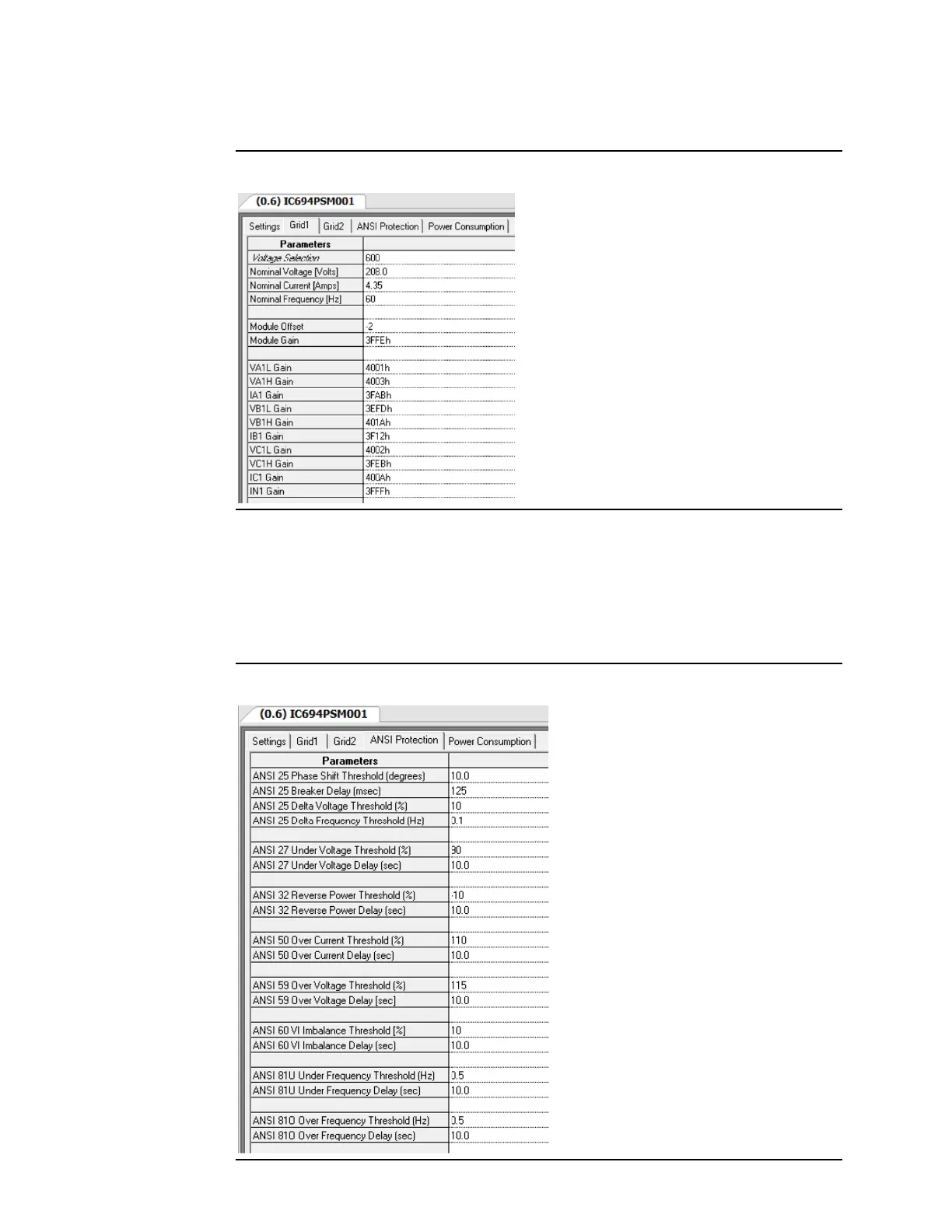

Figure 24
ANSI Protection Tab
Note that synchronization is an option in 3-phase mode, so the ANSI 25 parameters can be
left at their default values or changed to suit the application. The Breaker Delay value of
125ms allows the PSM to perform a rotating phase angle synchronization, closing the
contacts right at 0º when the grid frequencies are held steady during the sync process.
Figure 25
