ANSI Protection Tab
Note that synchronization is an option in 3-phase mode, so the ANSI 25 parameters can be
left at their default values or changed to suit the application.

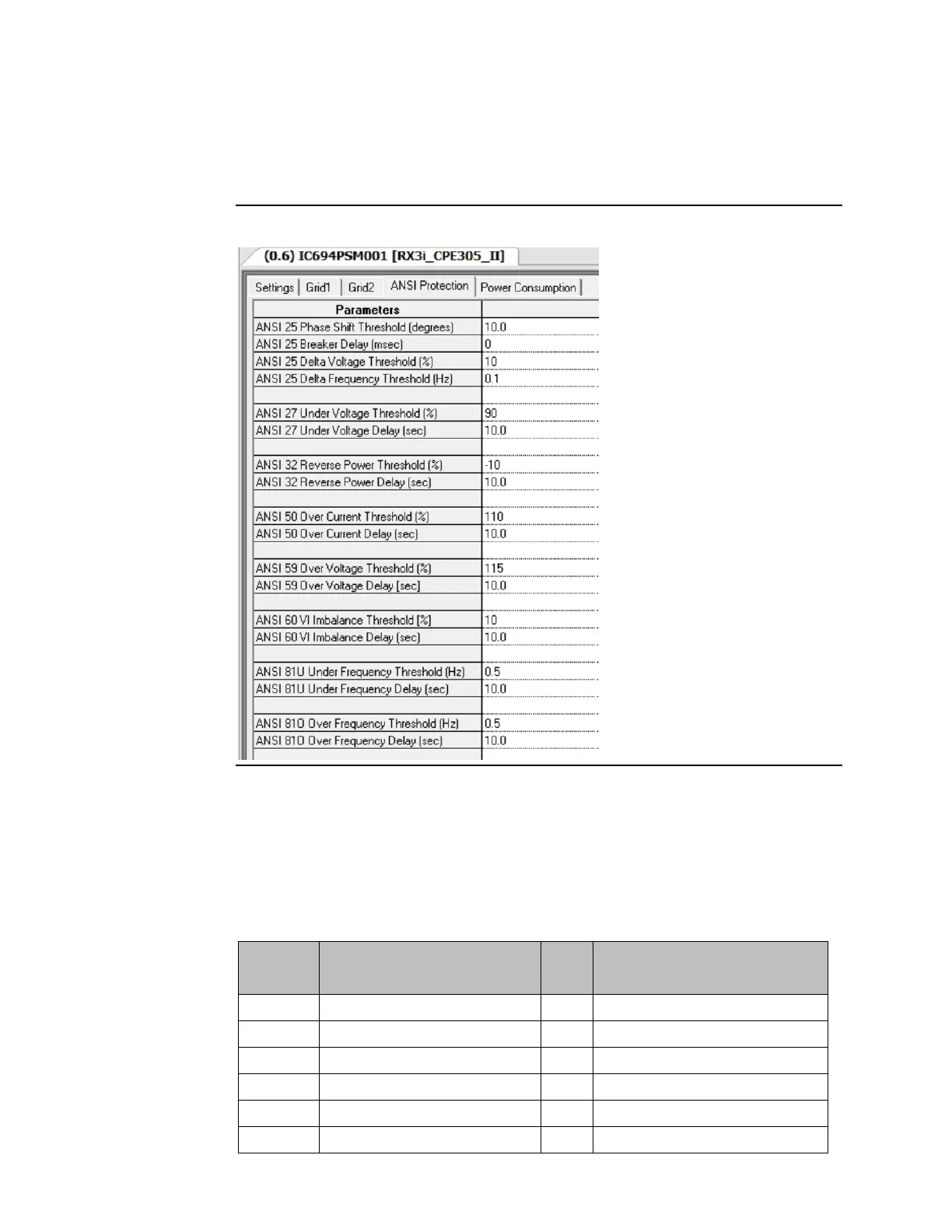

Figure 33
%Q Configuration Values
This table shows the settings for both grids. These bits must be set during the first PLC scan
when the PLC transitions to run mode. %Q offset 2, 3 & 4 and 18, 19 & 20 set the PSM for the
field voltage and power configuration. Setting these values incorrectly will yield invalid
readings. All remaining bits may be changed during run mode to adapt to changing field
conditions.
