Palfinger ILP 33 - 4 General View of Liftgate; ILP Liftgate Overview

ILP 25/33 Owner’s Manual
Rev.1.4 10
4 General View of Liftgate

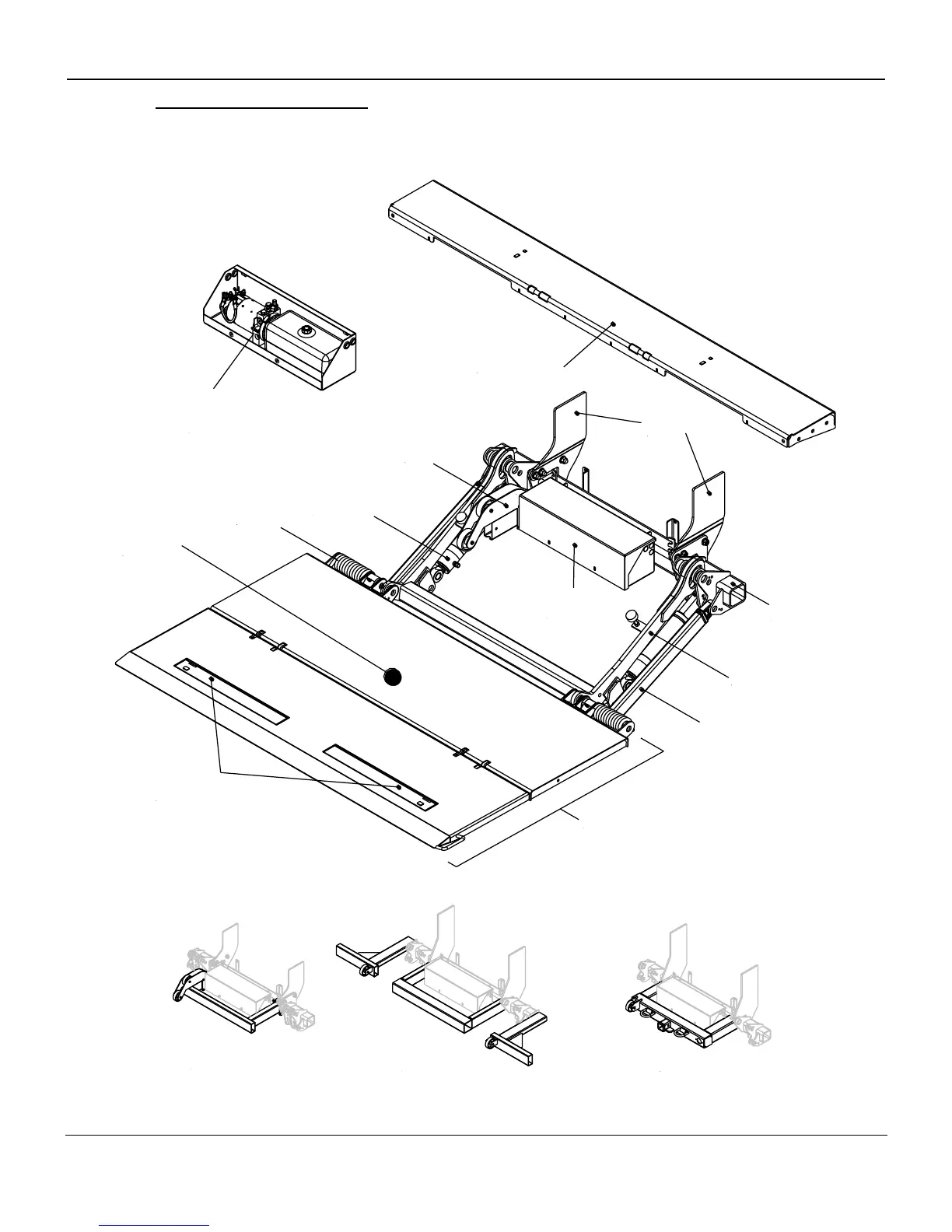

4.1 ILP Liftgate Overview
Load Center
of Gravity
DOT Bumper
Hitch Bumper
Center Bumper
Hydraulic
Power Unit
Liftarm
Parallel Arm
Platform
Cart Stops
(Optional)
Single Action or
Double Action
Lift Cylinders
Springs*
Hydraulic
Power
Unit
Platform
Roll Off
Wheels
Bolt-On
Mount Plates
Mount
Frame
Bed Extension
*No spring installed on left side for 42“ and 48“ aluminum platforms only.
