Palfinger ILP 33 - Electrical Schematic (Power down )

ILP 25/33 Owner’s Manual
Rev.1.4 31

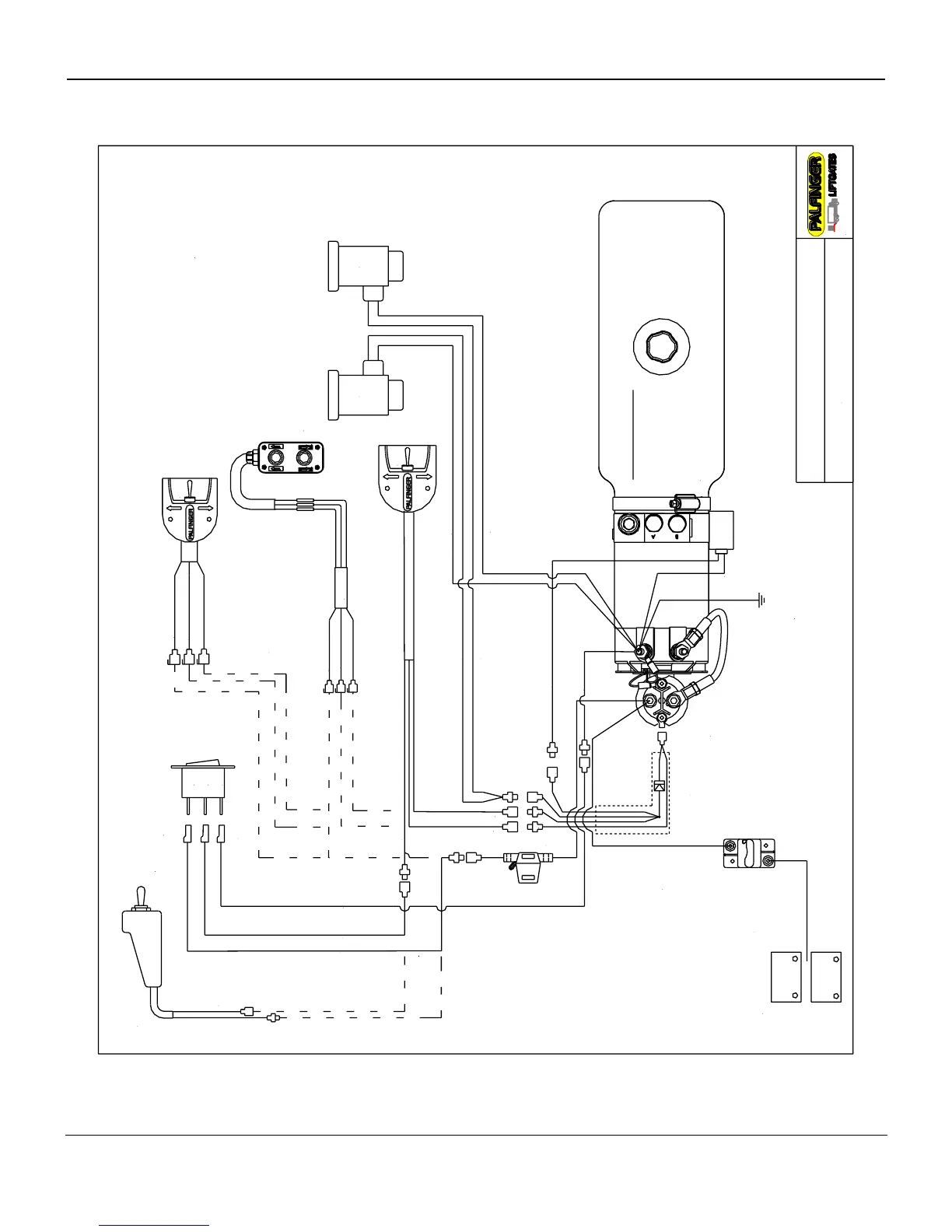

8.7 Electrical Schematic (Power Down )
ILP/PLR (Power Down) - Wiring Schematic
Toggle control - Pump - Full Time Power Down
15939 Piuma Ave. Cerritos, CA 90703
30 Ft. x 2 ga. Battery Cable
150 amp Circuit Breaker
12V Power Supply
Starter Solenoid
Power Down Harness
with Diode
5 6
S1
S5
Shift Solenoid - Yellow
Power - #4 - Blue
Raise - #5 - Brown
Lower - #6 - Yellow/Green
ON/OFF Switch (Truck Installation)
Main Liftgate Toggle Control Switch
Power - Brown
Load - Blue
Lower Solenoid - Black
Lower Solenoid - Black
Power
Ground
Load
Ground - Yellow/Green
Spade Connectors
with housing
Power - #4 Green
Lower - #6 Yellow
Starter - #5 Red
Power - Brown
Power - Blue
OR
ON/OFF Switch (Trailer Application)
2-Button Hand Held Remote (Optional) Piggy back with Toggle Switch
Ground - Lower Solenoid - Black
Ground - Lower Solenoid - Black
Lower Valve
S1
Lower Valve
S2
Shift Solenoid - Yellow
Shift Valve
Ground
Power
15A Fuse
Torque Specifications Starter Solenoid: M6: 1.3 ft/lbs. [1.7 Nm] M8: 3 ft./lbs [4 Nm] Electric Motor M8: 6.3 ft/lbs. [8.5 Nm]
Harness
Splice Connectors
Lower
Raise
70-0312-002 Yellow/Green - Ground
2 ga.Ground Cable at Enclosure
(Optional 2nd toggle) Cut ends off of toggle when it is an additional toggle and add piggy back connectors to all
Lower
Raise
Power - #4 Blue
Lower - #6 Yellow/Green
Starter - #5 Brown
Heat shrink all piggy back connectors
Important Note:
-All connectors are to be insulated and weather sealed.
-In-Line ATC Fuse 15 Amp at solenoid.
Replace with
same amperage fuse when necessary.
NOTICE: DO NOT attempt to jump in-line fuses
with other objects other than the specified fuse(s).
DO NOT increase the amperage rating of fuse.
Serious harm to the liftgate will result when
standard practices are not followed.
