ILP 25/33 Owner’s Manual
Rev.1.4 28
8.4 Electrical Wiring – Batteries – Truck/Trailer
*Resettable Circuit Breaker: 150 Amp Min. Replace with same amperage breaker when necessary.
Ground: For optimal grounding, ground all batteries and power units to the body side rails of the vehicle.
NOTICE: DO NOT attempt to jump in-line fuses with other objects other than the specified fuse.
Do not increase the amperage rating of fuse. Serious harm to the liftgate will result when standard practices are not followed.
Main Batteries
*Resettable
Circuit
Breaker
Ground
2Ga Power Cable
From Liftgate (+)
*Resettable
Circuit
Breaker
Single
Pole
Socket
Auxiliary
Batteries
Ground
*Resettable
Circuit
Breaker
2Ga Power Cable
From Liftgate (+)

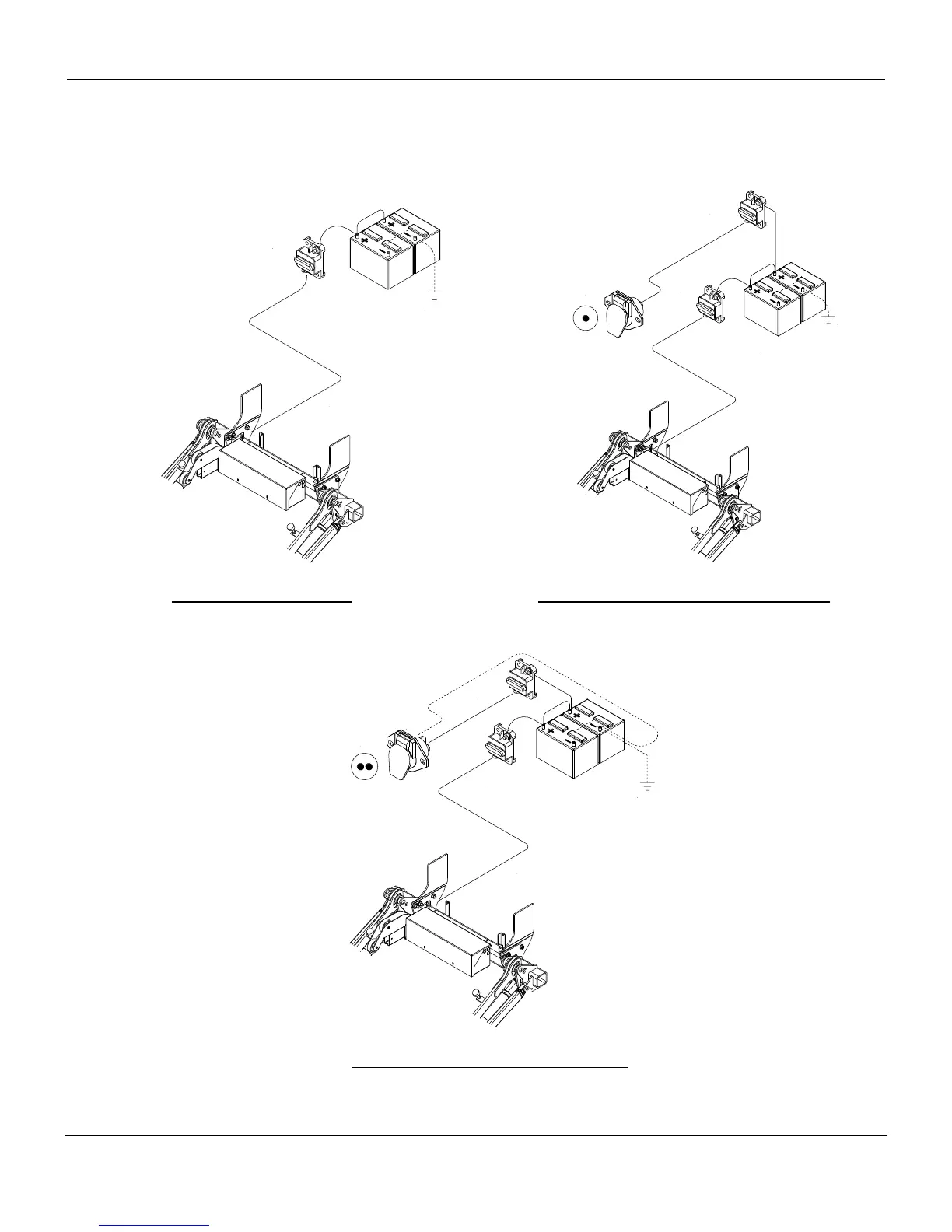

Wiring Diagram – Truck Wiring Diagram – Single Pole – Trailer
2Ga Power Cable
From Liftgate (+)
(+)
(-)
*Resettable
Circuit
Breaker
Dual
Pole
Socket
Aux.
Batteries
Ground
*Resettable
Circuit
Breaker
Wiring Diagram – Dual Pole - Trailer
