Palfinger ILP 33 - Hydraulic Schematics (Gravity Down)

ILP 25/33 Owner’s Manual
Rev.1.4 32
8.8 Hydraulic Schematics (Gravity Down)
"A"
PLP Gravity Down

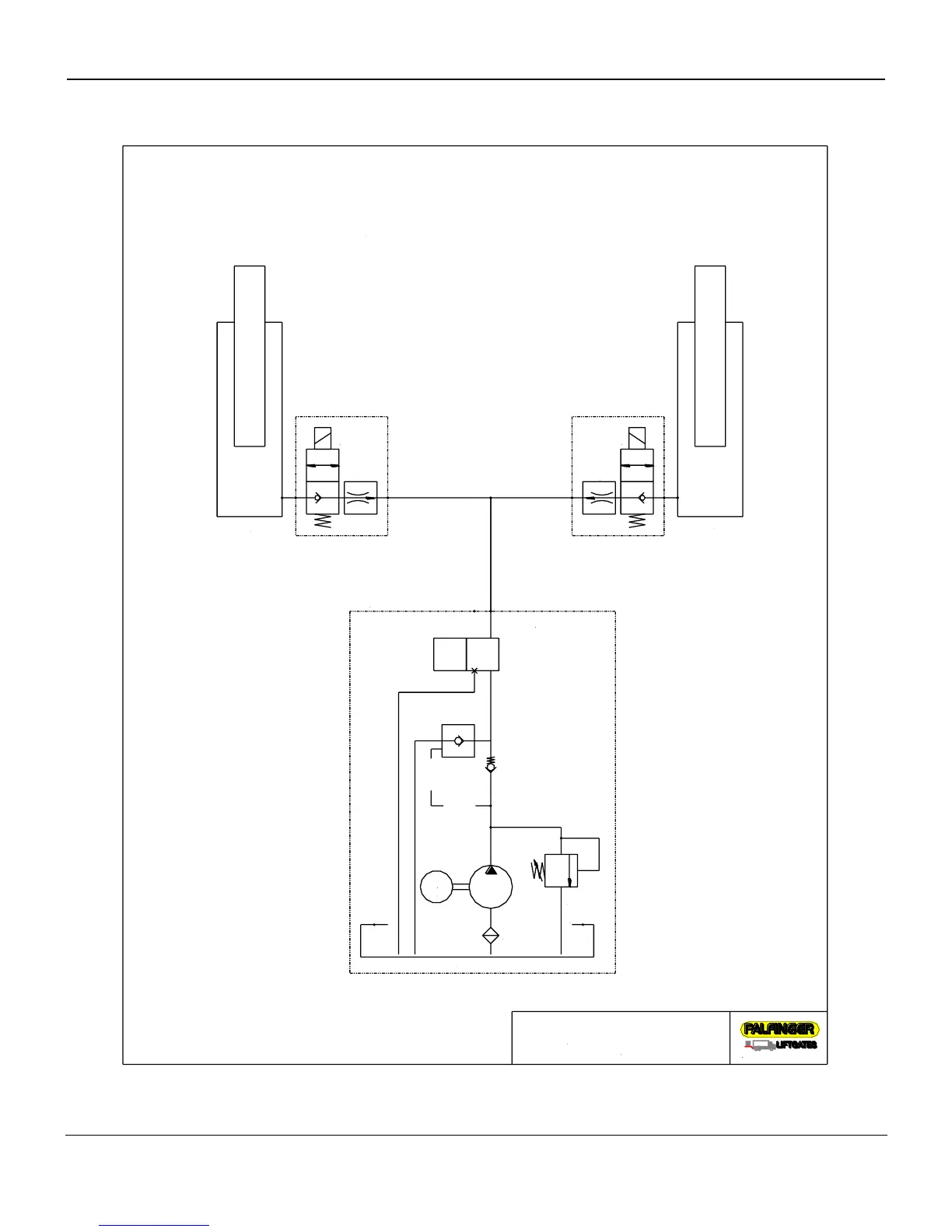

USA Hydraulic Schematic
Discontinued on liftgate S/N: PT-10598
15939 Piuma Ave. Cerritos, CA 90703
R1 R2
S1 S2
Lift Cylinder
Lift Cylinder
S1 & S2 - Release Valve for Lowering
R1 & R2 - Flow Restrictor for limiting lower speed.
Raise = M
Lower = S1+S2
Port
Pump Unit
Relief Valve
2850 psi
Filter
Pump
Reservoir Tank
Motor
Breather
"A"
M
Pilot to Close
Check Valve
Pump Unit M-3441-0104
