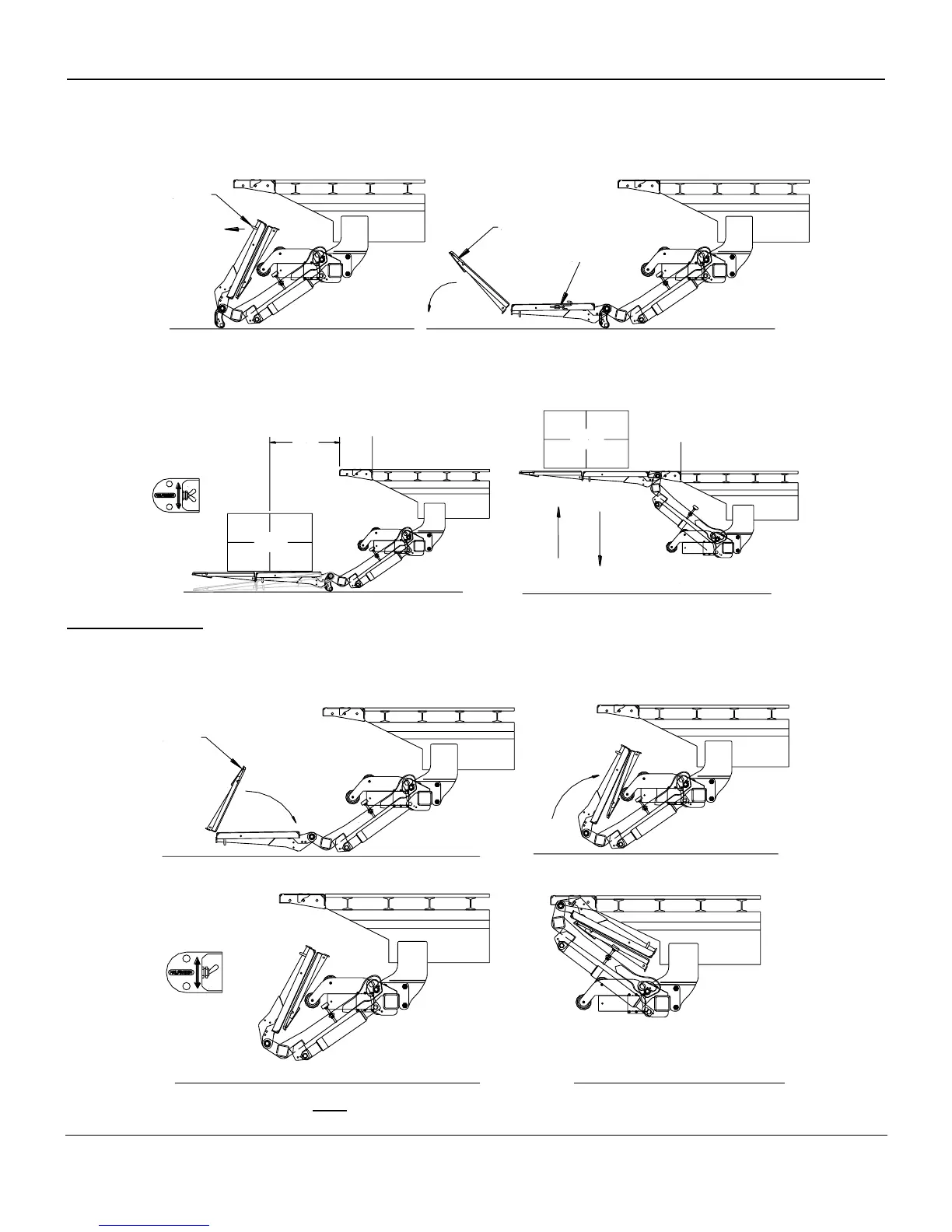

4. Use the handle on the main to manually pull the platform away from the wheels down to the ground,
Fig.9. Unhook the safety chain/strap on the side of the platform that secures the main section to the
tip. Use the handle on the tip section to manually unfold the tip, Fig.10. For aluminum platform,
unhook the strap, and use the strap to unfold the platform tip manually.
Handle
(On Tip)
Handle
(On Main)
Chain
5. Center the load on the platform 24“ away from the rear of the bed extension, Fig.11. Use the toggle
switch to lift the platform up and down, Fig.12. To tilt the platform down, continue holding the toggle
switch down until the platform begins to tilt. Toggle up to tilt the platform up parallel the ground.
Down
Up
24"
Load
Load
To Store Liftgate
1. Raise platform approximately 16“ from the ground, fold the tip manually using the handle/strap and
secure the tip to the main with the safety chain/strap, Fig.13. Manually lift the platform to rest
against the wheels, Fig.14.
Handle
(On Tip)
2. Use the UP function on the toggle switch to store the platform, Fig.15.
Down
Up
3. Turn the ON/OFF switch OFF when liftgate is not in use.
Fig.9
Fig.10
Fig.11
Fig.12
Fig.13
Fig.15
Fig.14
