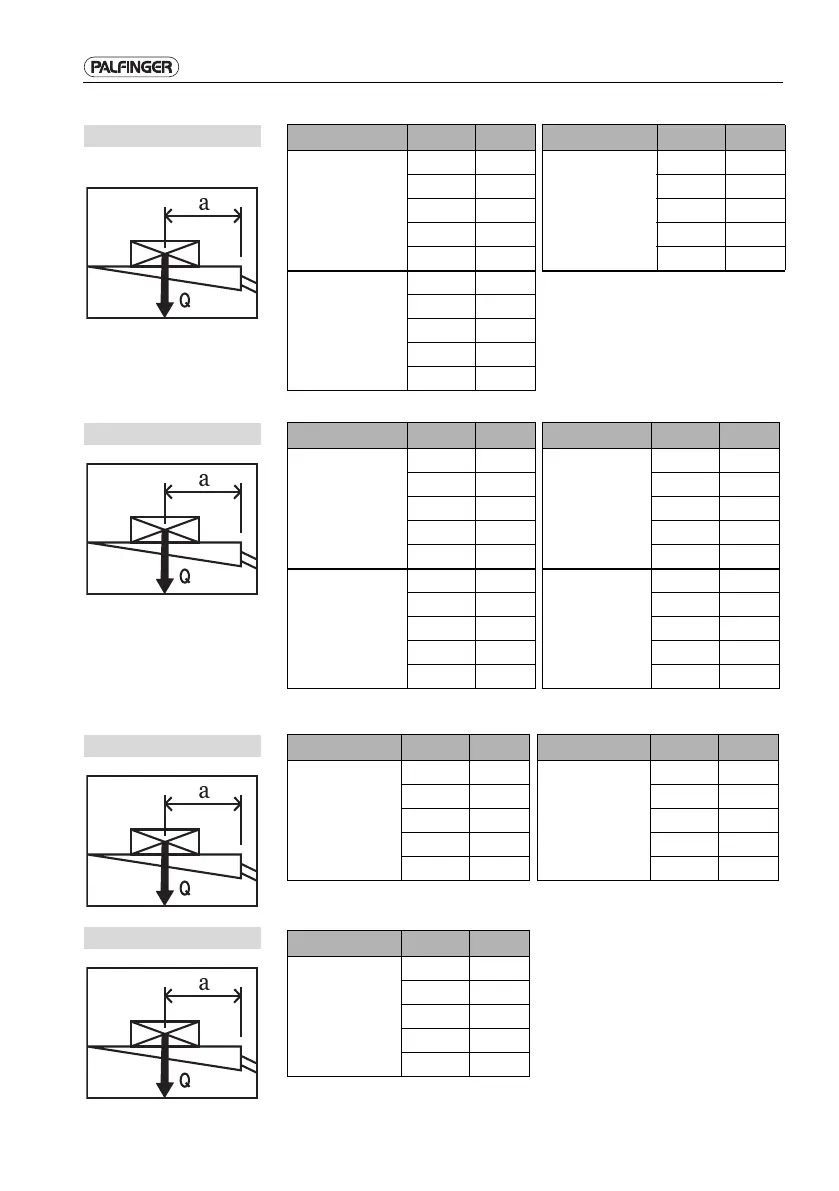

Palfinger MBB F 1000 LD - Page 173

173
K
a [mm] Q [kg] a [mm] Q [kg]
MBB
F 1000 SH
F 1000 SX
600 1000
MBB
F 2000 LH
F 2000 LX
750 2000
750 800 900 1650
1000 600 1100 1300
1500 400 1600 950
2400 250 2400 600
MBB
F 1500 LH
F 1500 LX
600 1500
720 1250
900 1000
1200 750
2400 370
L
a [mm] Q [kg] a [mm] Q [kg]
MBB
F 1000 L
600 750
MBB
F 1250 S
550 1250
700 650 650 1000
820 550 900 750
1120 400 1350 500
1800 250 2400 250
MBB
F 1000 LD
650 1000
MBB
F 1500 L
600 1500
850 800 720 1250
1150 600 900 1000
1700 400 1200 750
2400 250 2400 370
M
a [mm] Q [kg] a [mm] Q [kg]
MBB
F 500 L
600 500
MBB
F 600 L
C 600 L
600 600
700 430 700 430
820 360 820 360
1120 260 1120 260
1800 160 1600 160
BCV
a [mm] Q [kg]
MBB
V 4000 S
1500 4000
1750 3400
2000 3000
2250 2600
2500 2400
