80
Setting the BDF Position
Turn the rotary switches (27) and (29) simultaneously up-
ward and hold them in this position until the platform has
reached the vehicle loading floor height.
Turn the rotary switch (30) upward and hold it in this posi-
tion until the platform has reached the loading position.
Shift the movable stop on the guide rail until the outer initi-
ator is dampened.
Moving to the BDF Position
Turn the rotary switches (27) and (29) simultaneously up-
ward and hold them in this position until the torsion frame is
located above its horizontal position.
Turn the rotary switch (30) upwards.
The platform moves to the preset BDF position.
Turn the rotary switches (27) and (29) simultaneously up-
ward and hold them in this position until the platform has
reached the loading position.

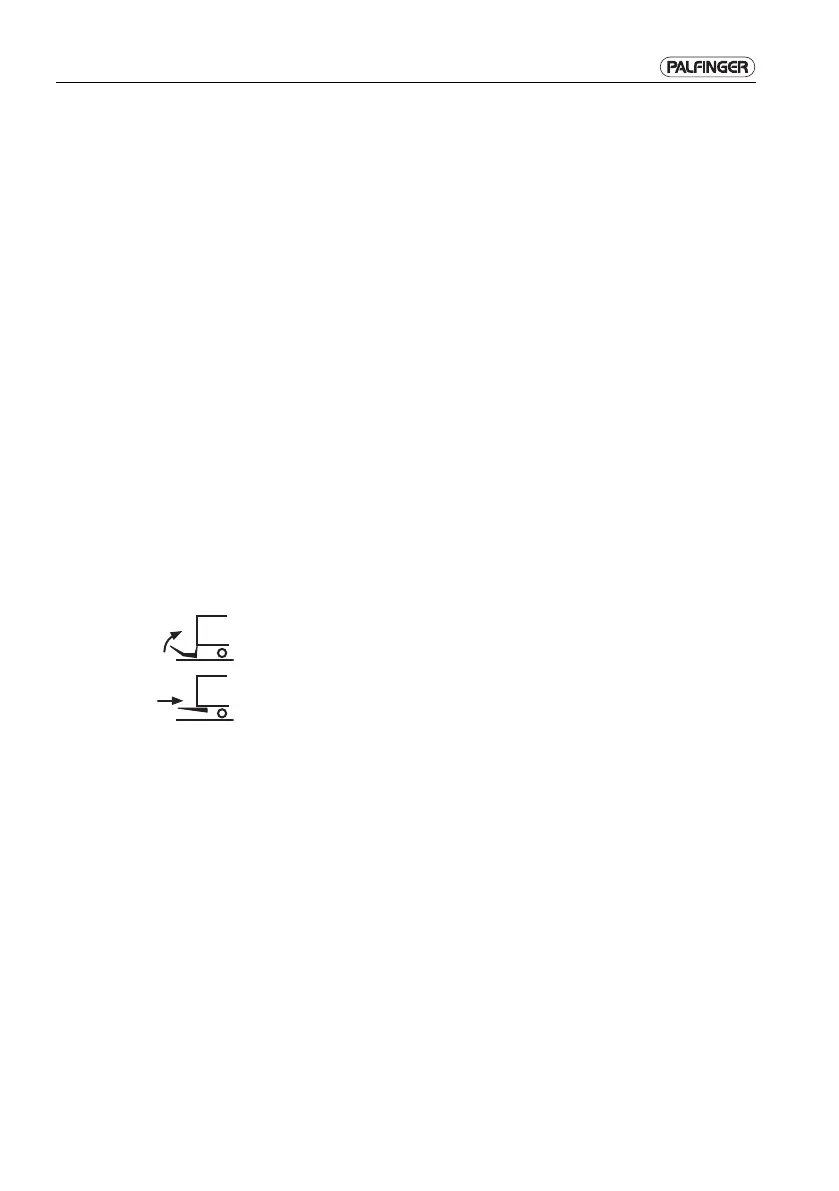

Folding In and Retracting the Platform
Turn the rotary switches (27) and (29) simultaneously
downward and hold them in this position until the platform
has reached the ground.
Protect your hands with gloves.
Fold in the link bridge (if present).
Pull the handle with both hands to fold back the folding part
of the platform.
Turn the rotary switch (30) upward and hold it in this posi-
tion until the platform has reached the vertical position.
Tilt the platform with both hands forward by
approximately 20°.
Turn the rotary switch (30) upward and hold it in this posi-
tion until the platform has reached the vibration safeguard.
After the platform folded over automatically, it lifts itself into
the vibration safeguard.
Close the platform interlock (if present).
Betriebsanleitung_Hubladebuehnen_EN.book Seite 80 Donnerstag, 15. August 2019 4:04 16
