Using Stays with your PALFINGER TAIL
LIFTS ltd. under run device
It is not a requirement to fit stays to the
under run bar device for it to comply with the
latest regulations but stays can be fitted if
desired.

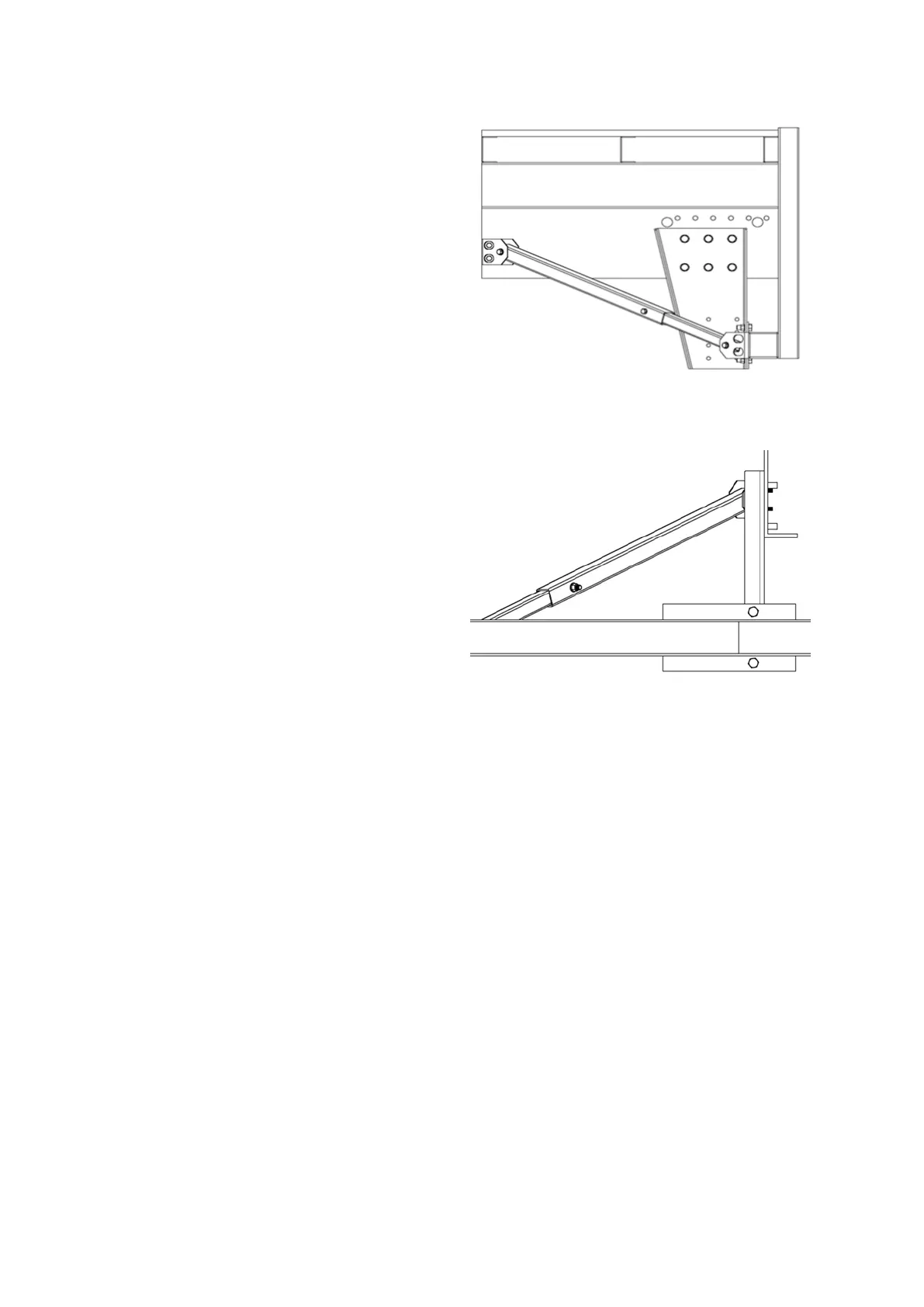

• Fitting universal stays - Position the U-
shaped brackets at the desired position
on the forward face of the under run bar.
Drill through the under run bar and attach
with the bolts provided. Assemble the
telescopic stay and attach to the U-
shaped bracket. Fit other U-shaped
brackets to the opposite end of the
stays and position on the chassis. Adjust
the length of the stay to achieve the
correct alignment of bracket and stay.
Mark the chassis using the bracket as a
template, drill and bolt bracket and stay
into position. Finally drill through the two
stays and secure with a nut and bolt.
