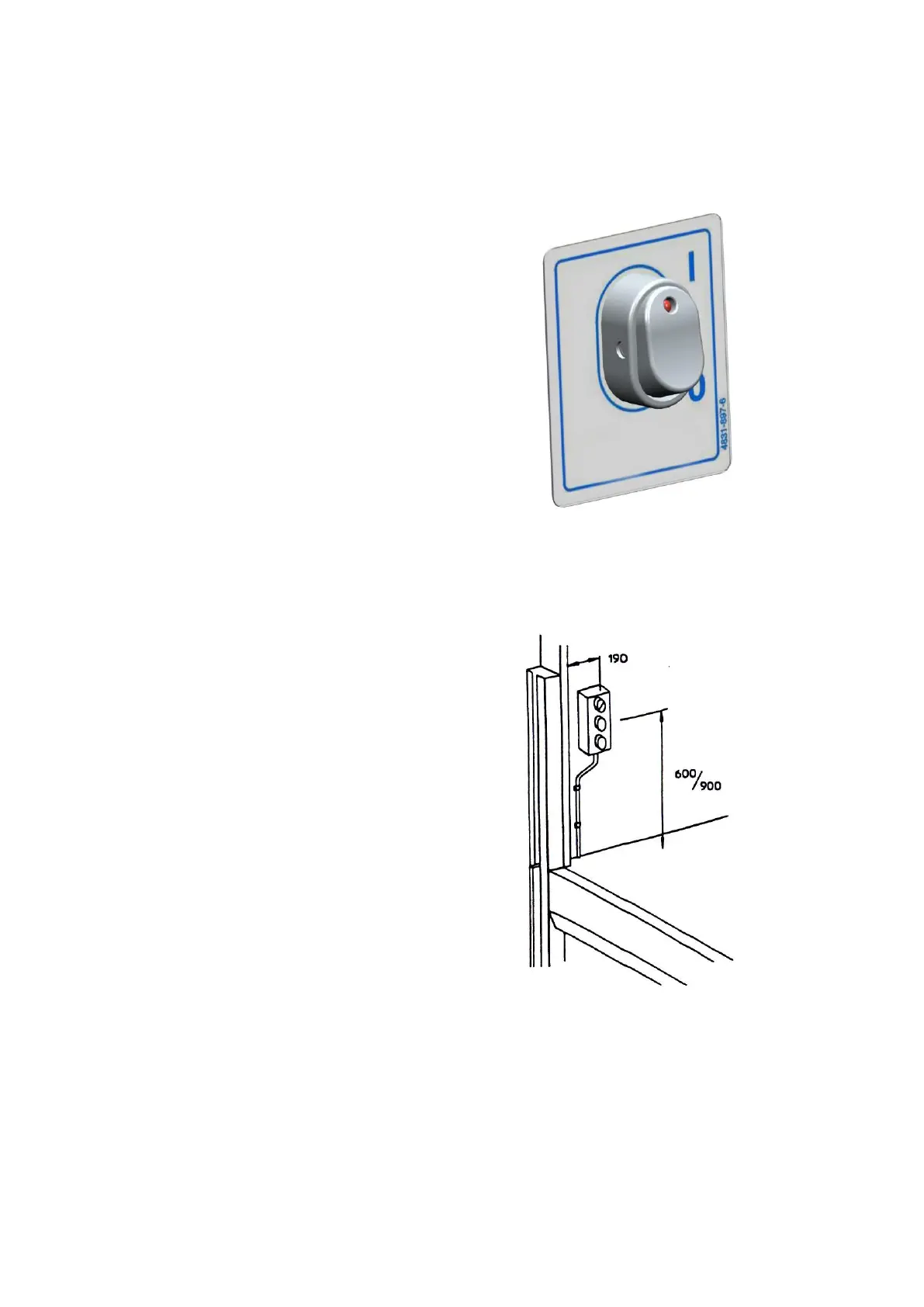

CAB SWITCH
Select a suitable place for the lift isolation
switch on the vehicle dash.
Drill 10 hole through the dash ensuring that
the drill will not damage wiring etc. behind.
Mount the isolation switch.
Wire the switch to the power pack with two-
core cable.
Earth the switch to a suitable point locally
(single pole) or to the power pack motor
(-)ve terminal (double pole).
Fix the isolation switch label to the dash
adjacent to the switch.
INTERNAL SWITCH (OPTIONAL)
Mount the internal switch in the nearside
rear corner of the body. Ensure that:-
1. The switch is protected from
accidental operation.
2. The switch will not interfere with the
passage of goods.
3. The selector switch is mounted at the
top.
