POWER PACK WIRING
The external (2-button) switch, the
internal (3-button) switch and the
isolation switch is wired directly to the
terminal strip on the power pack. (See
wiring diagram page.)
FILL SYSTEM WITH HYDRAULIC OIL
With the platform at ground level, remove
the filler cap from the power pack.
Pour in the oil from the container
supplied, or use squeezable plastic bottle
and pipe, until the level is up to the level
line on the dipstick or up to the bottom of
the fill hole on end fill tanks. Refit the
filler/breather.
Test Operating Cycle

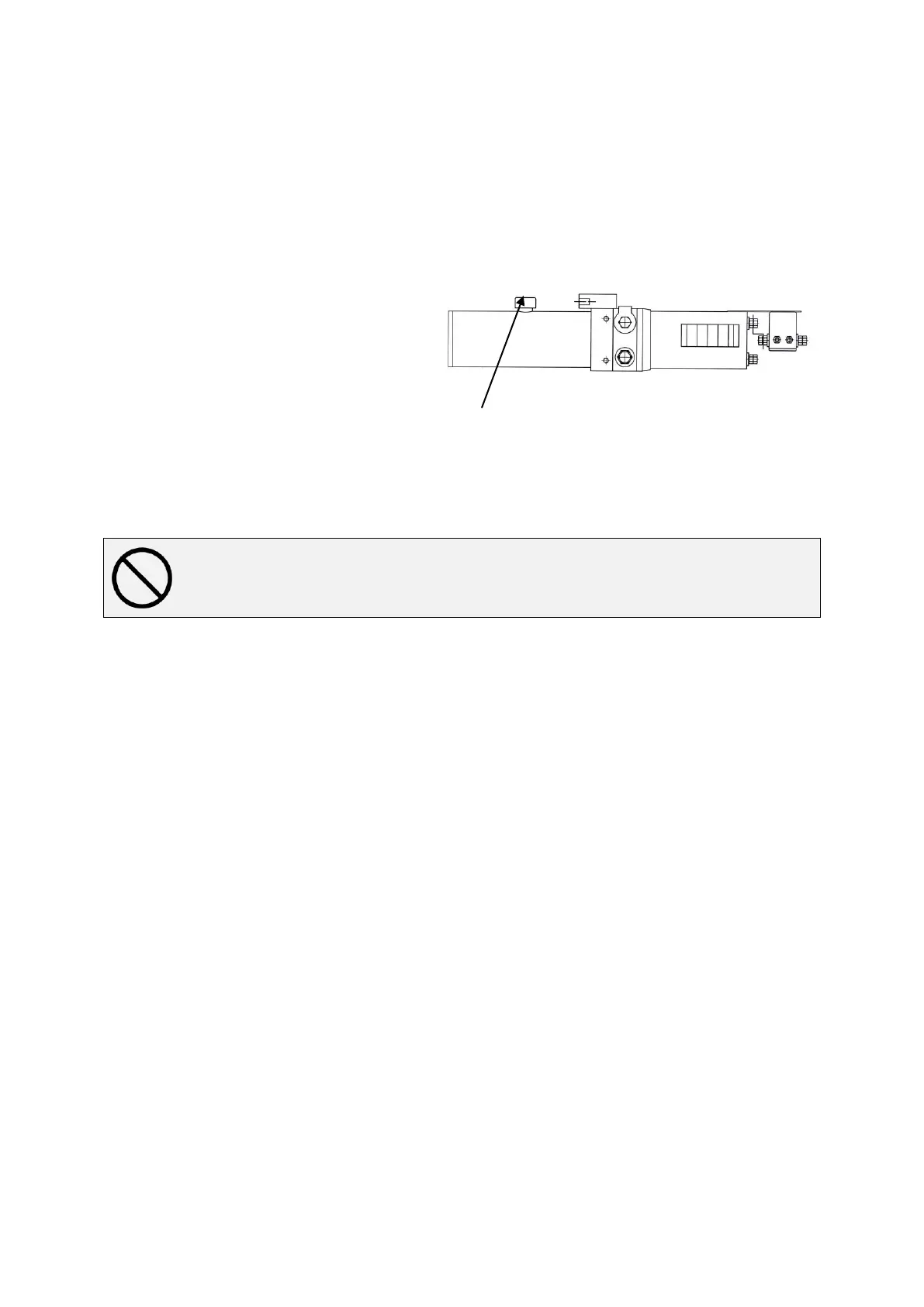

Filler Cap/ Dipstick
(End Filler Cap has no Dipstick)
Do not load the platform in any way during these tests, as at this stage the lift is
only tacked /clamped on.
Lower open platform to ground then raise it to floor level, checking that lift operates freely
and reaches both ground and floor level.
Close the platform at a convenient height and then stow against stops.
LUBRICATE CHAINS
Thoroughly lubricate chains over full length. It is important that this is done AFTER finish painting.
To Next Page
