26

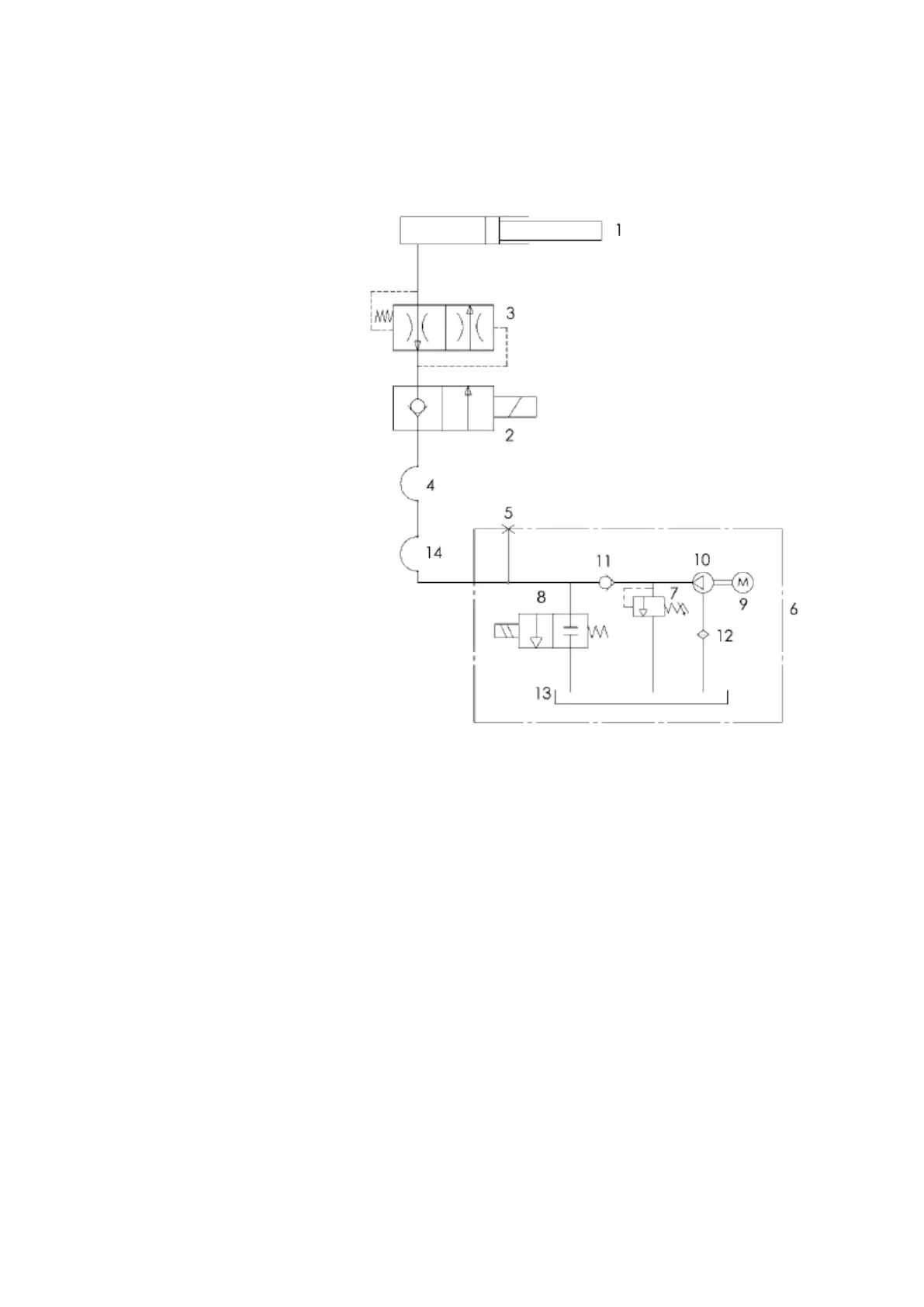

SCHEMATIC HYDRAULIC CIRCUIT
1. RAM
2. RAM VALVE
3. FLOW REGULATOR
CARTRIDGE
4. HOSE
5. PRESSURE GAUGE
PORT
6. POWER PACK
(INCLUDES 7-14)
7. PRESSURE RELIEF
VALVE
8. RELEASE VALVE (12V
OR 24V)
9. MOTOR (12V OR 24V)
10. PUMP
11. NON-RETURN VALVE
12. STRAINER
13. RESEVOIR
14. HOSE
