FOREST CRANE PALMS 840
V 1.03 EN 2012 Palmse Mehaanikakoda LLC 9
4.2 Mounting forest crane to the other manufacturer’s trailer or to any other
machine than Palms forest trailer.
Use the mounting plate (fig. 6) then mounting the loader to the tractor’s frame or trailer
different than Palms. Use mounting plate with thickness not less than 30 mm. Make sure
that there will be enough space at mounting point for service access.

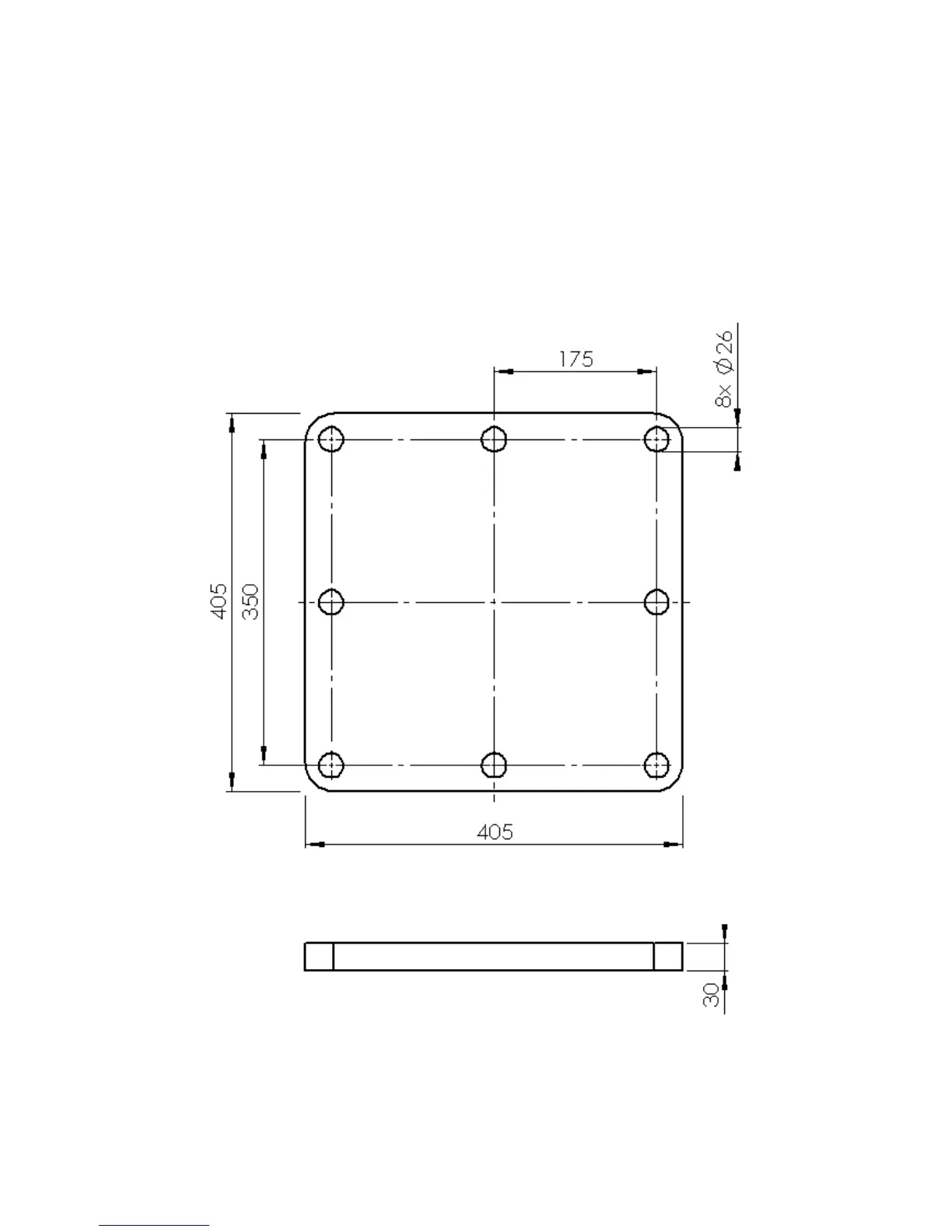

Figure 6. Mounting plate measures
