FOREST CRANE PALMS 840
V 1.03 EN 2012 Palmse Mehaanikakoda LLC 19

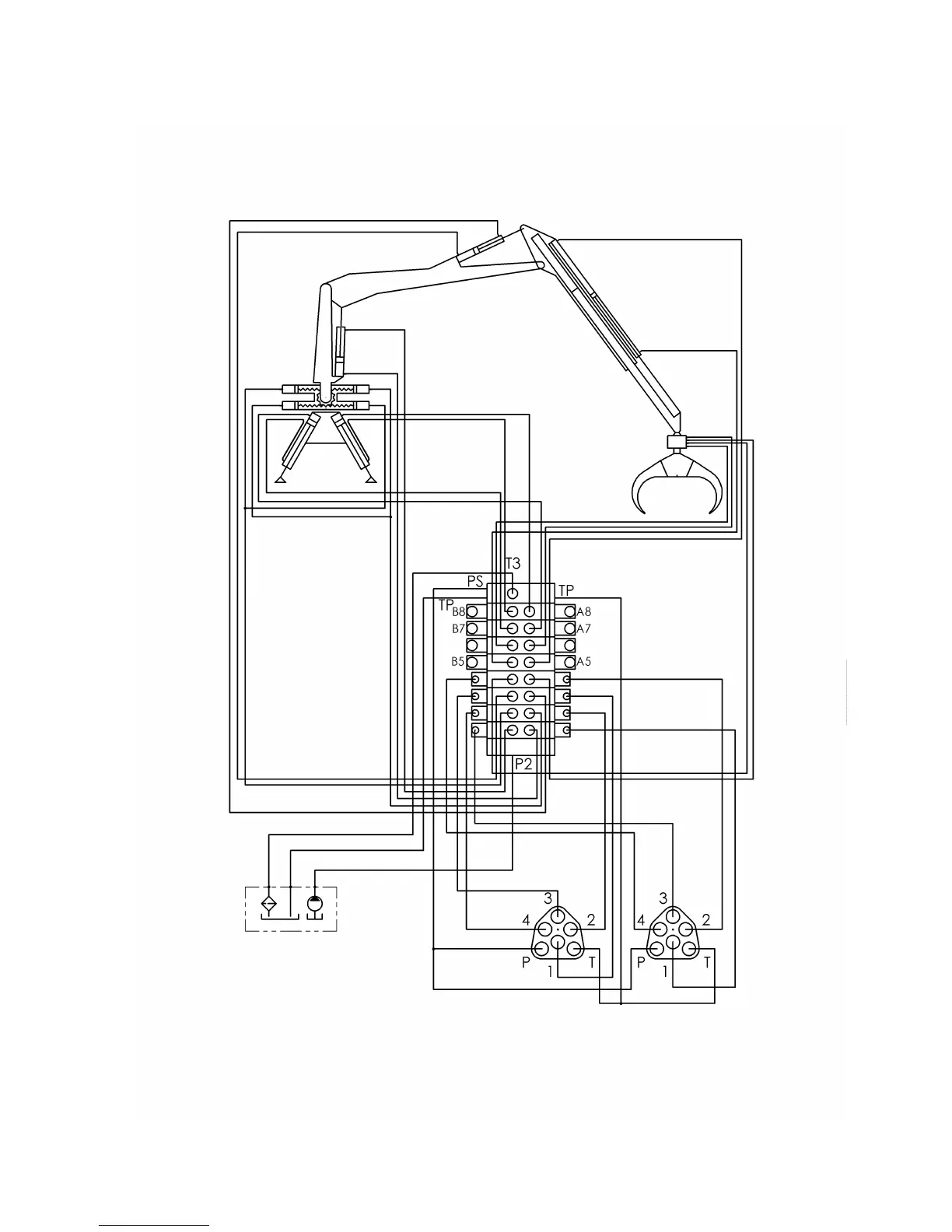

Figure 13. Hydraulic diagram for Parker F130 CF (A13) pilot operated control valve
