INF-20
8.

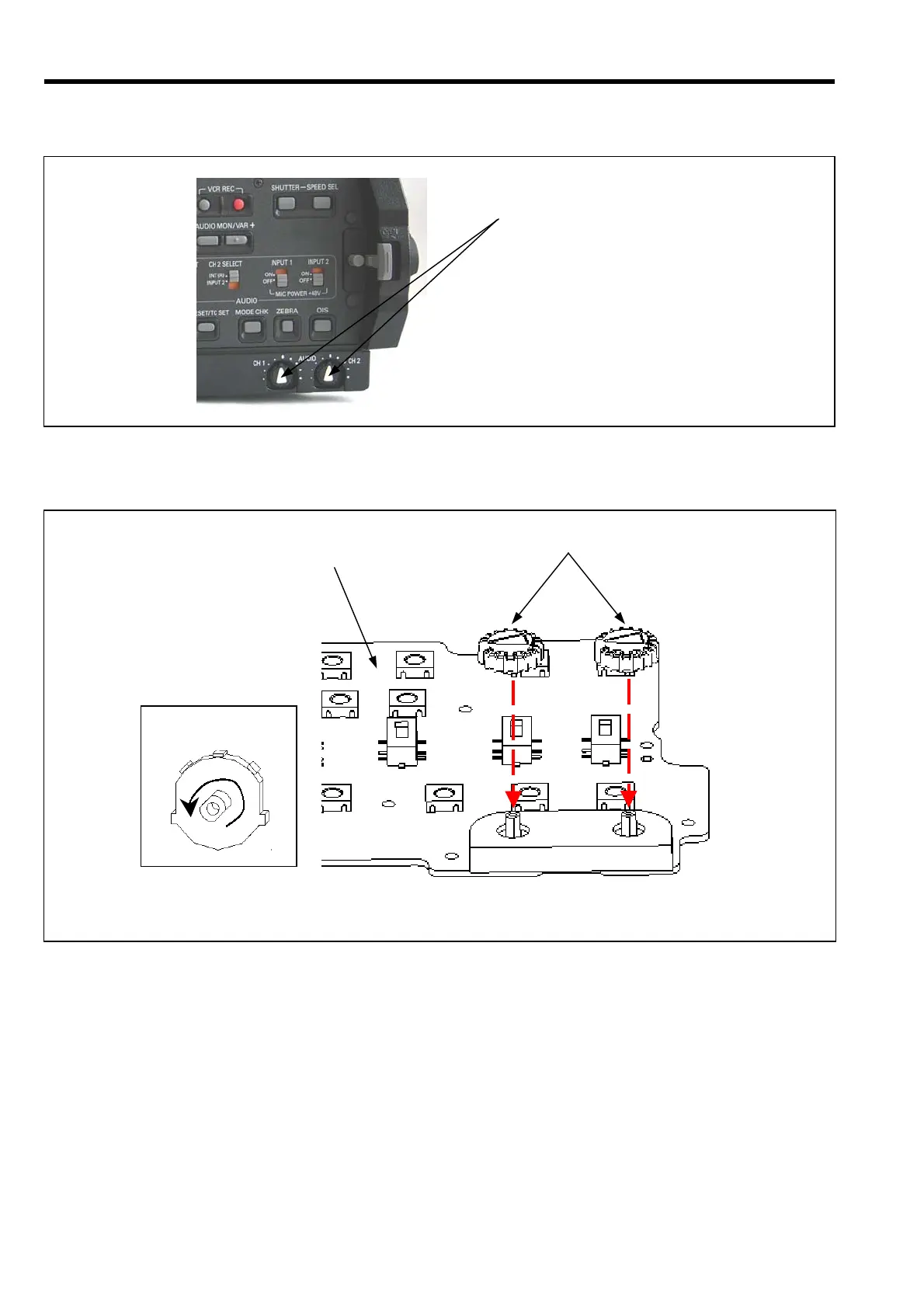

CAUTION WHEN INSTALLING AUDIO CONTROL KNOB
The AUDIO VR is weak against stress. So when the AUDIO Control Knob is removed from the AUDIO VR, it is very
possible that AUDIO VR is broken. Please replace the AUDIO VR by a new one, when you have removed the
AUDIO Control Knob from the AUDIO VR. When installing the AUDIO Control Knob, set its direction as follows.
(Installation of AUDIO Control Knob)
1. Set the AUDIO VR to fully counter-clockwise as shown in figure A.
2. Install the AUDIO Control Knob to AUDIO VR as follows.
AUDIO Control Knob
R SIDE C.B.A.
(Figure A)
AUDIO VR
AUDIO Control Knob
To Next Page
