Panasonic AG-DVX100BP - Removal of Side Case R S Unit

DIS-9

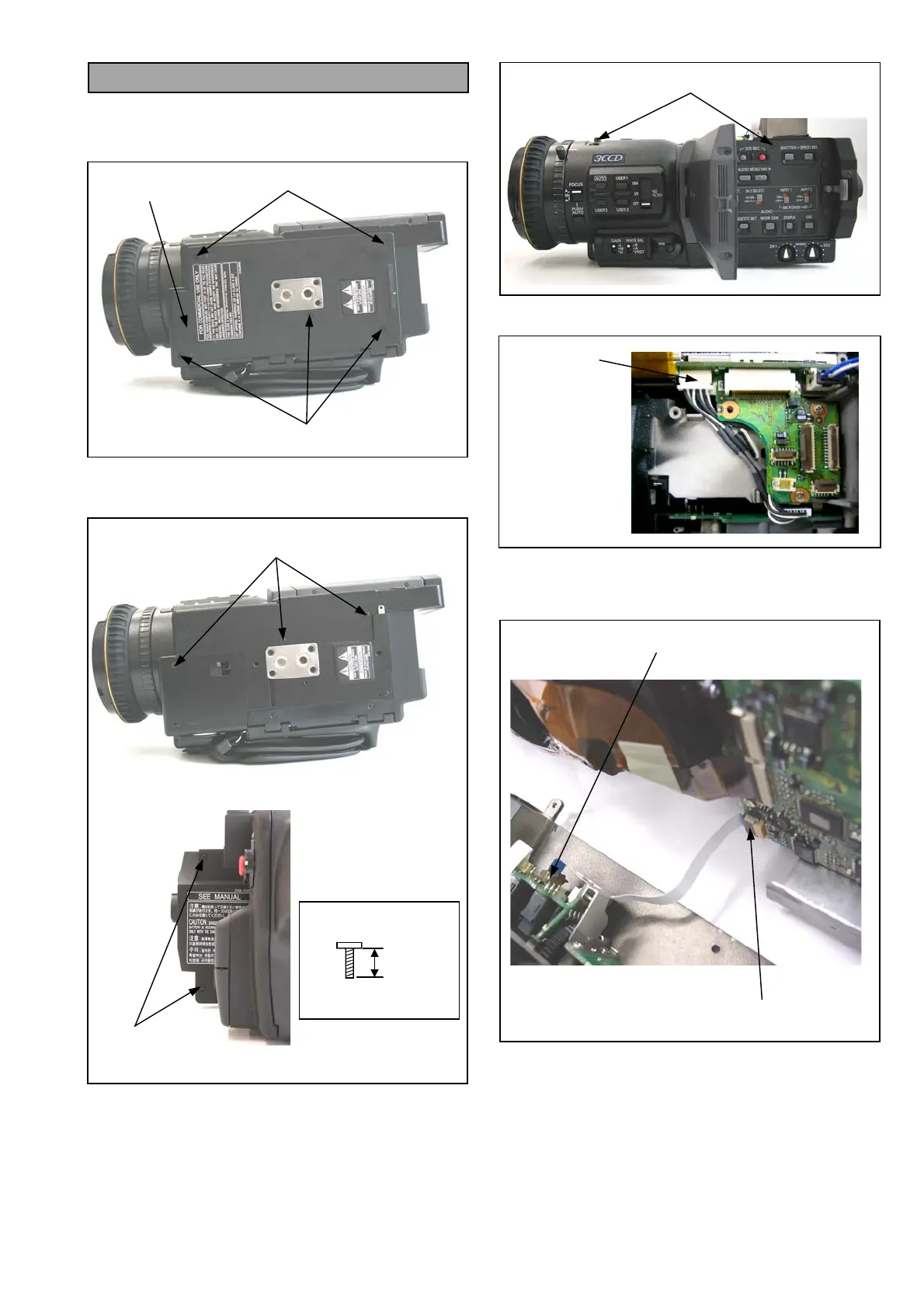

10. Removal of Side Case R S Unit
1. Remove the Handle Unit.
2. Unscrew the 5 screws (N) and remove the Bottom
Cover.
3. Unscrew the 5 screws (O).
4. Unscrew the 3 screws (P).
5. Disconnect a connector P4001 on VTR C.B.A..
6. Disconnect a connector P1002 on CAMERA C.B.A.
(You may disconnect either connector P352 on
CAM OP2 C.B.A. or P1002 is disconnected).
BOTTOM COVER
SCREW (N)
SCREW (N)
SCREW (P)
P352
P1002
BLACK
4mm
SCREW(N),(O) & (P)
SCREW (O)
SCREW (O)
P4001
