Panasonic AG-DVX100BP - Page 40

DIS-5

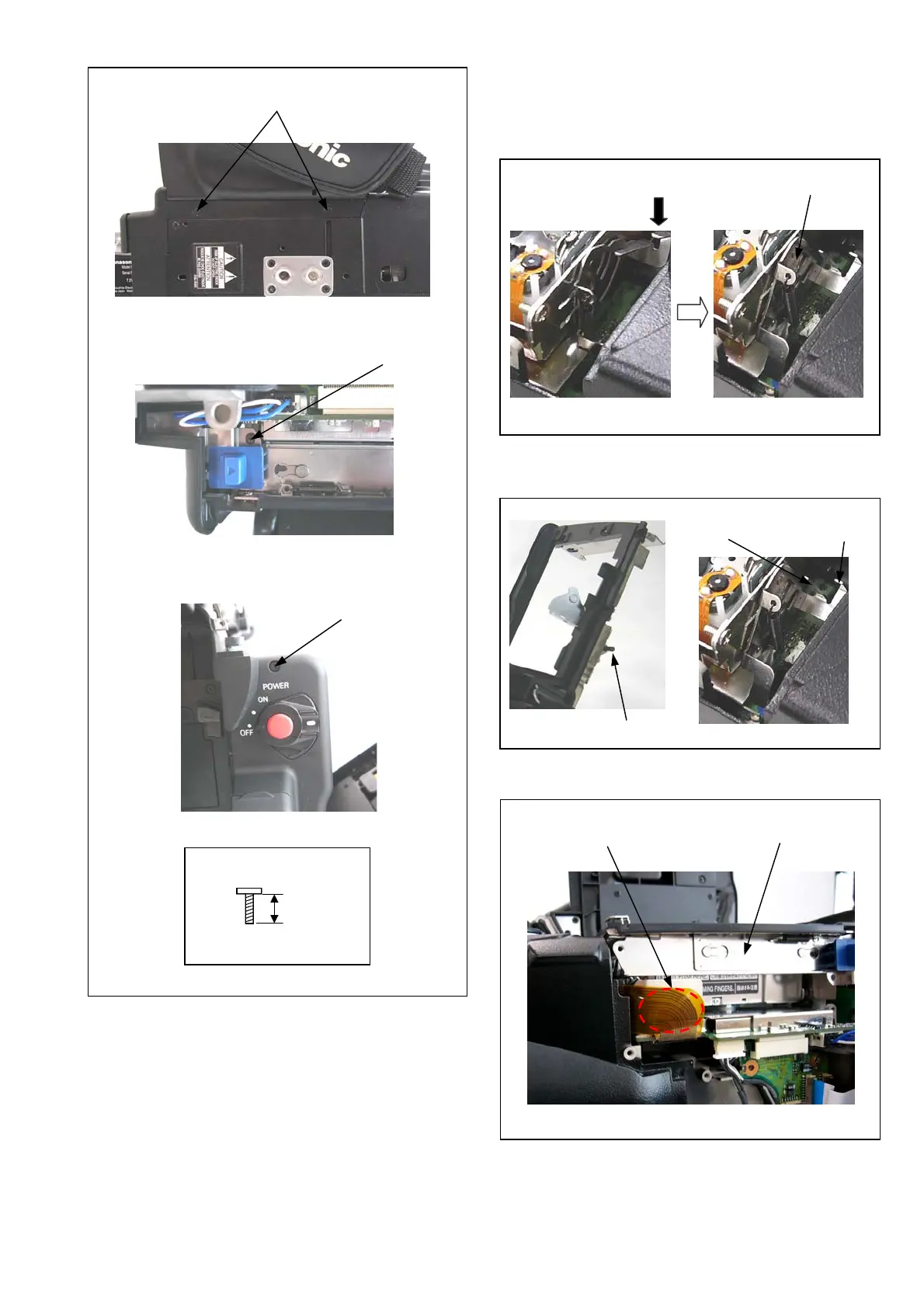

< Note in installation >
1. Arm should be pressed in the direction of an
arrows as shown in figure A, and so that the
position of the SW ARM is put into the state of
figure B.
2. The Grip Unit is installed so that the roller of the
Grip Unit puts between a long arm and short arm.
3. Be careful not to damage the flexible cable as
shown in figure in installation of Grip Unit.
GRIP UNIT
Do not damage
BLACK
4mm
SCREW (E), (F) & (G)
SCREW (G)
SCREW (G)
SCREW (G)
(Figure A)
Arm is pressed in this direction
SW ARM
(Figure B)
Roller
Arm (long)
Arm (short)
