DIS-7
NOTE: The connector P2201, 2202, 2203 and 2204
are not lock types. Please pull out flexible
cable with a pick etc..
NOTE: Even if VTR C.B.A. is not exchanged to new
one, the calendar setting is reset only by
removing it. Please set it again by a setting
menu.

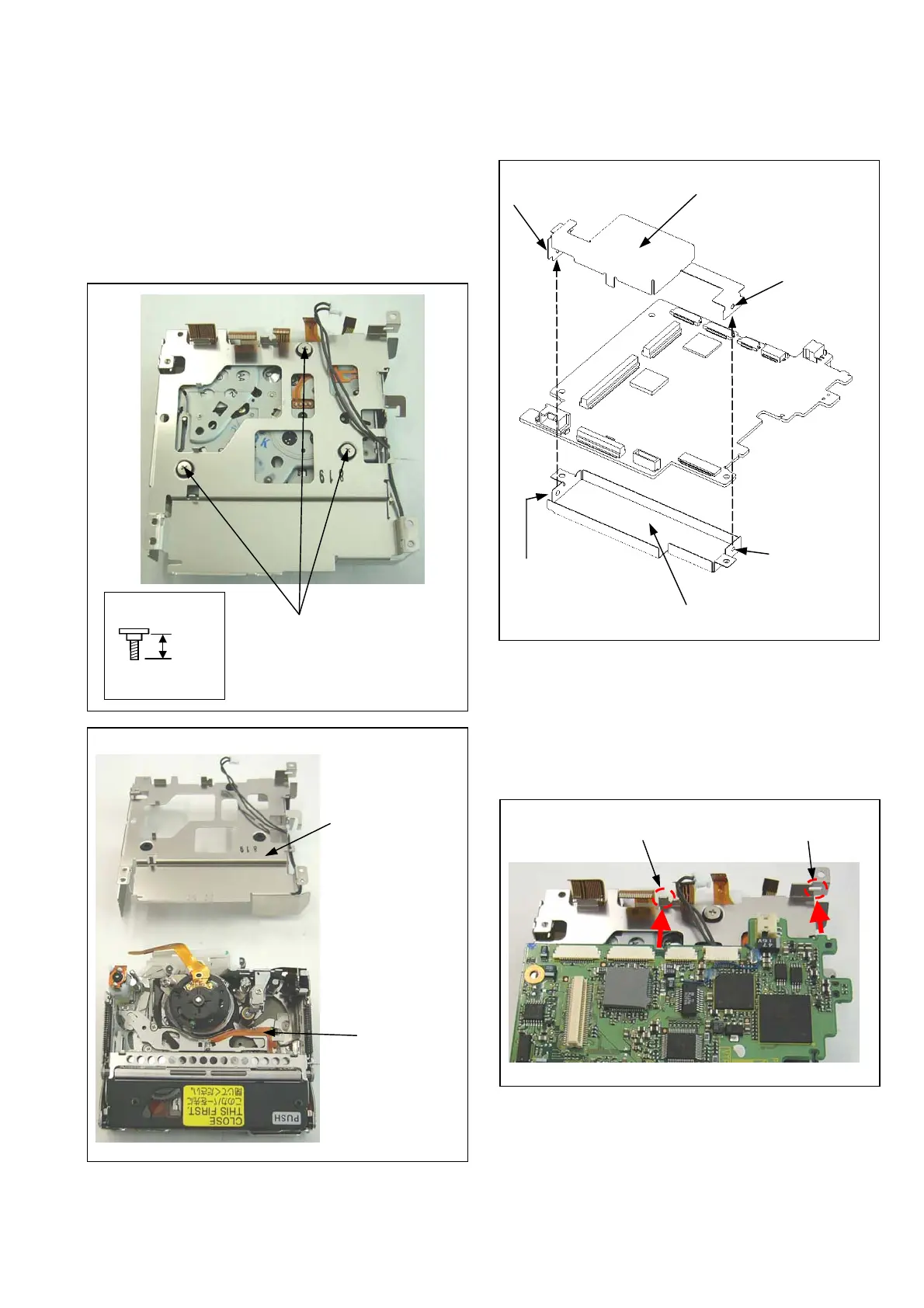

7. Unscrew the 3 screws (J) and remove the
Mechanism Unit from Mech. Attachment Frame
Unit.
< Note in installation of VTR C.B.A.>
After install SHILED CASE (A) to VTR C.B.A., install
the SHILED CASE (B) to be puts projection part of
SHIELD CASE (A) in the hole part of SHILED CASE
(B).
Please insert the cuts and lacks part of VTR C.B.A. as
shown in figure to hole (A) of Mech. Attachment Frame
Unit.
Please install VTR C.B.A. so that the cuts and lacks
part (B) of the Mech. Attachment Frame Unit may
correspond to the cuts and lacks part of VTR C.B.A..
Mechanism
Unit
Mech. Attachment
Frame Unit
SILVER
4mm
SCREW (J)
SCREW (J)
SHIELD CASE (A)
HOLE
(inside)
HOLE
(inside)
PROJECTION
(outside)
SHIELD CASE (B)
PROJECTION
(outside)
cuts and lacks part (B)
Hole (A)
To Next Page
