Panasonic CS-S18TKV Service Manual

125

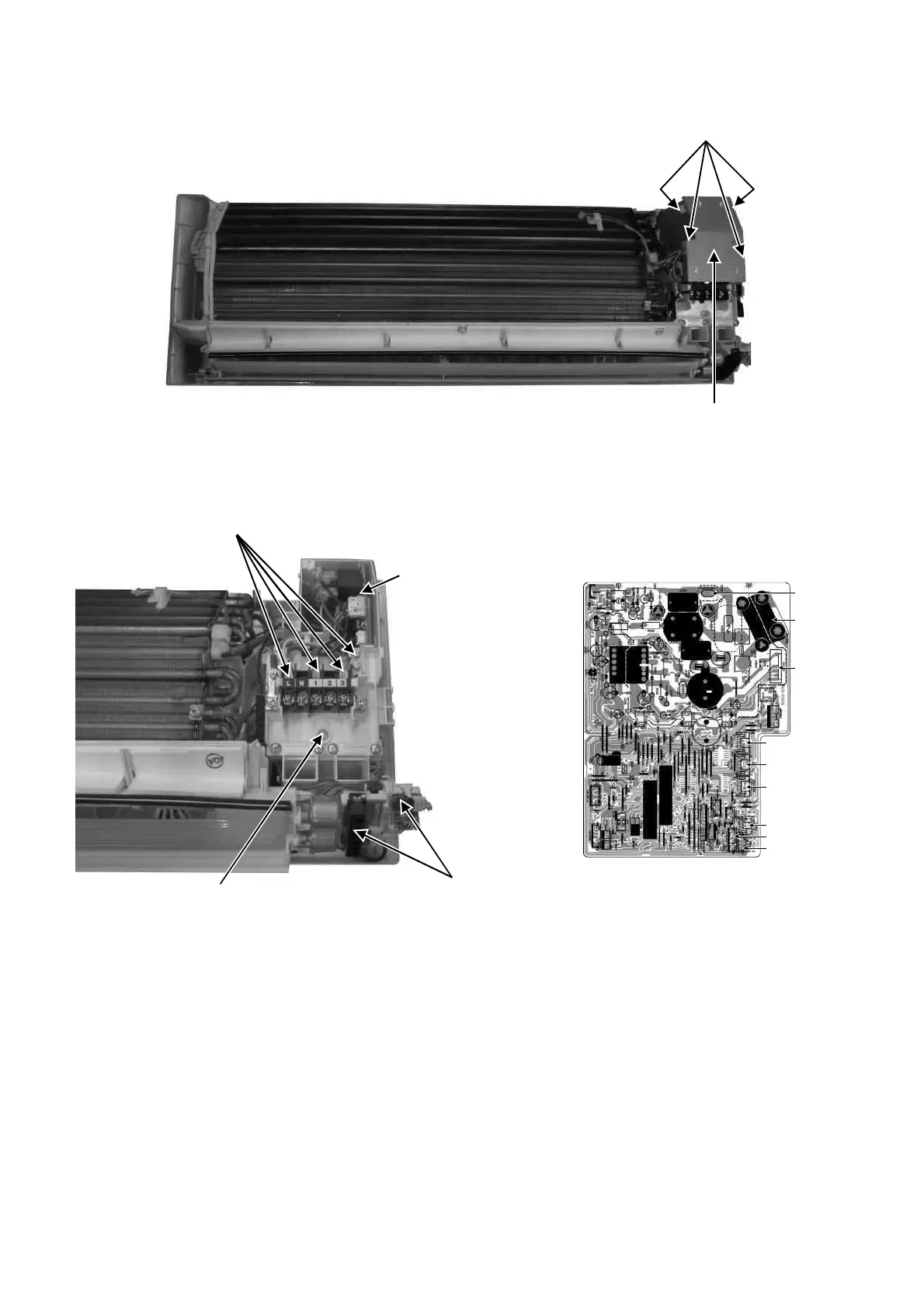

16.1.1.2 To Remove Electronic Controller
Figure 2
Figure 3 Figure 4
4. Remove control board
cover by releasing 4 hooks.
4Hooks(Leftand
right hand side)
CN-FM
RY-PWR
Connector
(Black and Brown)
AC303
(WHT)
CN-STM1
CN-STM2
CN-STM3
CN-CLN
CN-TH
CN-MSENS
9. Detach all connectors as labelled from the
electronic controller. Then pull out the
electronic controller gently.
6. Detach CN-DISP and CN-RCV
connectors from indicator complete.
5. Detach the ter
m
inal wire (Brown), ter
m
inal wire (Black),
terminal wire (Red) and earth wire screw.
7. Remove screw to remove
terminal board complete.
8. Pull out the
electronic
controller halfway.
