10.2 Indoor Unit

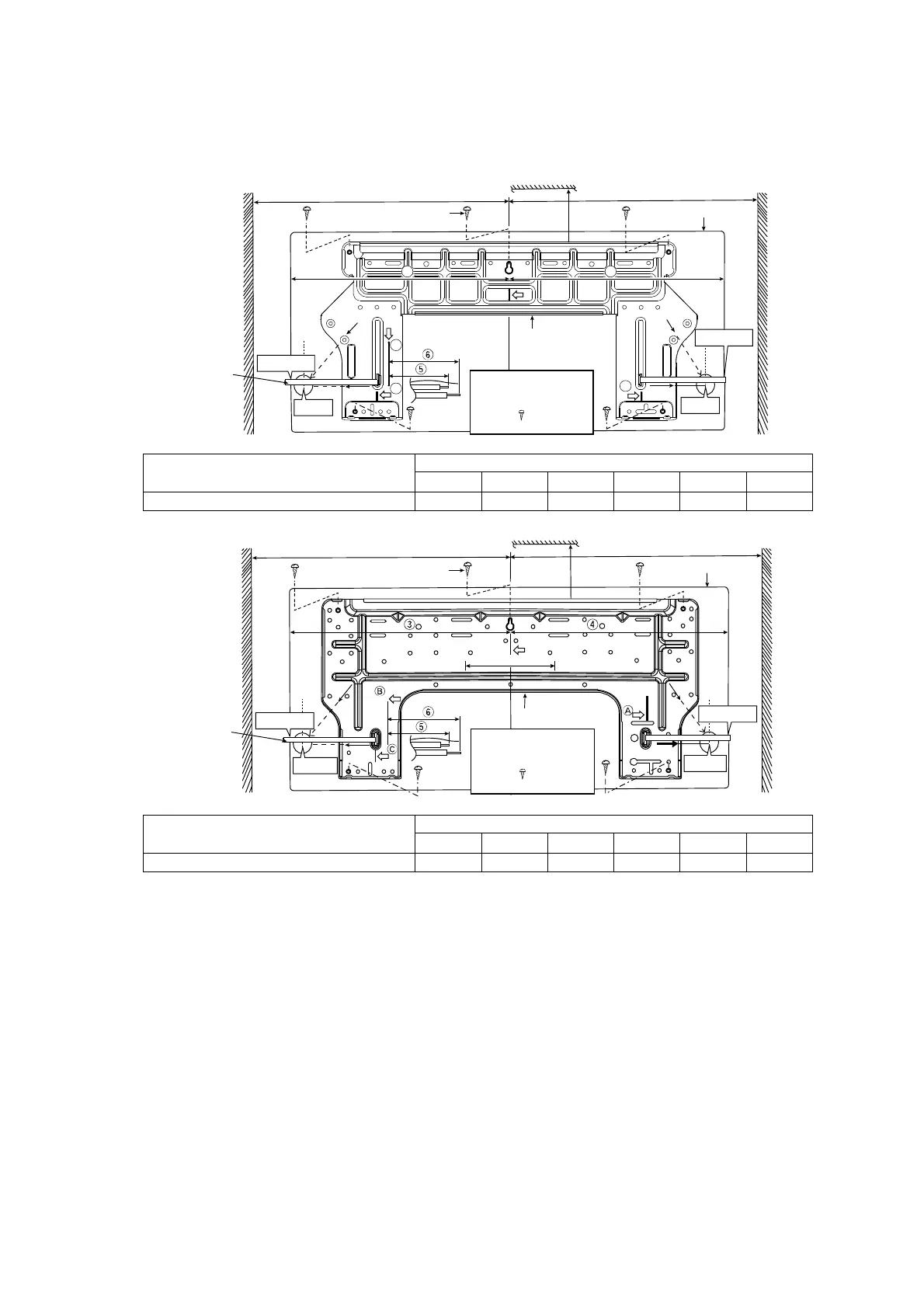

10.2.1 How to Fix Installation Plate
The mounting wall shall be strong and solid enough to prevent it from the vibration.
Model
Dimension
1 2 3 4 5 6
S9***, S12*** 515 mm 85 mm 460 mm 460 mm 43 mm 95 mm
Model
Dimension
1 2 3 4 5 6
S18***, S24*** 615 mm 95 mm 560 mm 560 mm 270 mm 320 mm
The center of installation plate should be at more than 1 at right and left of the wall.
The distance from installation plate edge to ceiling should more than 2.
From installation plate center to unit’s left side is 3.
From installation plate center to unit’s right side is 4.
○
B : For left side piping, piping connection for liquid should be about 5 from this line.
: For left side piping, piping connection for gas should be about 6 from this line.
1. Mount the installation plate on the wall with 5 screws or more (at least 5 screws).
(If mounting the unit on the concrete wall, consider using anchor bolts.)
o Always mount the installation plate horizontally by aligning the marking-off line with the thread and using
a level gauge.
2. Drill the piping plate hole with ø70 mm hole-core drill.
o Putting measuring tape at position as shown in the diagram above.
The hole center is obtained by measuring the distance namely 128 mm for left and right hole
respectively. Another method is intersection point of arrow mark extension.
The meeting point of the extension arrow mark is the hole center position.
o Drill the piping hole at either the right or the left and the hole should be slightly slanting to the outdoor
side. (refer to 10.2.2)
3 4
B
A
C
Ceiling
Wall Wall
Installation plate
1
2
screw
More than 1
More than 1
Measuring
Tape
Indoor unit
266 mm
128 mm
266 mm
128 mm
More
than 2
PIPE
HOLE
CENTE R
PIP E
HOLE
CENTER
128mm TO
PIP E HOLE
CENTER
128mm TO
PIPE HOLE
CENTE R
For best strength of
INDOOR unit installation,
it is highly recommended
to locate “
” at 5 position
as shown.
Wall
More than 1
C
eili
n
g
Wall
More than 1
2
screw
More
than 2
128 mm
128 mm
128 mm
266 mm
266 mm
M
easuring
T
ape
Installation plate
1
For best strength of
INDOOR unit installation,
it is highly recommended
to locate “
” at 5 position
as shown.
