WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
16.2 CS-S18TKV CS-S24TKV CS-S28TKV
16.2.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

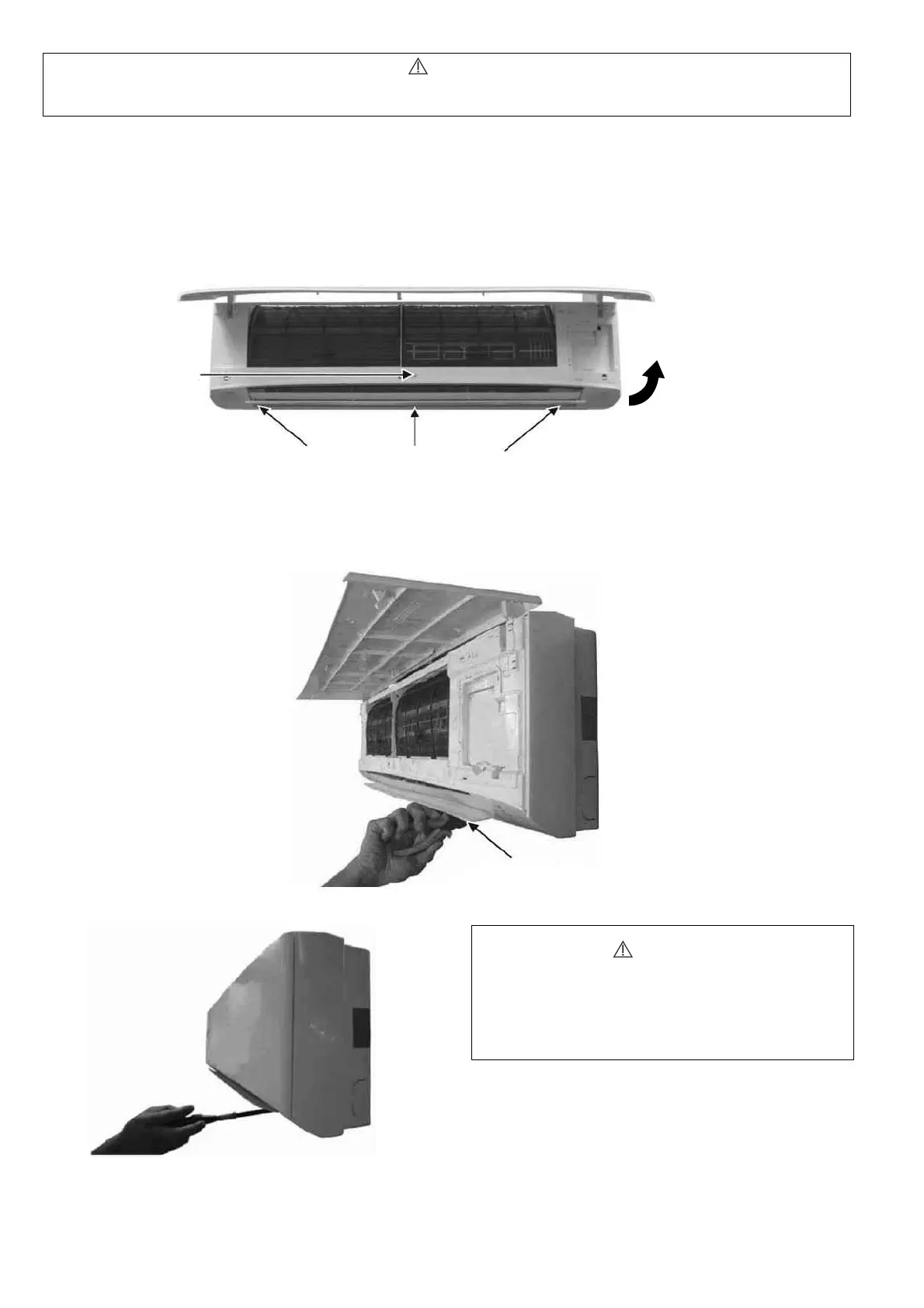

16.2.1.1 To Remove Front Grille
Figure 1
16.2.1.2 Caps Removal
CAUTION
a. Use a manual screw driver with at least 150 mm shaft
length. Do not use a hand drill type.
b. Slightly tilt the screw driver handle downward so that the
shaft does not touch the flap. Be careful not to scratch the
flap while undoing the screws.
1. Remove 3 caps and 3 screws at the
bottom of front grille.
2. Remove 1 screw at the
middle of front grille.
3. Hold both sides of the front grille
and gently remove it by pulling u
p
and toward yourself.
Use long nose pliers
to pull out the caps.
